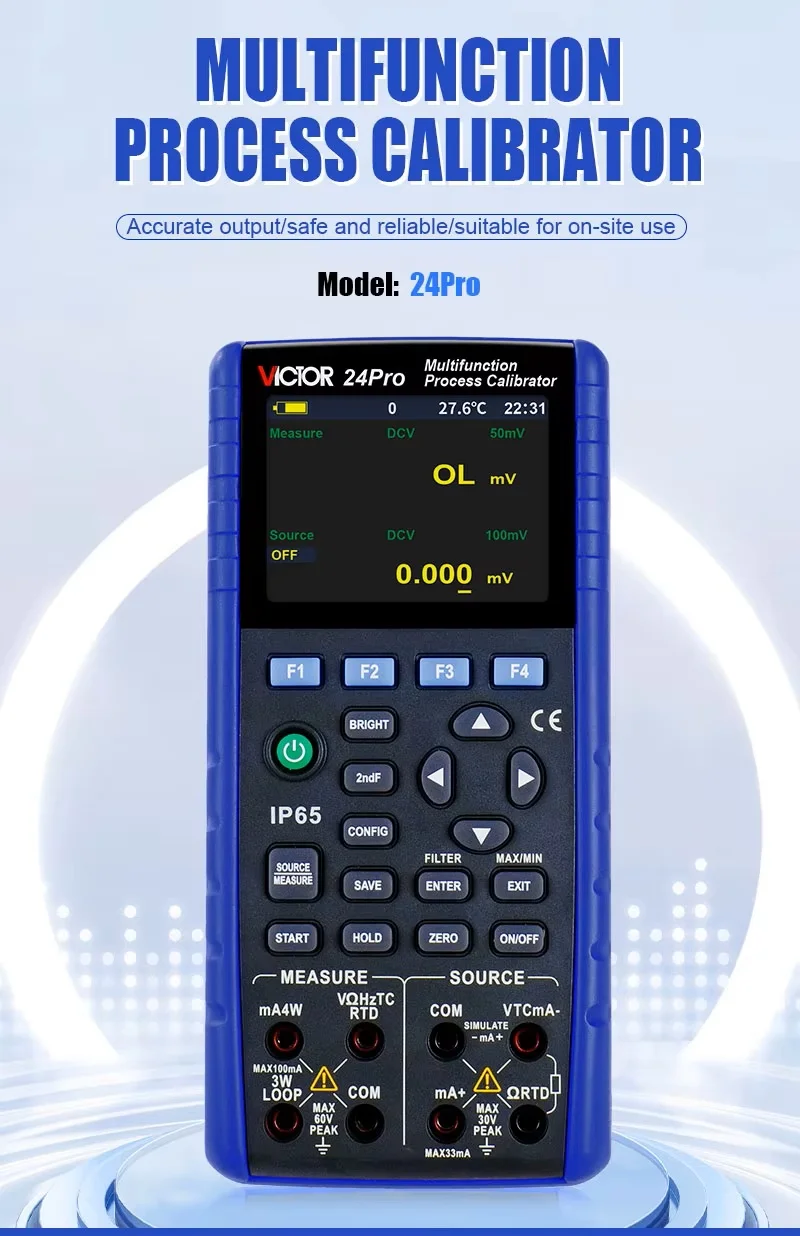

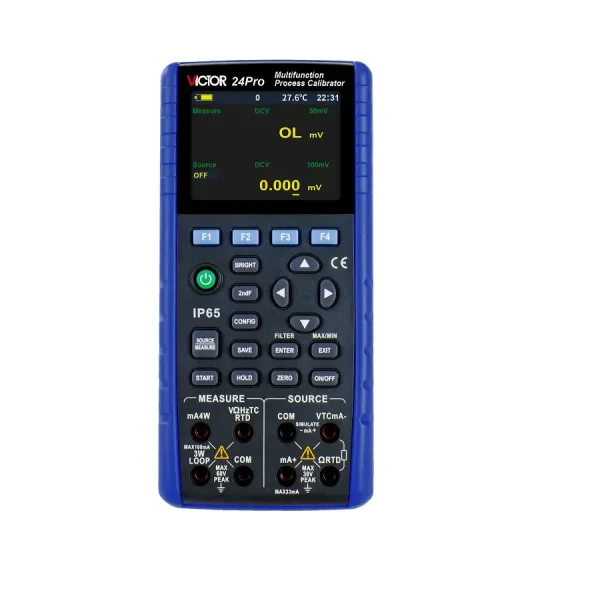

2026 New Multifunction Process Calibrator: accuracy of 0.01% Measure & Source with IP65 Rating VICTOR 24Pro

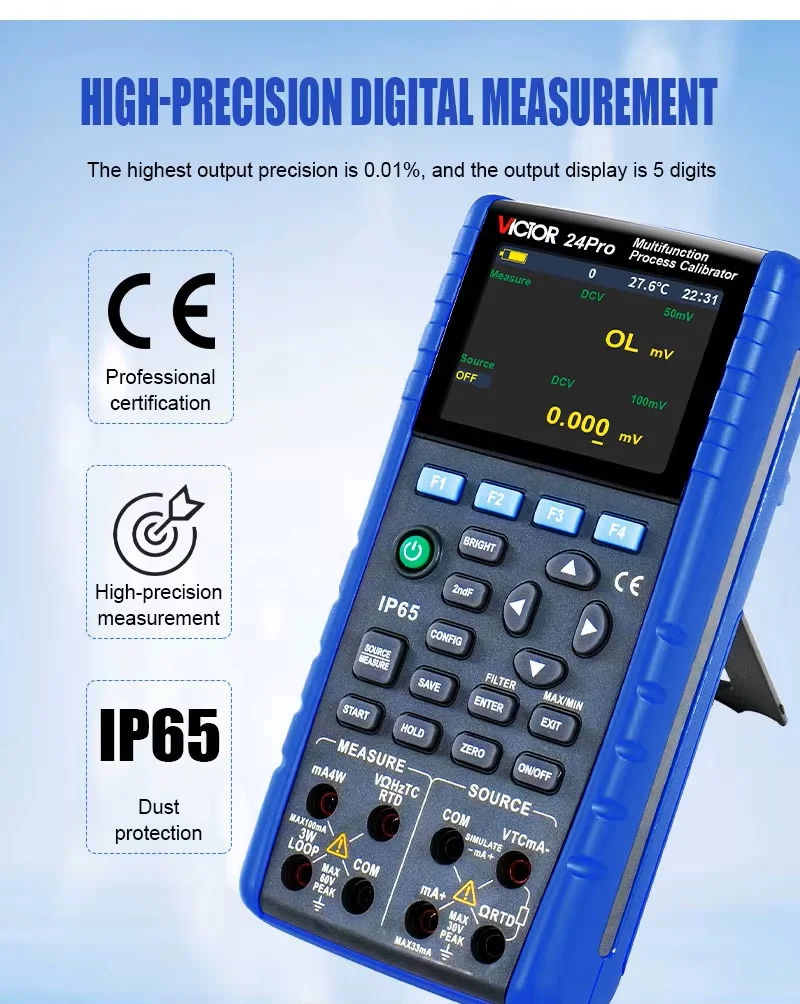

1. Unmatched High Precision for Critical Applications (0.01% Accuracy)
At the core of the VICTOR 24Pro is its exceptional measurement and sourcing accuracy of 0.01%. For process engineers and instrumentation technicians, precision is non-negotiable. This calibrator ensures that your readings for DC voltage, current loops (mA), resistance, and temperature sensors (RTD/TC) are extremely reliable. It features a temperature co-efficiency of just 0.1 × basic accuracy per °C, meaning that even when working in fluctuating ambient temperatures, the device maintains outstanding stability. Whether you are calibrating a PLC input card, validating a temperature transmitter, or troubleshooting a pressure transducer, the 24Pro provides the confidence of laboratory-grade accuracy in a handheld tool.

2. Comprehensive Measure and Source Functions
The VICTOR 24Pro is a true 2-in-1 toolkit, eliminating the need to carry separate meters and signal generators.

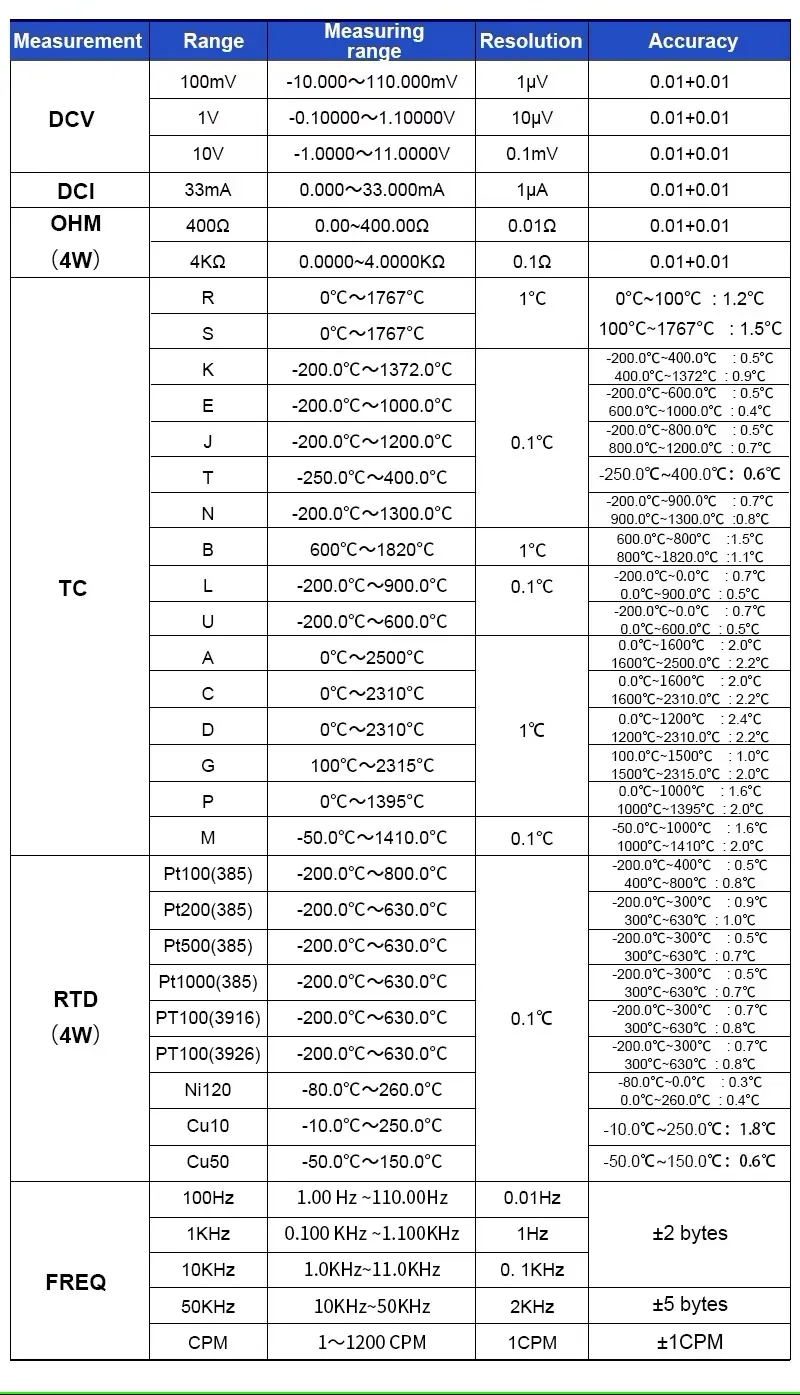

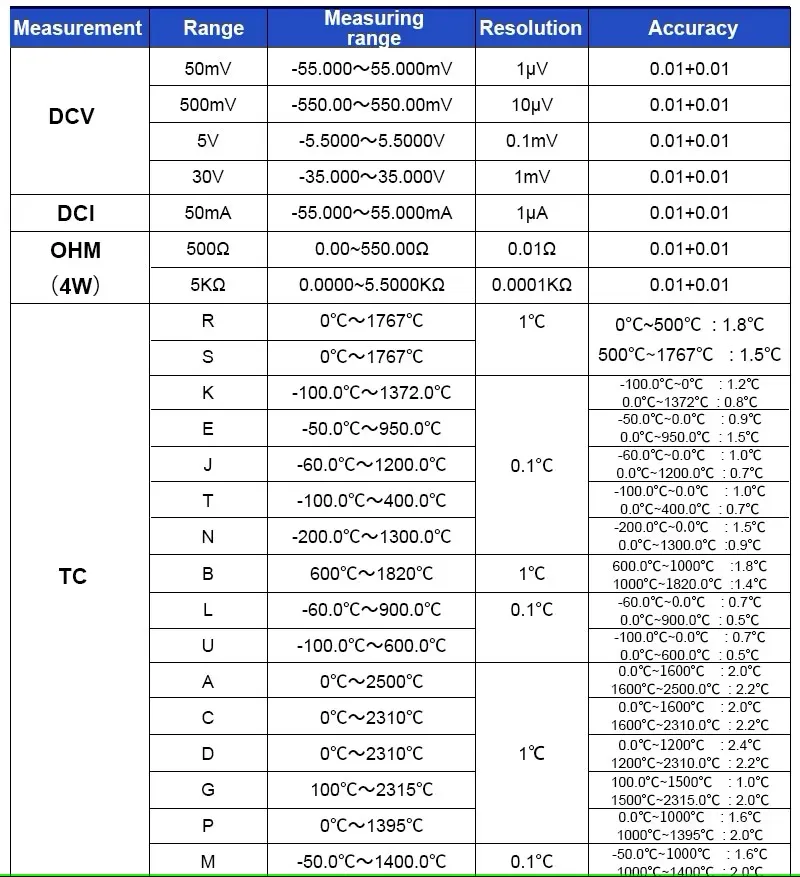

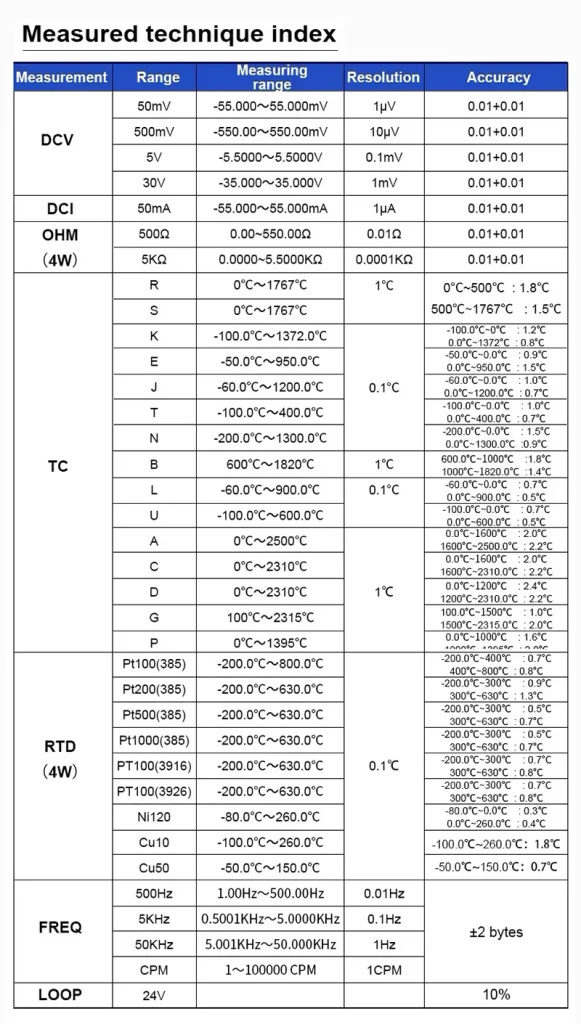

• Measure Mode: Read DCV (up to 50mV/100mV ranges), mA (with loop power), RTDs (Pt100, Pt200, Pt500, Pt1000, Ni120, Cu50), Thermocouples (with internal RJC), and Frequency (Hz, KHz, CPM). The mA terminal includes 100mA/250V fast-melt fuse protection, safeguarding the device against accidental overcurrent.

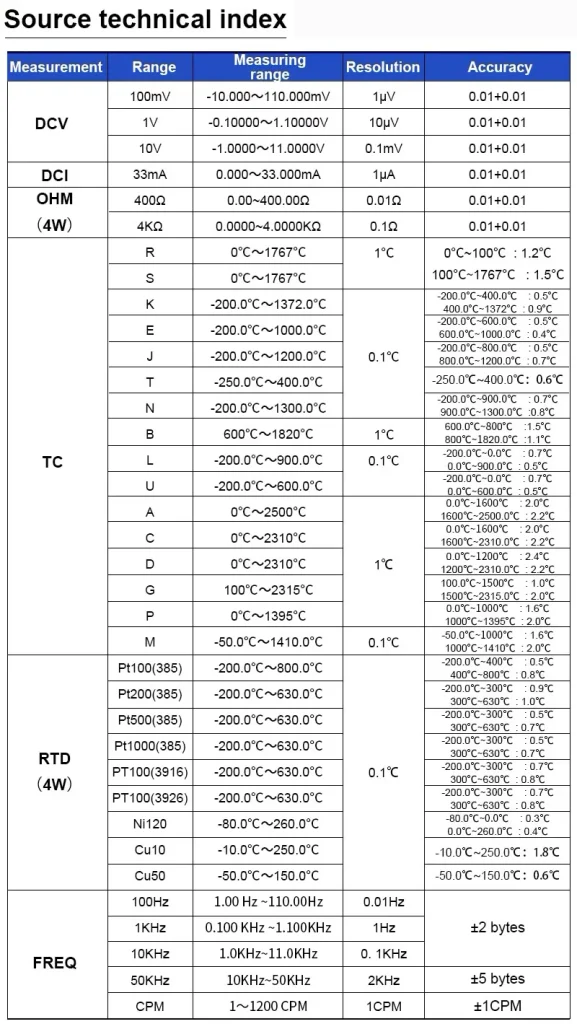

• Source Mode: Simulate 0.000mV to 100mV DCV, source precise mA signals, and simulate RTD/TC outputs to test valve positioners or recorders. It also outputs frequency signals from 1Hz to 50KHz and CPM for flow meter simulation.
• Loop Power Supply: The built-in 24V circuit power supply allows you to power transmitters in the field while simultaneously measuring their 4-20mA output—a critical feature for loop checks without needing an external power supply.

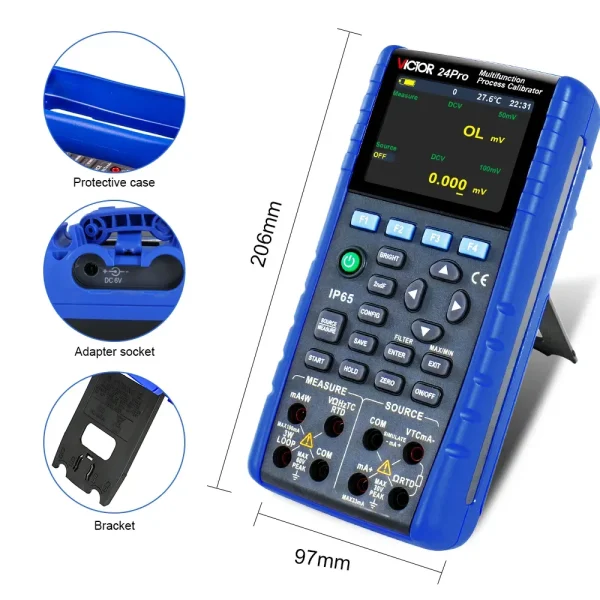

3. Built for the Field: IP65 Rugged Design
Industrial environments are tough—full of dust, moisture, and the risk of drops. The VICTOR 24Pro is engineered to survive. With an IP65 rating, it is completely dust-tight and protected against low-pressure water jets from any direction. The robust housing is also shockproof and dustproof, ensuring the internal components stay safe on a construction site or in a chemical plant. The “Low Pressure Tips” feature on the display alerts users to potential connection issues, while the automatic shut-down function conserves battery life during long shifts.

4. Exceptional RTD and Thermocouple Support
The 24Pro supports a wide array of temperature sensors, making it invaluable for HVAC and thermal processing.

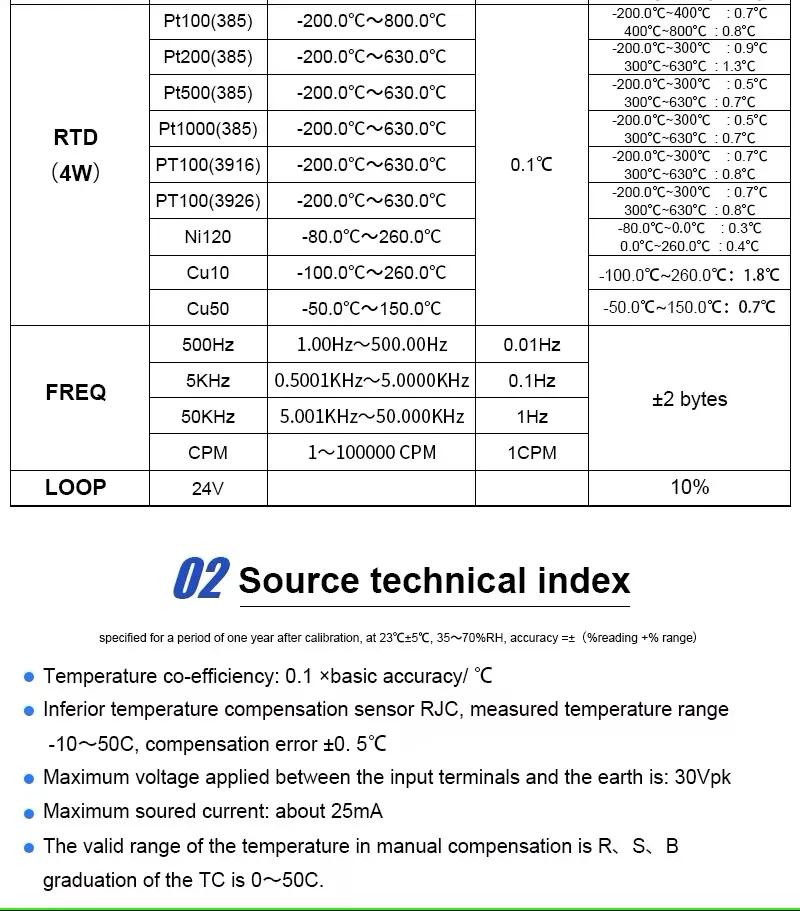

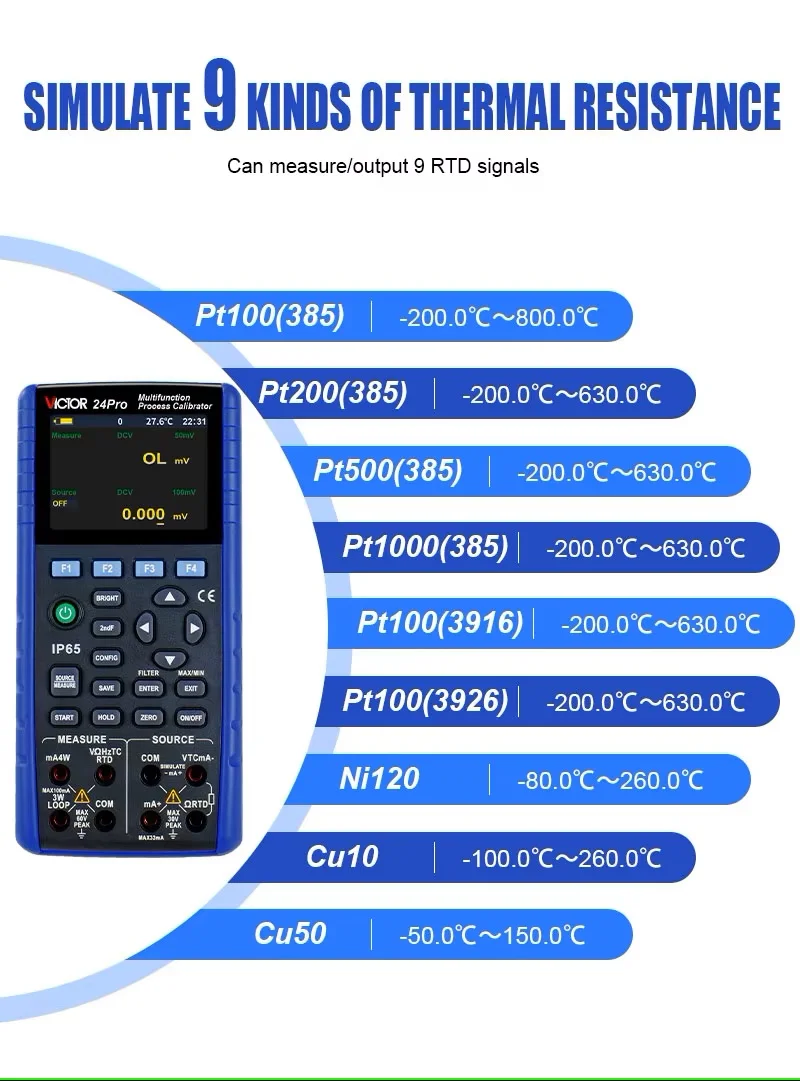

• RTDs: Supports Pt100/Pt200/Pt500/Pt1000 (385 & 3916 curves), Ni120, Cu10, and Cu50 covering ranges from -200°C to 800°C.
• Thermocouples: Includes internal cold junction compensation (RJC) with an error of just ±0.5°C, and manual compensation for R/S/B types (0-50°C range). This allows for precise simulation of temperature sensors without needing an ice bath.

5. User-Centric Design for Efficiency

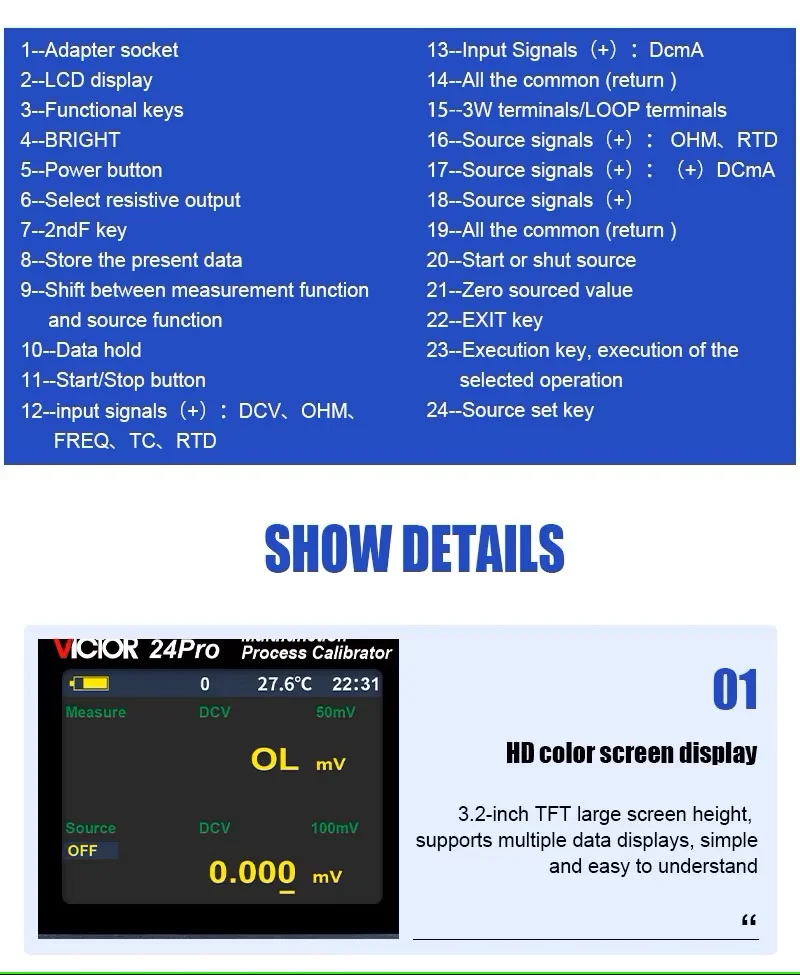

Time is money in maintenance. The VICTOR 24Pro features a large digital screen display that is easy to read in dim control rooms or bright sunlight. Key functions are laid out logically:

• Data Storage & Hold: Capture critical measurements for reporting or troubleshooting. Use the HOLD function to freeze readings, and the MAX/MIN function to track signal fluctuations over time.
• Filter Function: Reduces noise on unstable signals, giving you a clean, stable reading on noisy process loops.

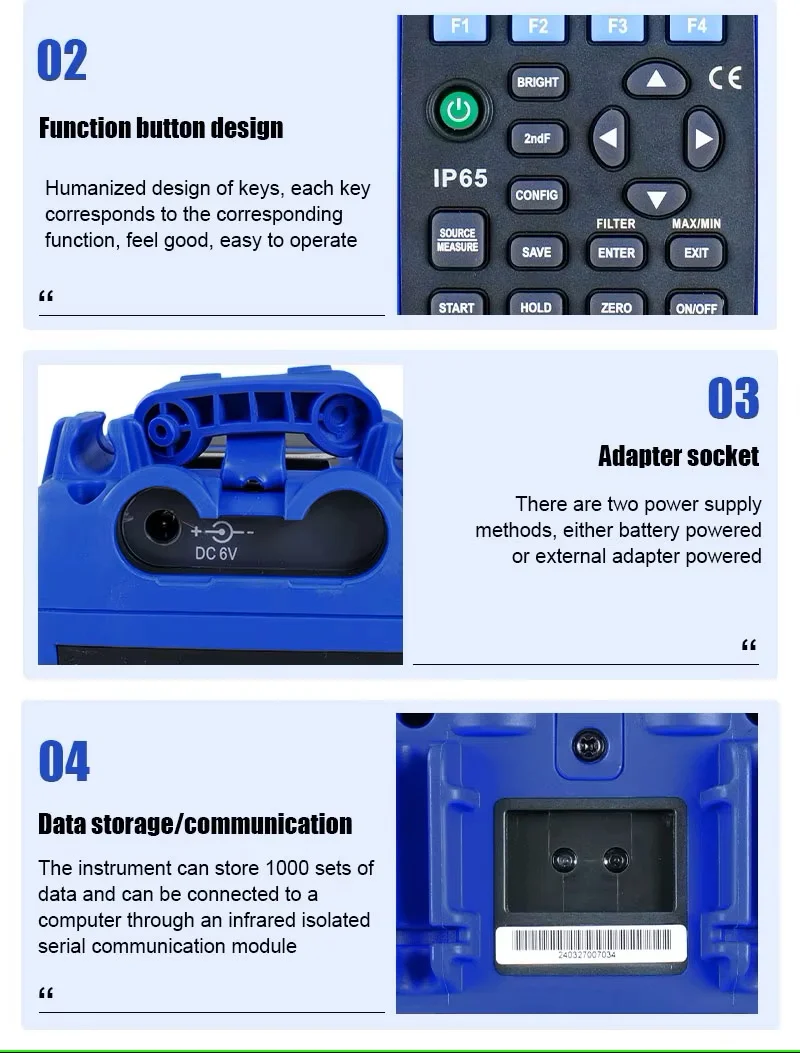

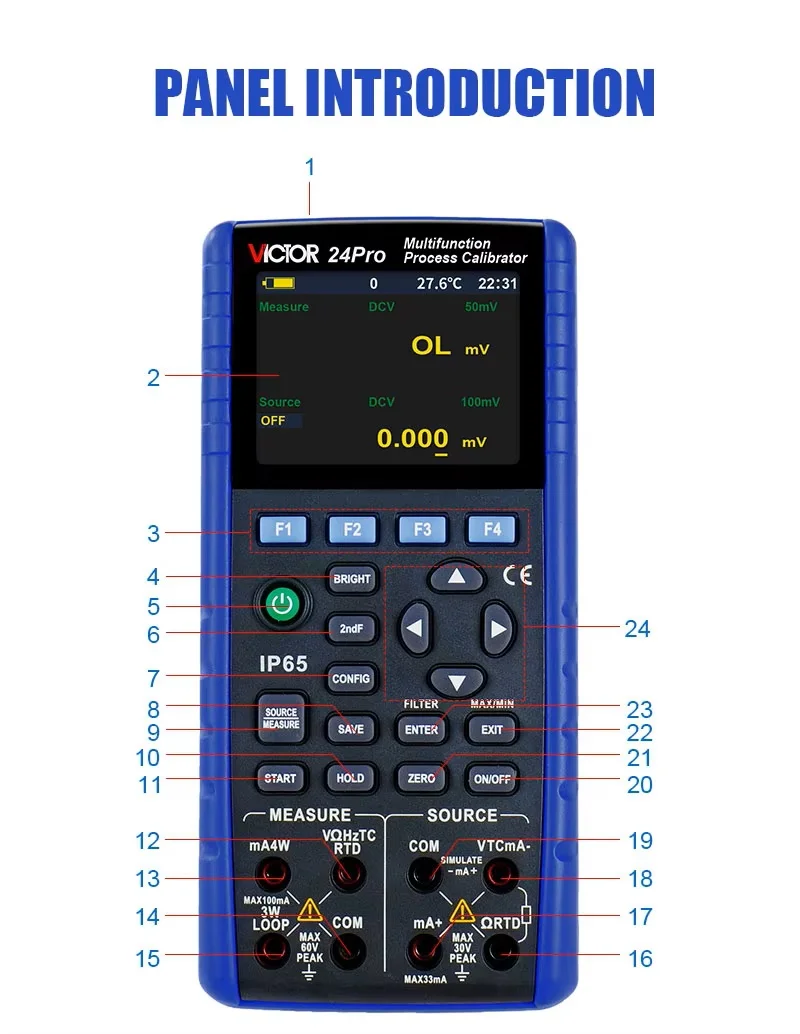

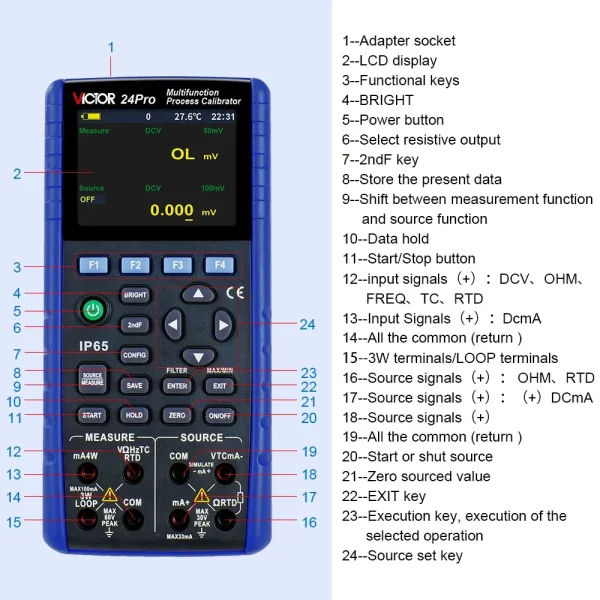

• Intuitive Interface: Dedicated MEASURE and SOURCE keys separate functions logically, preventing operator error. The BRIGHT/CE key and configurable F1-F4 keys make navigation fast.

6. Advanced Electrical Safety and Protection

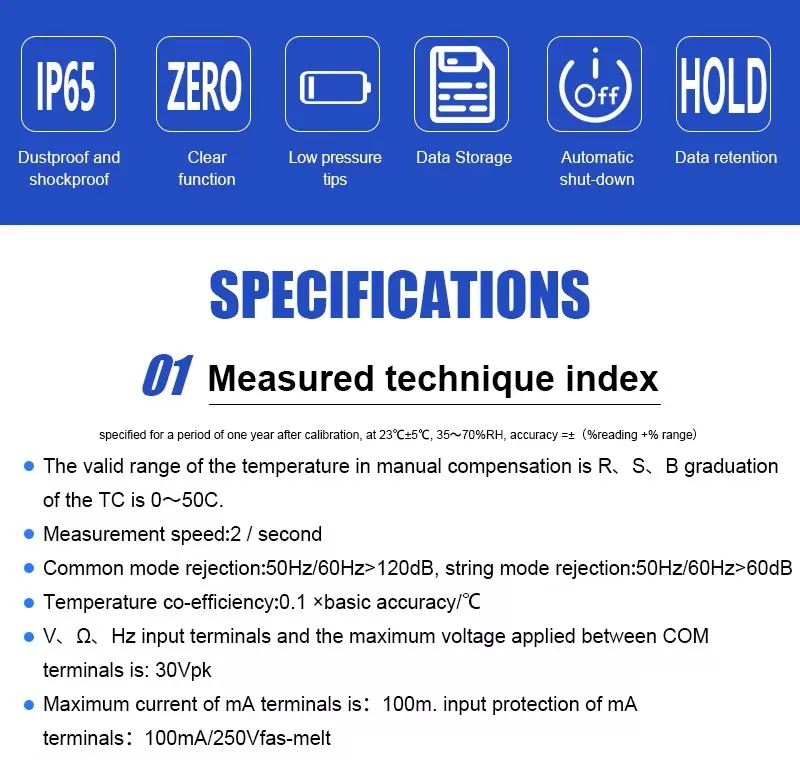

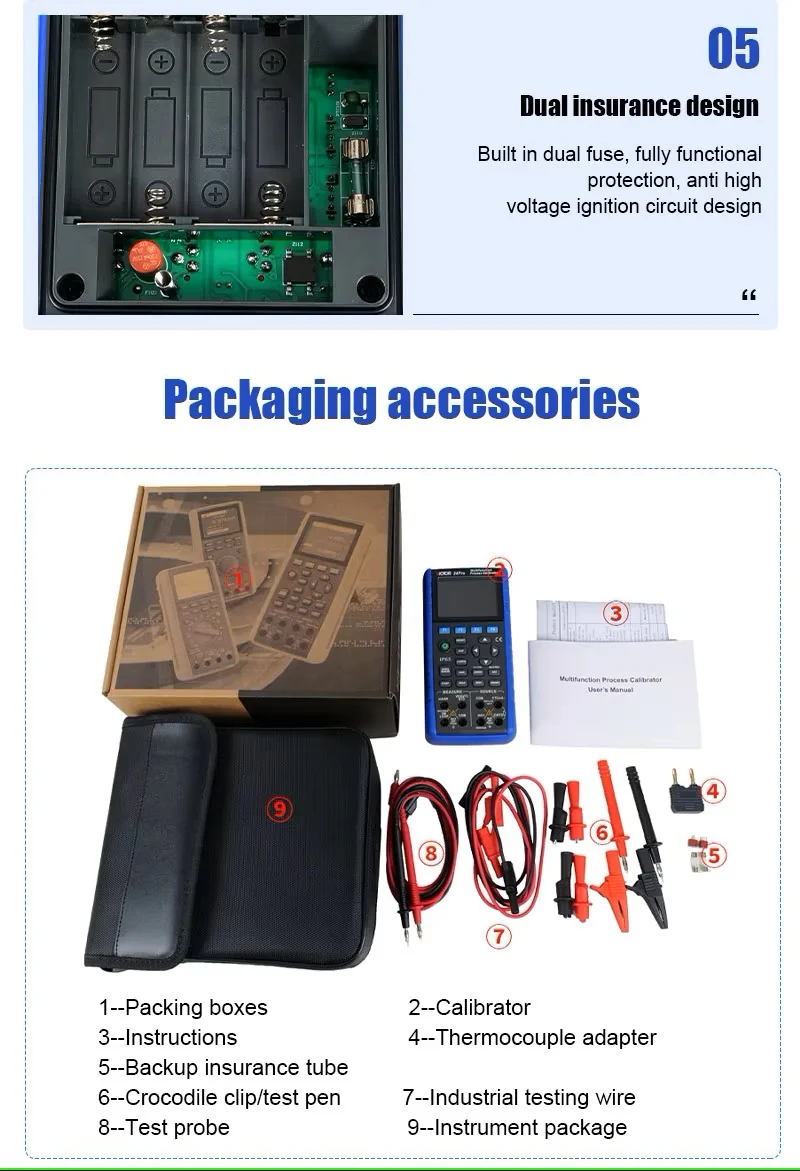

Safety is paramount. The VICTOR 24Pro provides maximum protection for both the user and the device. The maximum voltage applied between input terminals and earth is 30Vpk. The mA input is protected up to 100mA, and the general V/Ω/Hz input handles 30Vpk. The IP65 rating also adds a layer of electrical safety by preventing conductive dust or moisture ingress.

7. Data Communication and Storage
For compliance and reporting, the 24Pro supports online data communication and internal data storage. You can save critical calibration results and later transfer them to a PC for analysis or quality assurance documentation—bridging the gap between field work and office record-keeping.

The VICTOR 24Pro is not just a calibrator; it is a durable, precise, and comprehensive process tool designed for the demanding professional who refuses to compromise on accuracy or safety.
