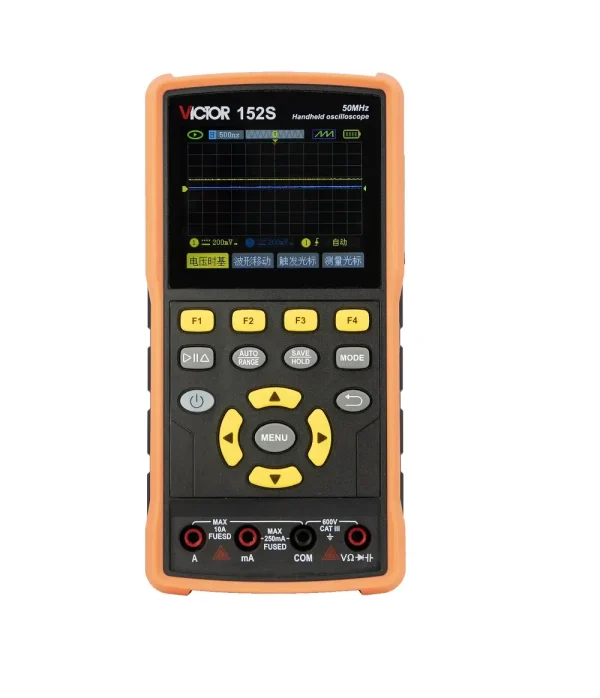

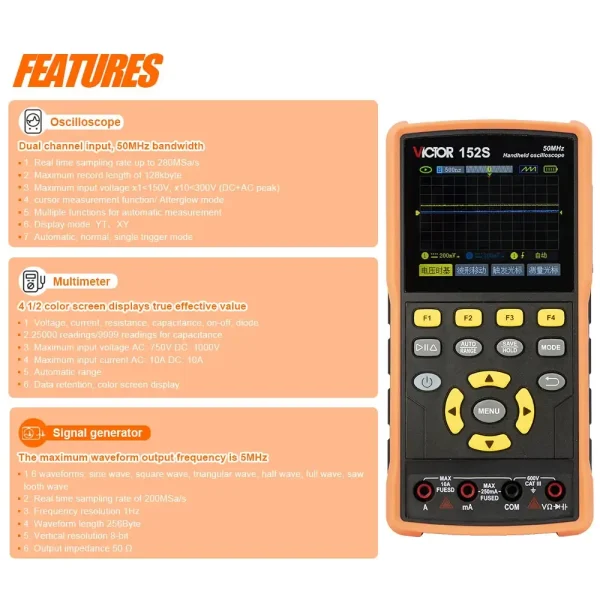

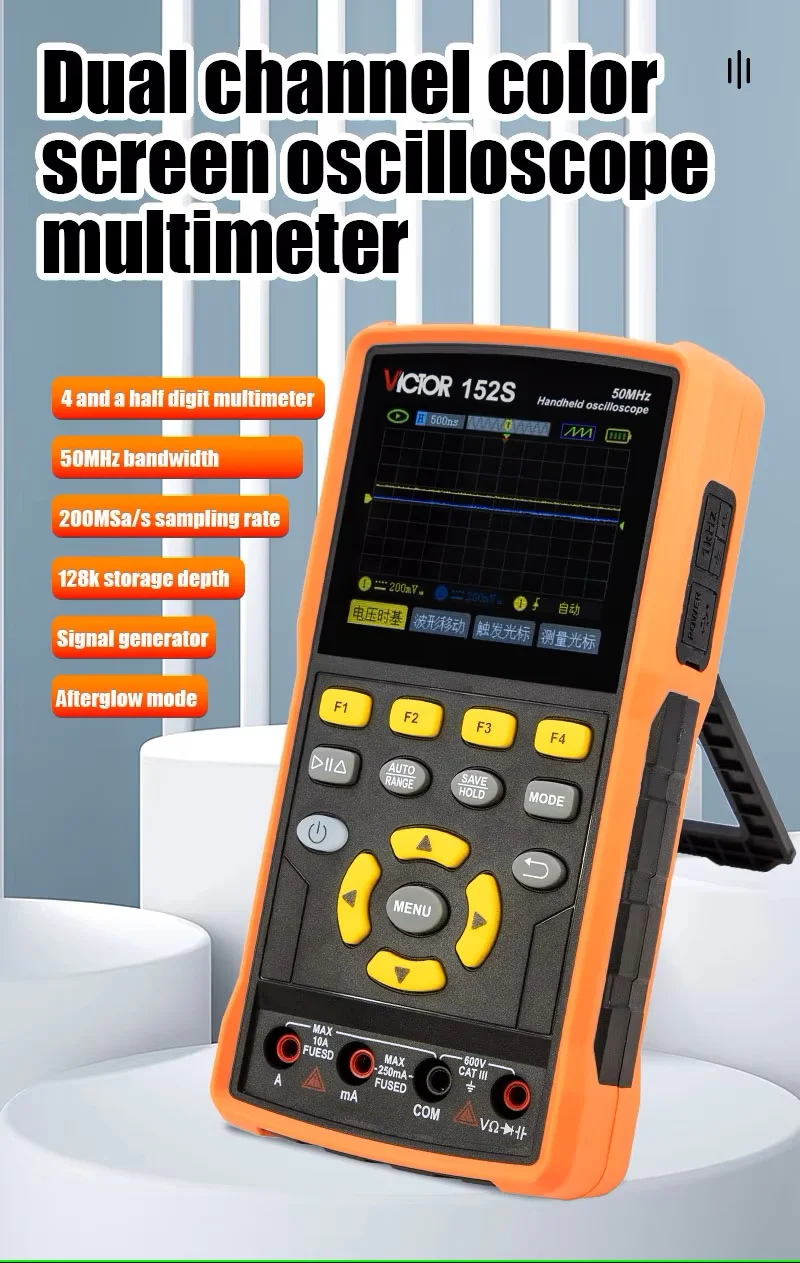

Victor 3-in-1 Oscilloscope – 50MHz Dual Channel, 280MSa/s, With Signal Generator & True RMS Multimeter 152S

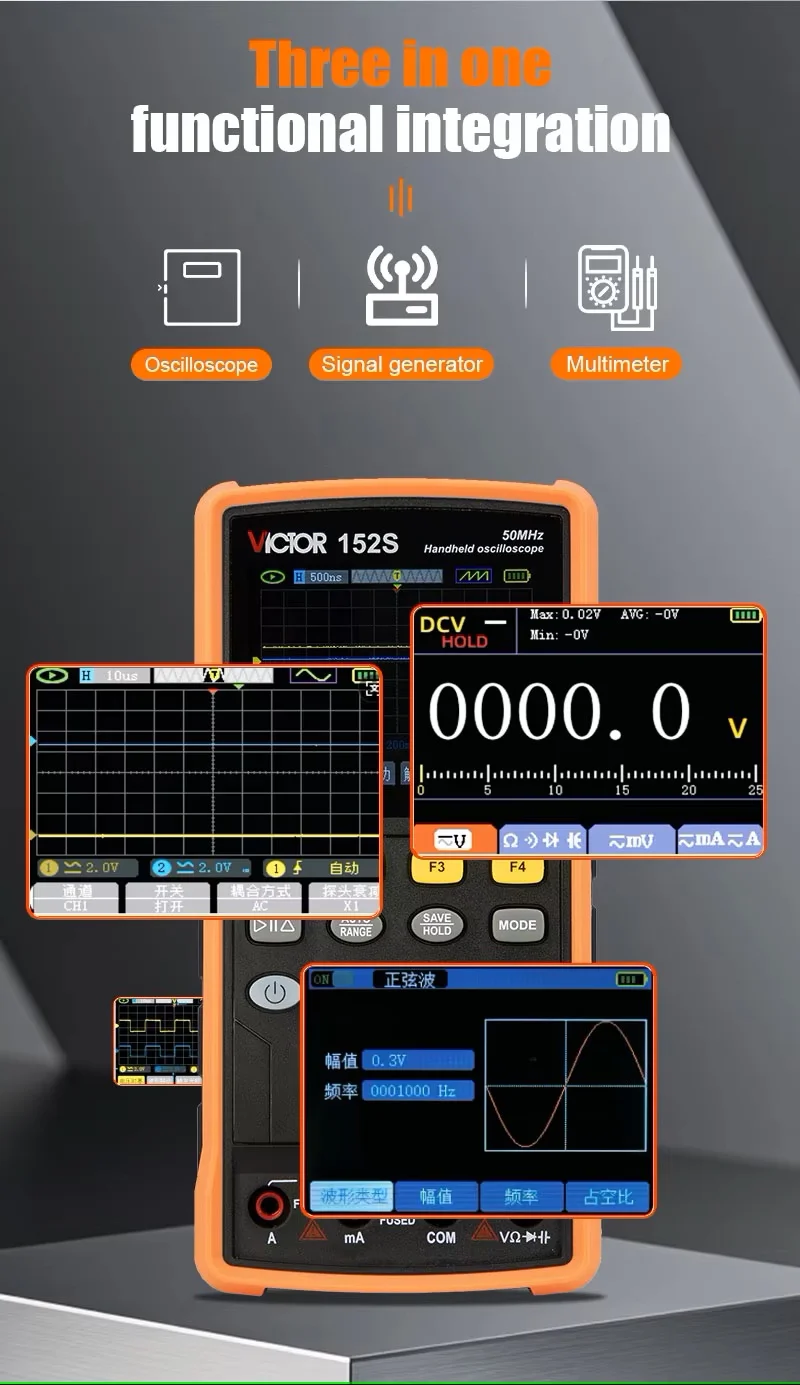

True 3-in-1 Oscilloscope for Ultimate Portability

• The Victor 152S is not just a test tool; it is a complete portable lab. As a dedicated 3-in-1 oscilloscope, it integrates a 50MHz dual-channel oscilloscope, a high-precision true RMS multimeter (25000 counts), and a 5MHz signal generator into a single, handheld device.
• Stop carrying multiple heavy units. One 3-in-1 oscilloscope replaces your bench scope, your daily DMM, and your function generator, saving space in your bag and on your bench.

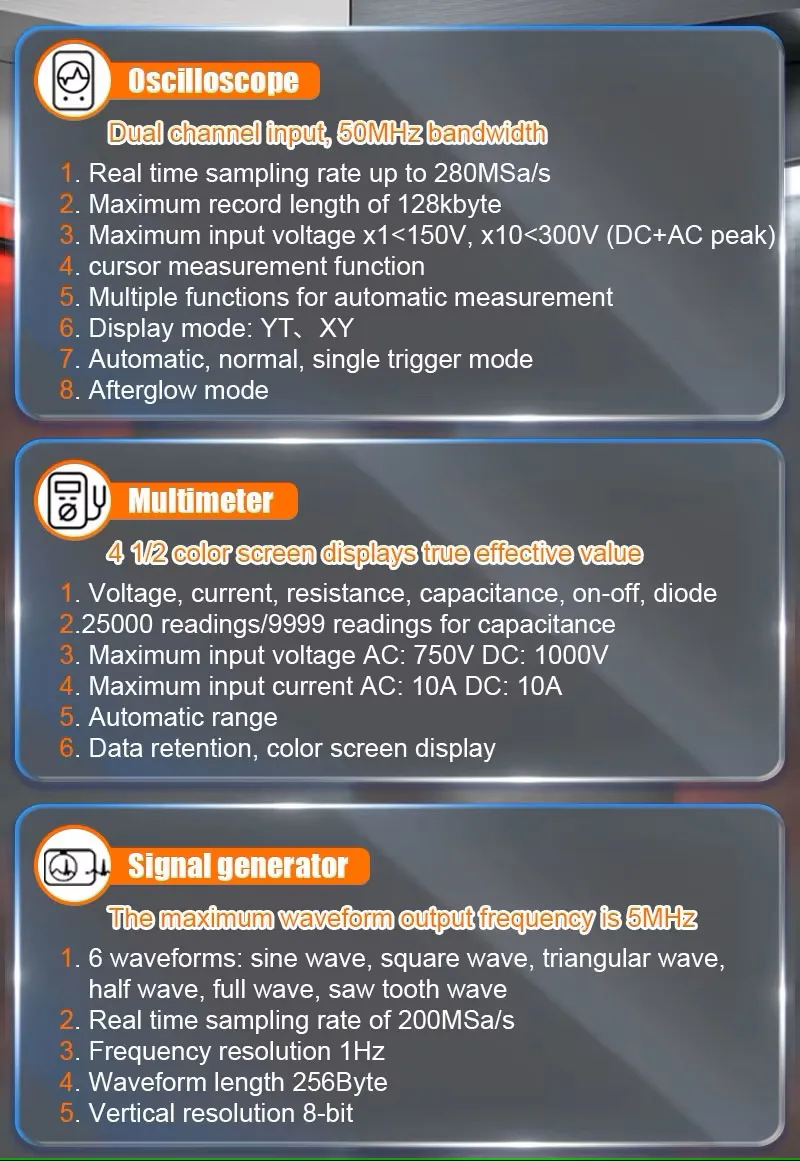

High-Performance Oscilloscope Core (50MHz / 280MSa/s)

• The oscilloscope inside this 3-in-1 oscilloscope delivers impressive power: 50MHz bandwidth and a real-time sampling rate of up to 280MSa/s.
• With a maximum record length of 128Kbytes, you can capture and analyze complex signal details with ease. The YT and XY display modes offer flexible viewing options.

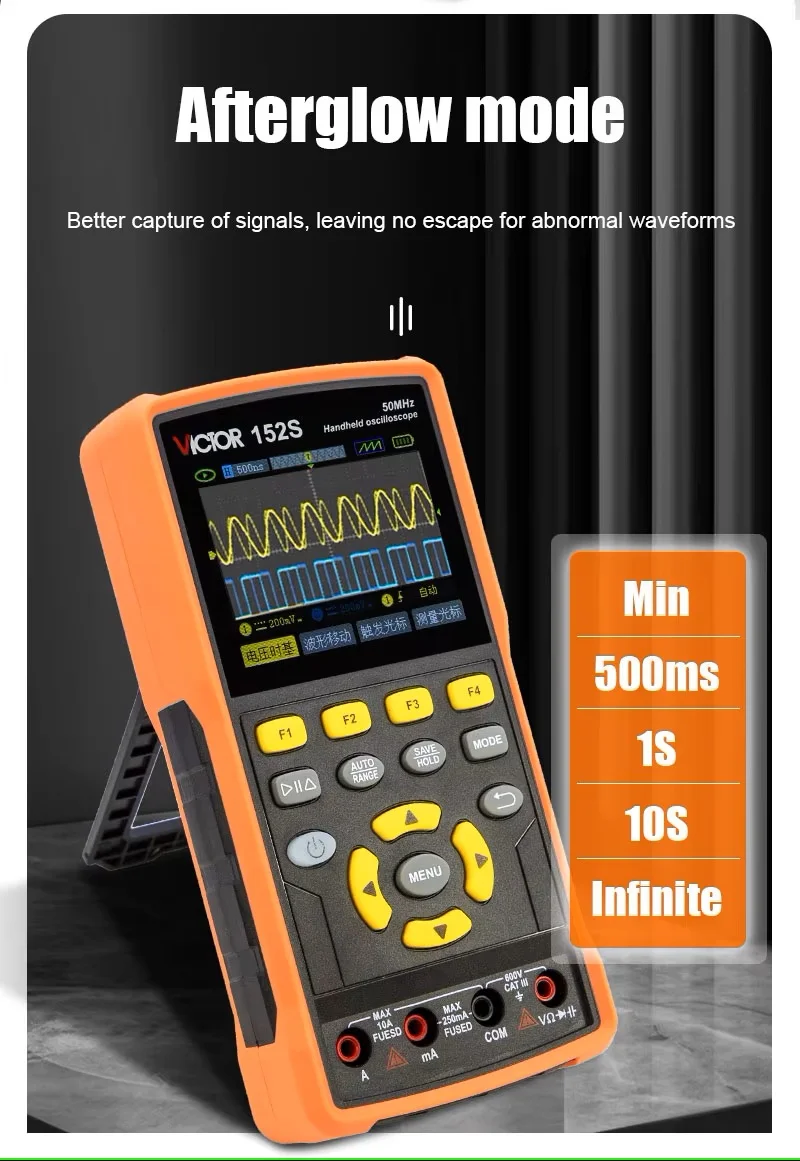

• Features like afterglow mode (minimum, 500ms, 1S, 10S, unlimited) and cursor measurement allow for deep signal analysis typically found only on much larger benchtop units.

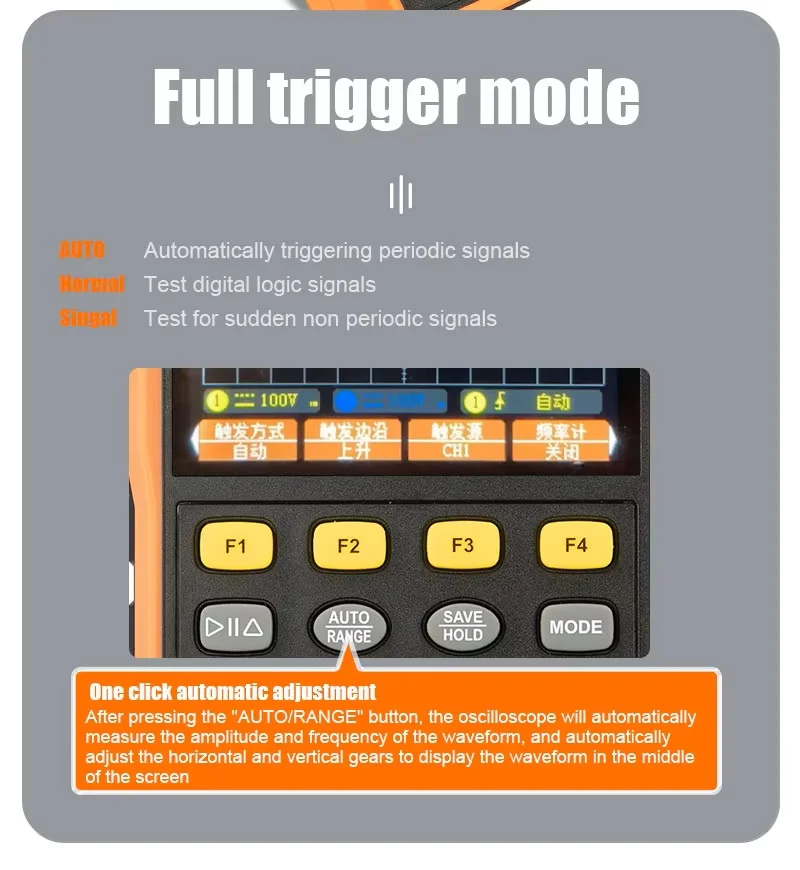

Advanced Triggering & Automatic Measurement

• This 3-in-1 oscilloscope supports automatic, normal, and single trigger modes with rising/falling edge selection, ensuring you can capture even transient or intermittent signals.

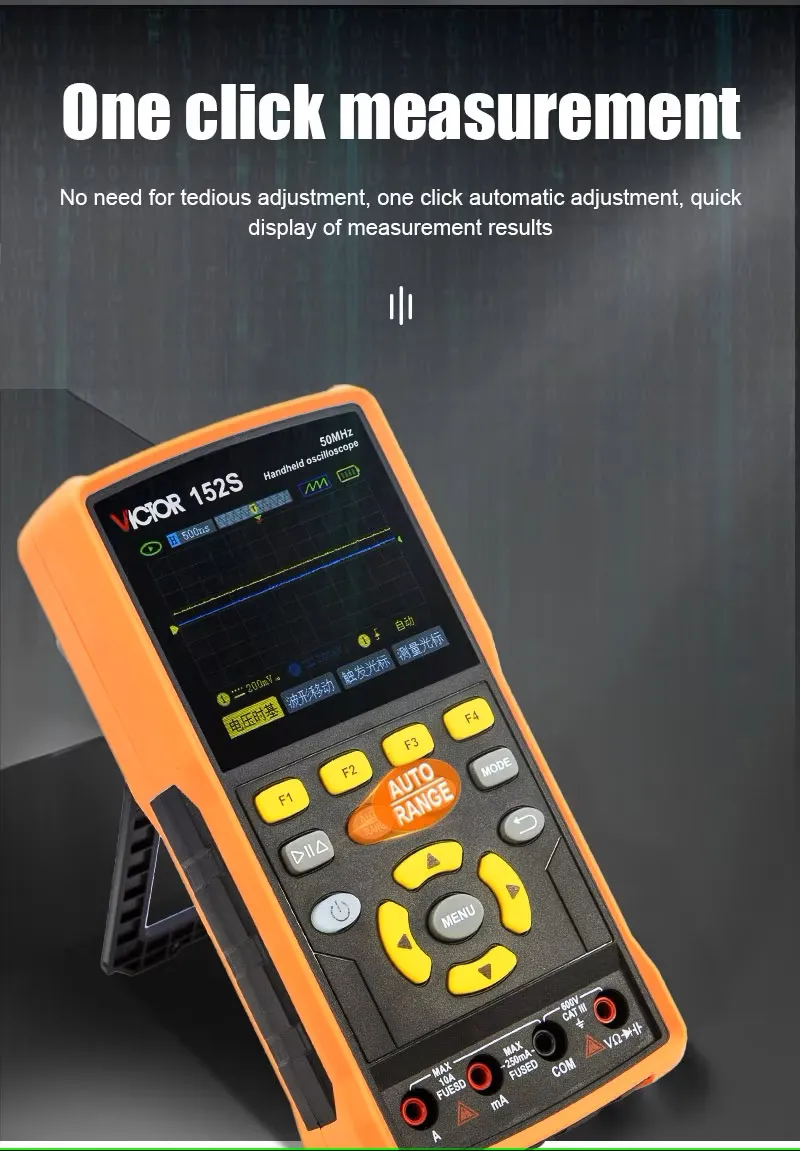

• It offers a comprehensive suite of automatic measurements: cycle, frequency, peak-to-peak, maximum, minimum, RMS, duty cycle, and average. The dual-channel input allows for direct comparison of signals (e.g., input vs. output).

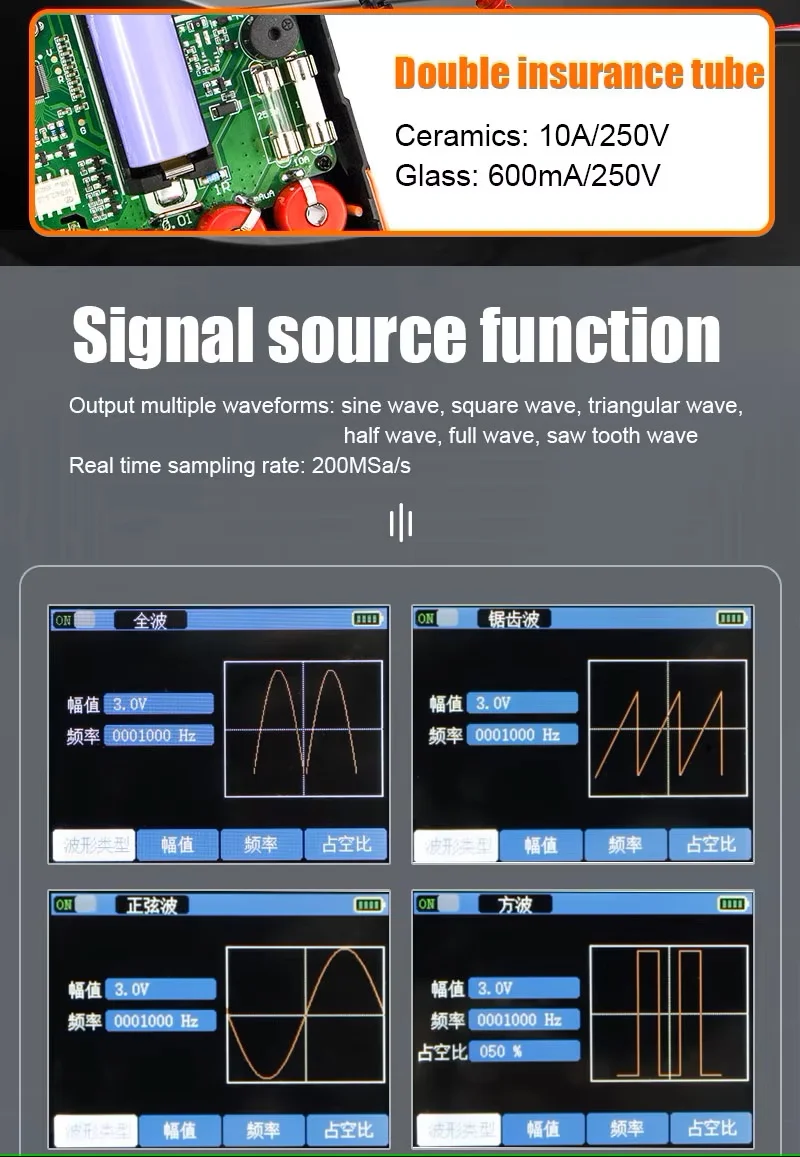

Built-in 5MHz Signal Generator

• Unique to a portable 3-in-1 oscilloscope, the Victor 152S features a built-in signal generator with a maximum output frequency of 5MHz.

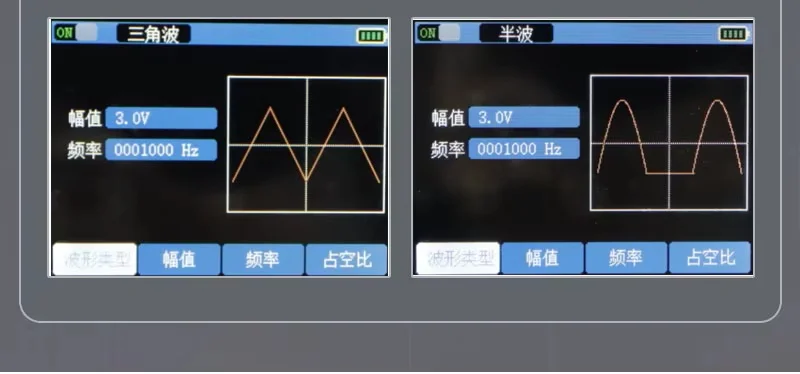

• It generates 6 waveform types: sine wave, square wave, triangular wave, half-wave, full wave, and sawtooth wave.

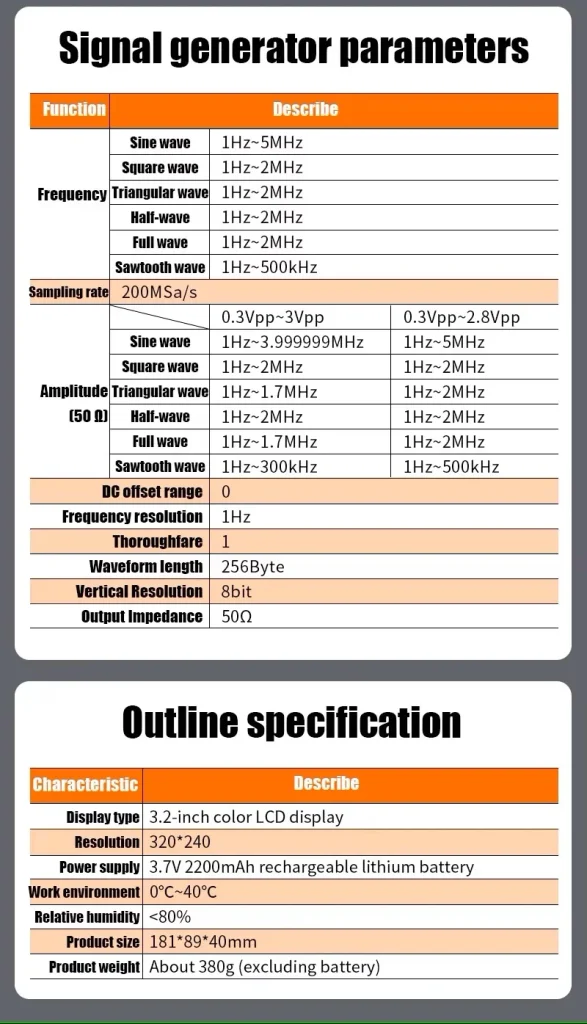

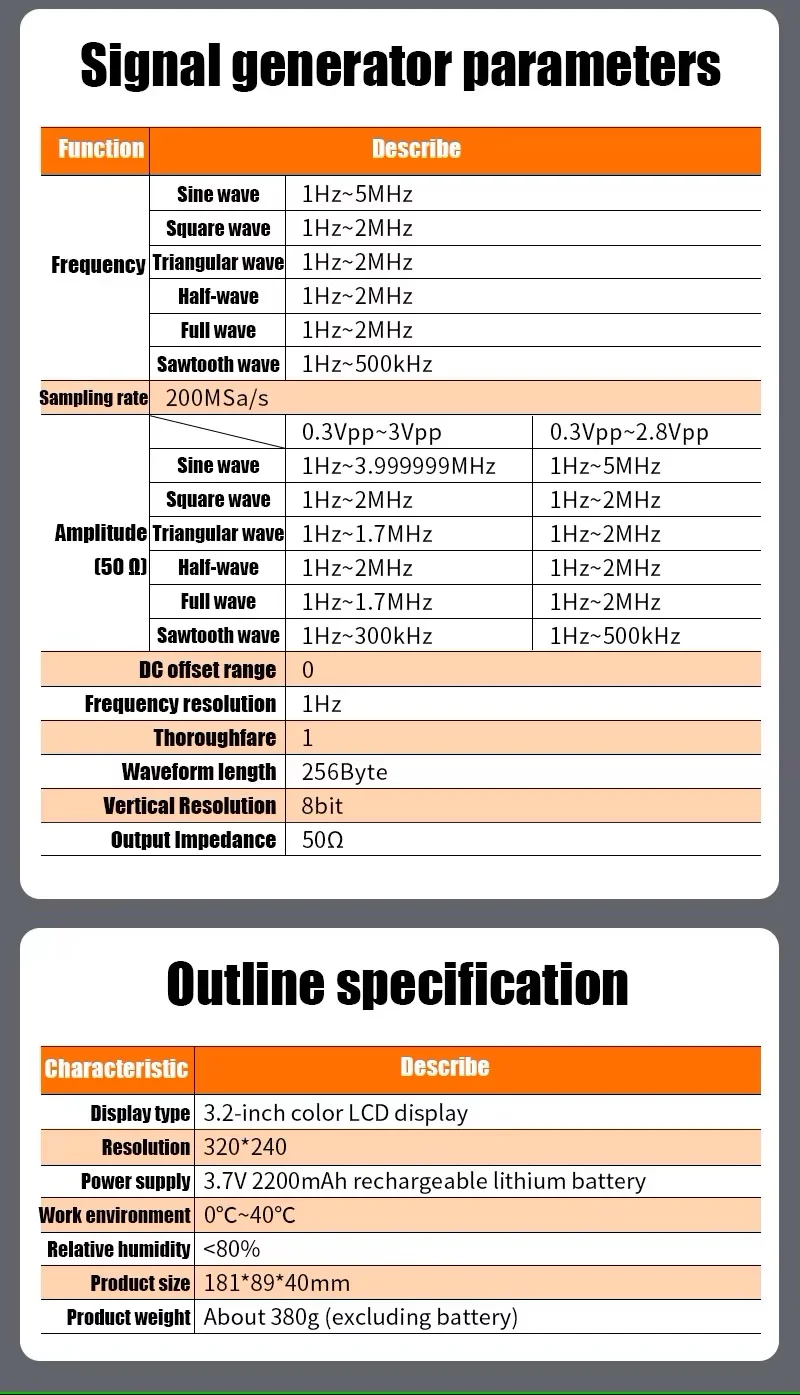

• With a 200MSa/s sampling rate, 1Hz frequency resolution, and 256Byte waveform length (8-bit vertical resolution), this 3-in-1 oscilloscope allows you to inject test signals, sweep filters, or troubleshoot amplifier stages without needing external equipment.

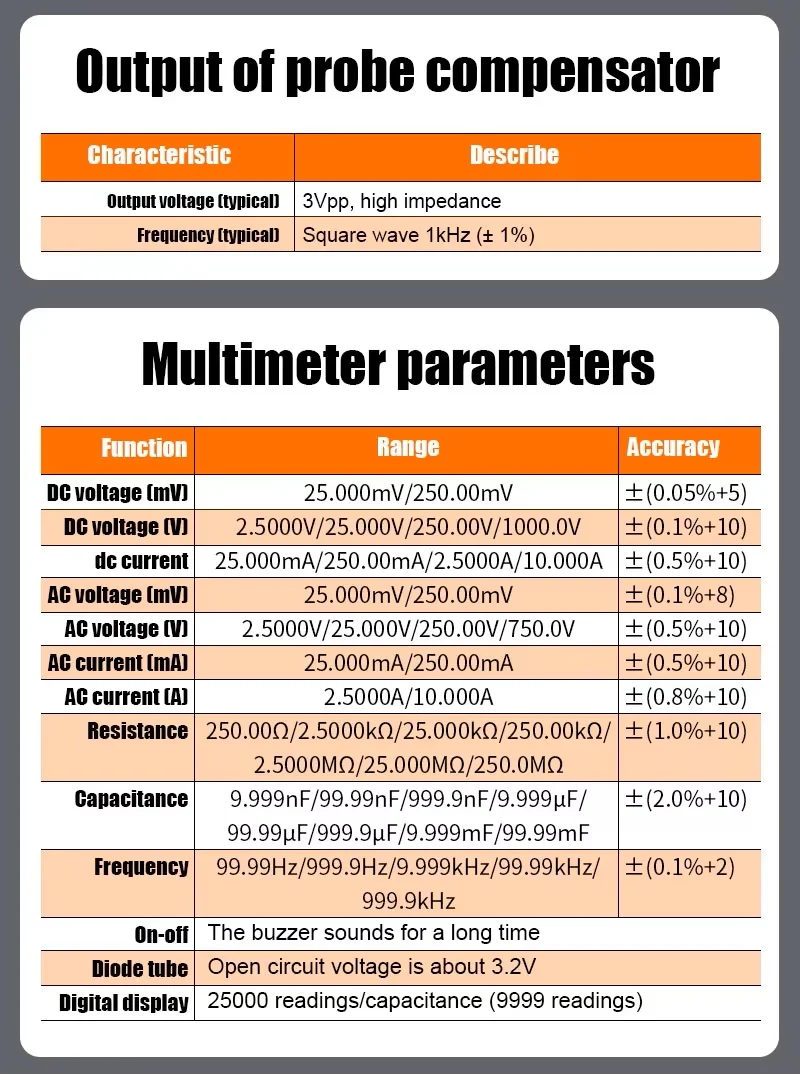

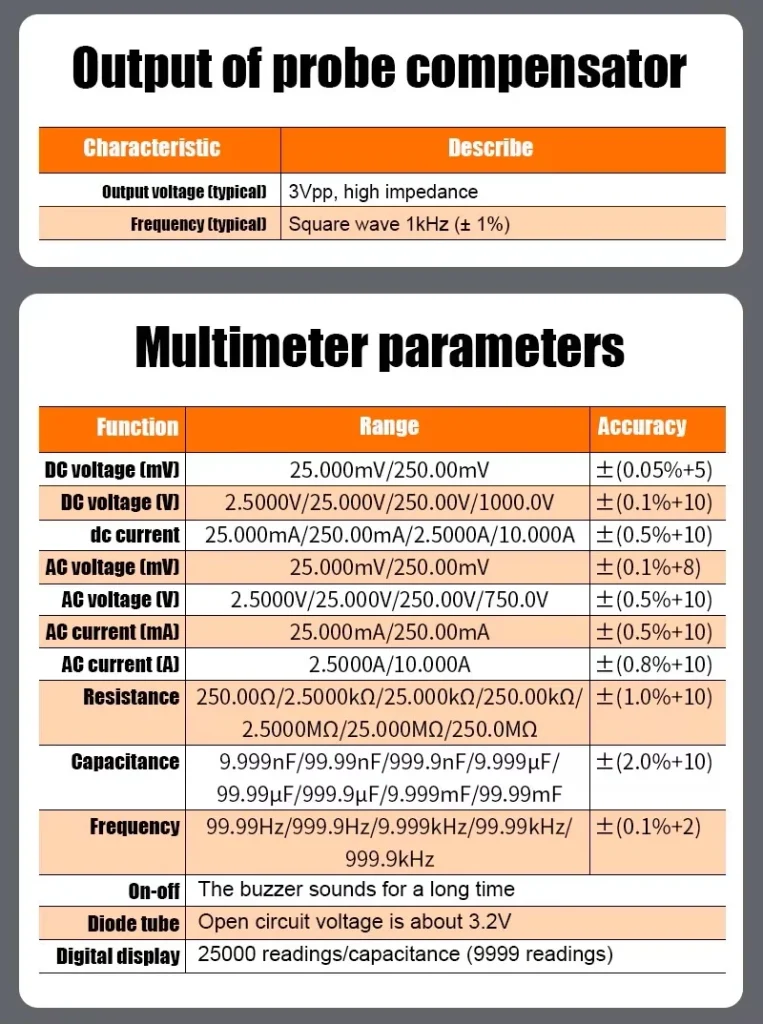

4.5-Digit True RMS Multimeter (25000 Counts)

• Unlike simple oscilloscope pass-throughs, the multimeter function in this 3-in-1 oscilloscope is a high-precision tool. It features a 4 1/2-digit color display with a count of 25000 (9999 for capacitance).
• True RMS measurements ensure accuracy on non-sinusoidal signals. It measures:
  • DC Voltage up to 1000V with accuracy from ±(0.05%+5)
  • AC Voltage up to 750V
  • DC/AC Current up to 10A
  • Resistance up to 250.0MΩ
  • Capacitance up to 99.99mF
  • Frequency, continuity, and diode testing.
• The 3-in-1 oscilloscope seamlessly switches between visualization and high-precision numeric readings.

Dual Channel with Smart Burn Prevention

• The dual-channel input on this 3-in-1 oscilloscope allows you to monitor two signals simultaneously.
• Safety is paramount. The device features intelligent burn prevention, with a maximum input voltage of <150V (x1 probe) and <300V (x10 probe, DC+AC peak), protecting both the user and the device.

Large Color Display & Waveform Storage

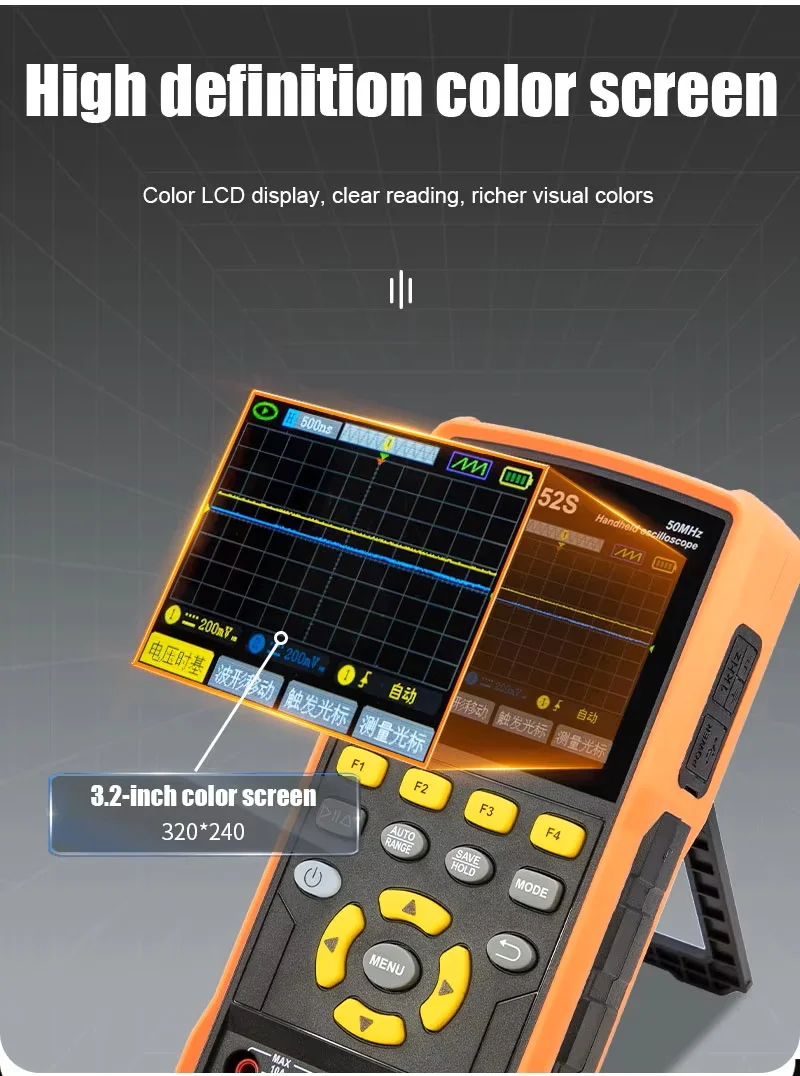

• Visuals are rendered on a bright 3.2-inch color LCD display with 320*240 resolution, making waveform details crisp and clear even in varying light conditions.

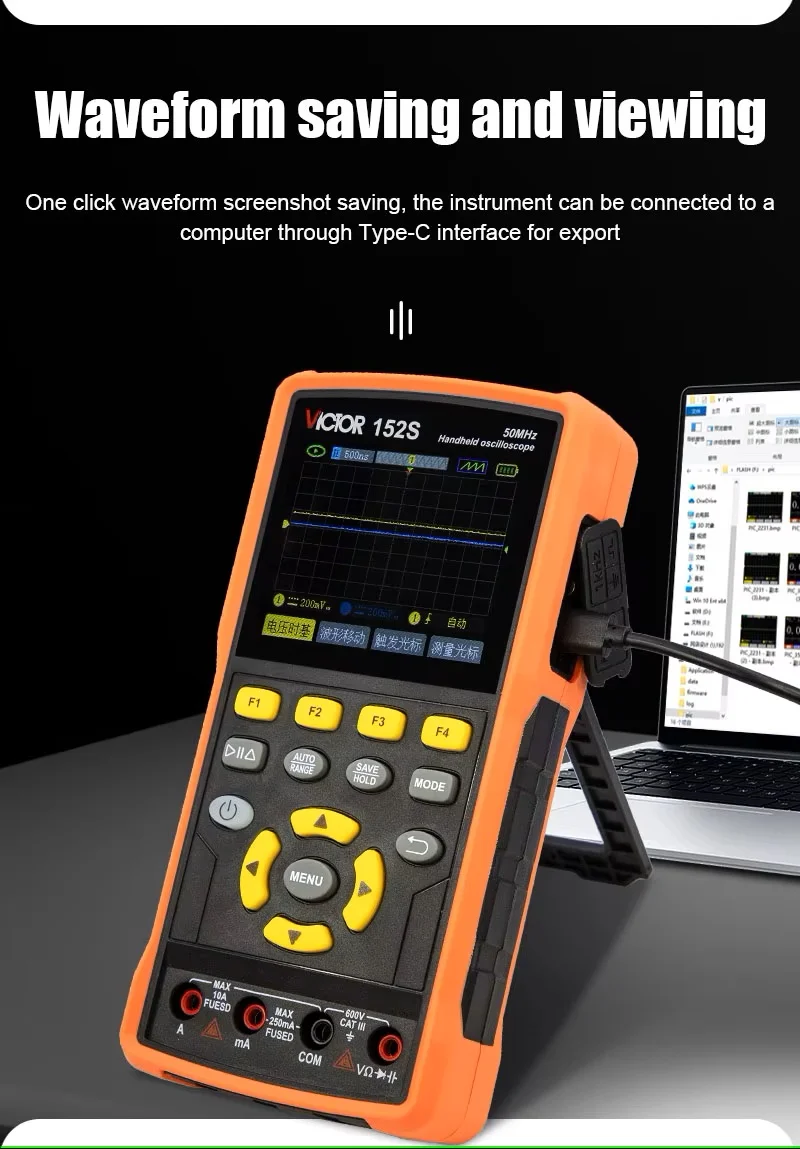

• This 3-in-1 oscilloscope supports waveform storage and export, allowing you to save setups, capture screenshots, or record data for later analysis or reporting.

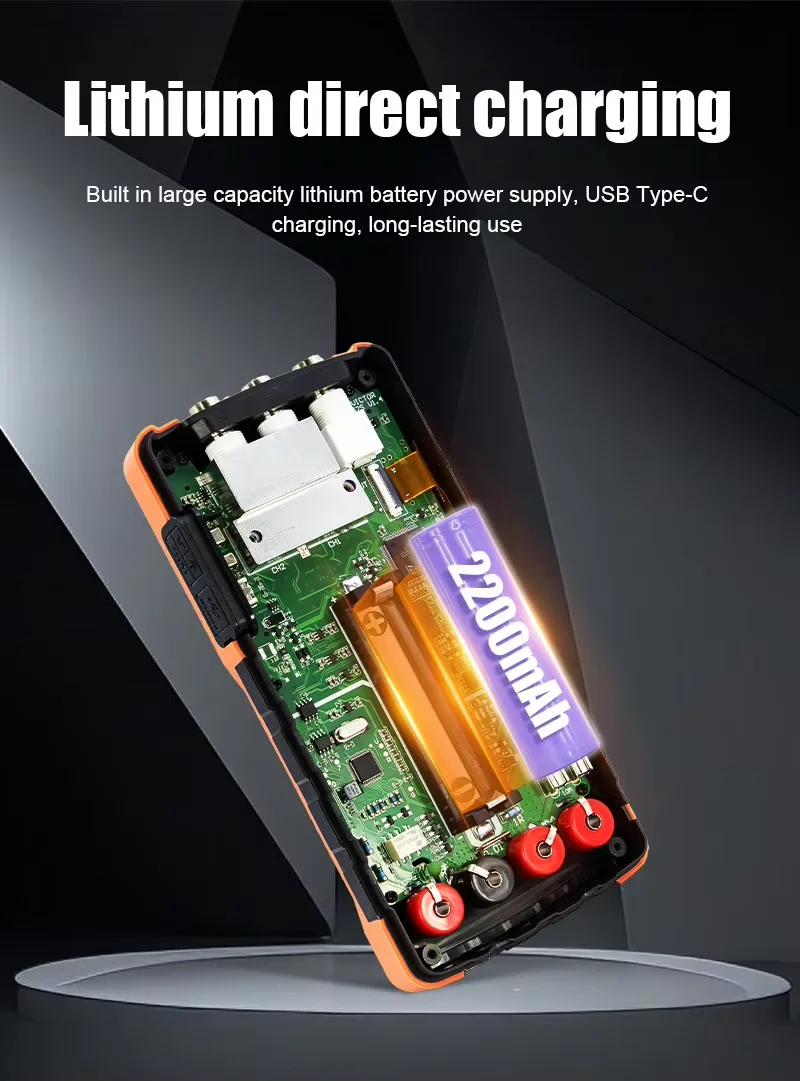

Rechargeable & Field-Ready

• Power is supplied by a 3.7V 2200mAh rechargeable lithium battery with direct lithium charging (Type-C implied via "Lithium direct charging").

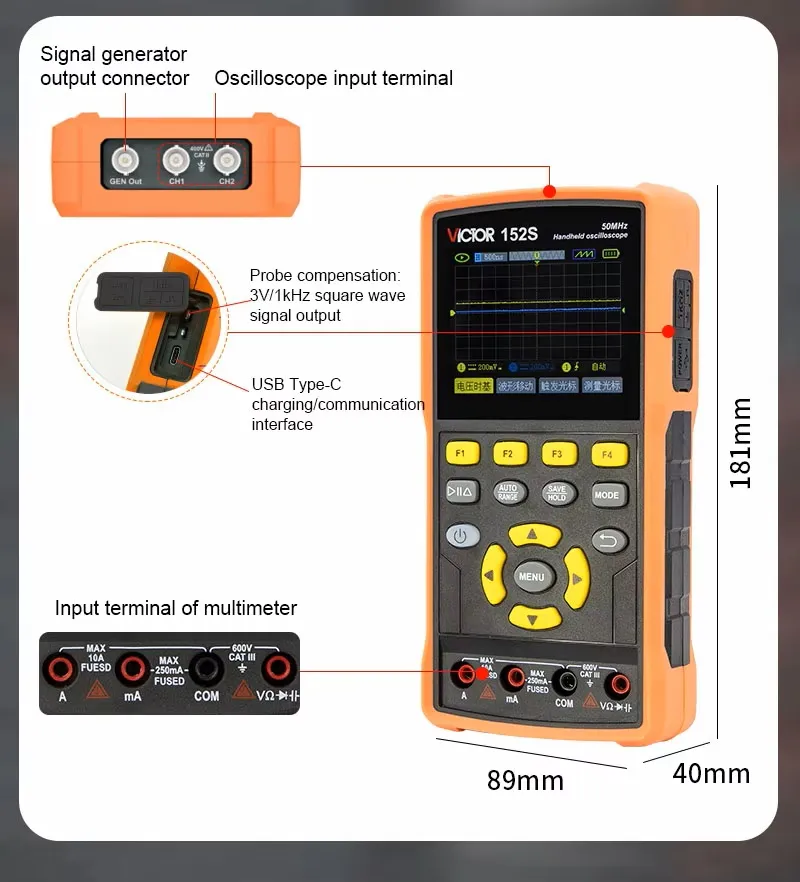

• The portable form factor (181*89*40mm) and weight (~380g) make this 3-in-1 oscilloscope ideal for field service, educational labs, automotive diagnostics, and remote repairs. It operates reliably from 0°C to 40°C.

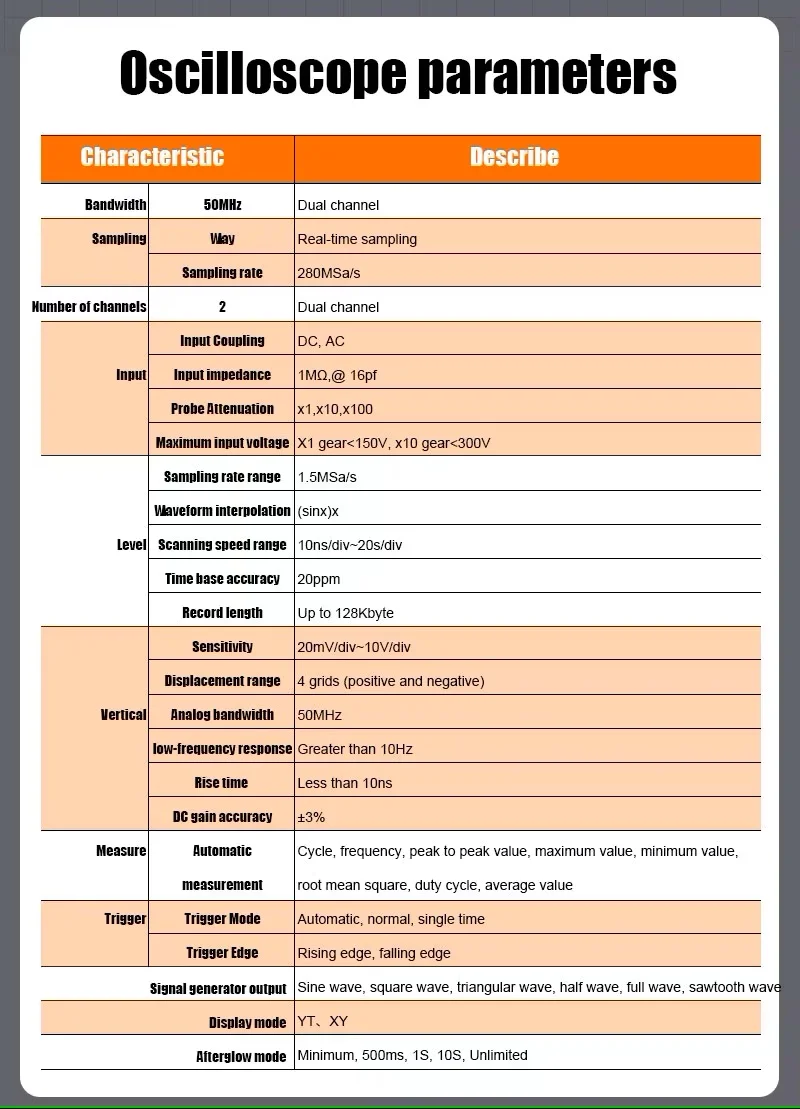

High-Speed Sampling & Deep Memory

• With a real-time sampling rate of 280MSa/s and a scan speed range from 10ns/div to 20s/div, this 3-in-1 oscilloscope captures high-frequency details without aliasing.
• The 128Kbyte record length per channel provides deep memory buffer, allowing you to zoom in on captured events long after the trigger has occurred.

Comprehensive Input & Connectivity

• Input impedance is standard 1MΩ@16pf.
• Probe attenuation options (x1, x10, x100) provide flexibility for various voltage levels.
• The 3-in-1 oscilloscope includes a probe compensator output (3Vpp, 1kHz square wave) for standard probe calibration.
