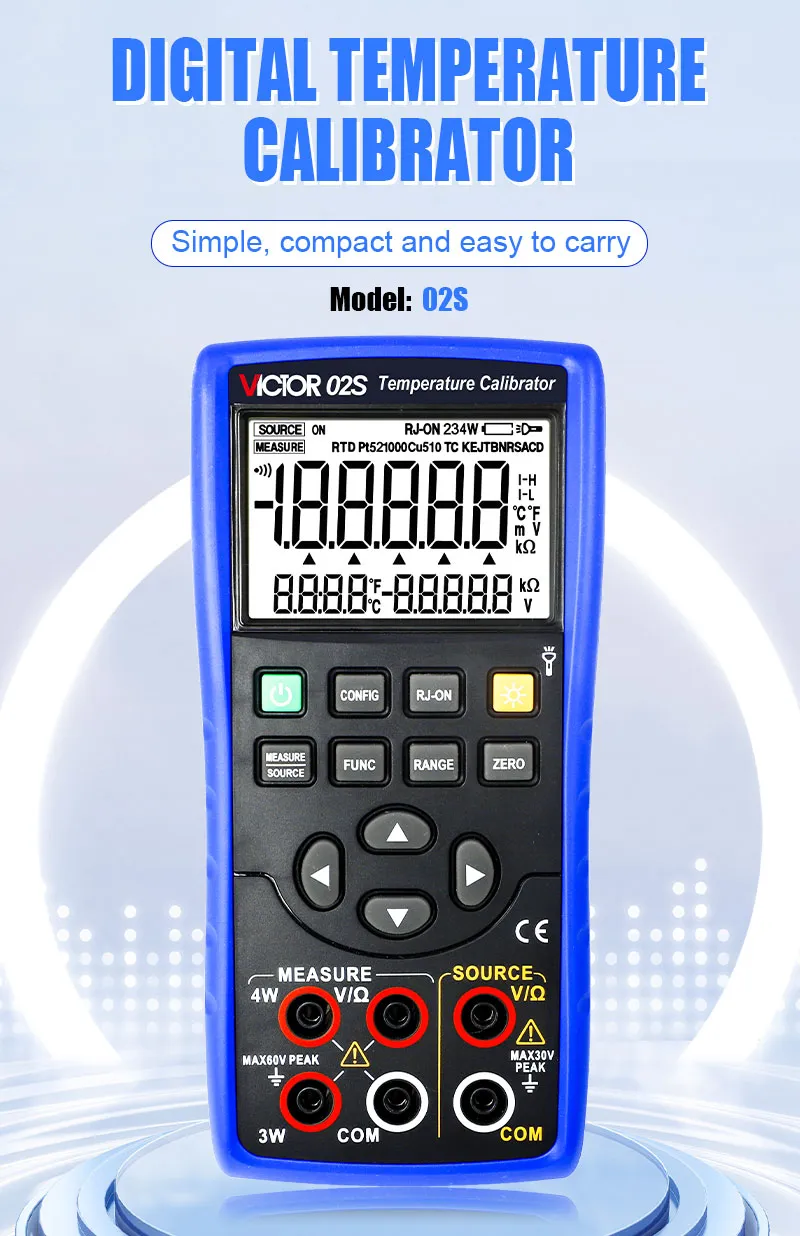

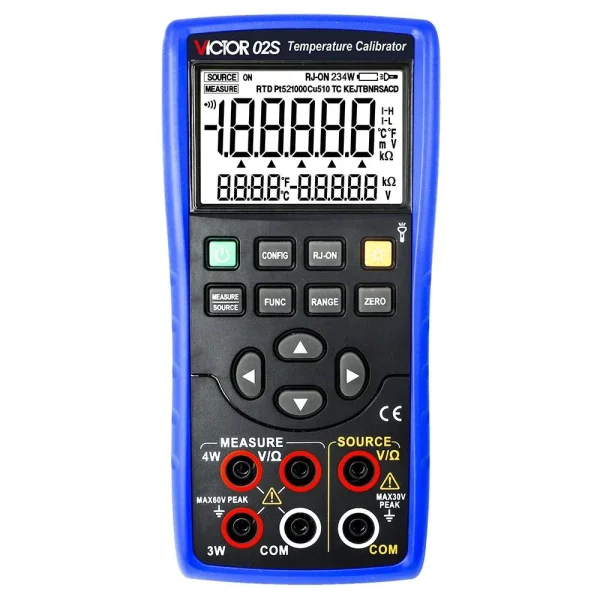

NEW Temperature Calibrator Thermocouple and RTD Signal Output and Measurement Victor 02S

The Ruoshui VICTOR 02S is not just another instrument — it is a professional-grade Temperature Source that integrates multiple calibration functions into one handheld device. Whether you need a temperature calibrator for routine sensor verification, a Thermocouple calibrator for high-temperature processes, or an RTD calibrator for precision resistance thermometry, the VICTOR02S delivers. It also functions as a Thermal Resistance calibrator, making it the most versatile tool in your kit.

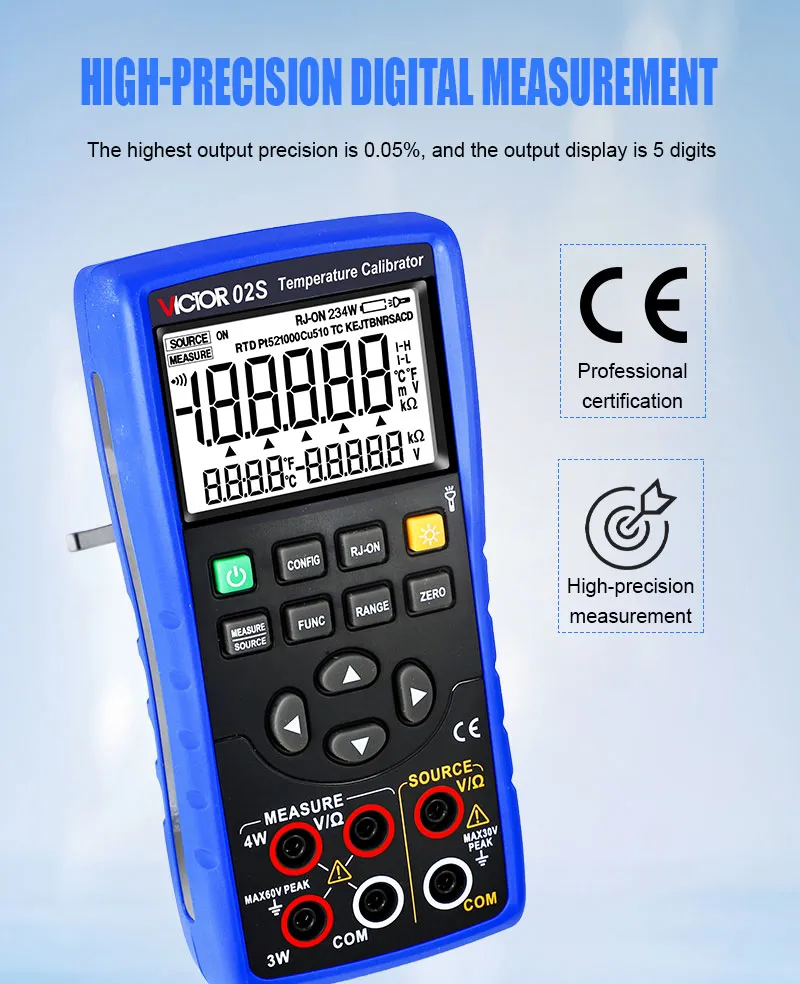

1. Unmatched Accuracy – 0.02% Basic Precision

As a high-end temperature calibrator, the VICTOR02S achieves 0.02% accuracy on its 30V DCV range. Within one year after calibration (23°C±5°C, 20-70% RH), this Temperature Source guarantees reliability. Uncertainty includes standard uncertainty, hysteresis, nonlinearity, repeatability, and long-term stability (K=2). For critical applications, this Thermocouple calibrator ensures you never doubt your readings.

2. Full Thermocouple Calibration Capability

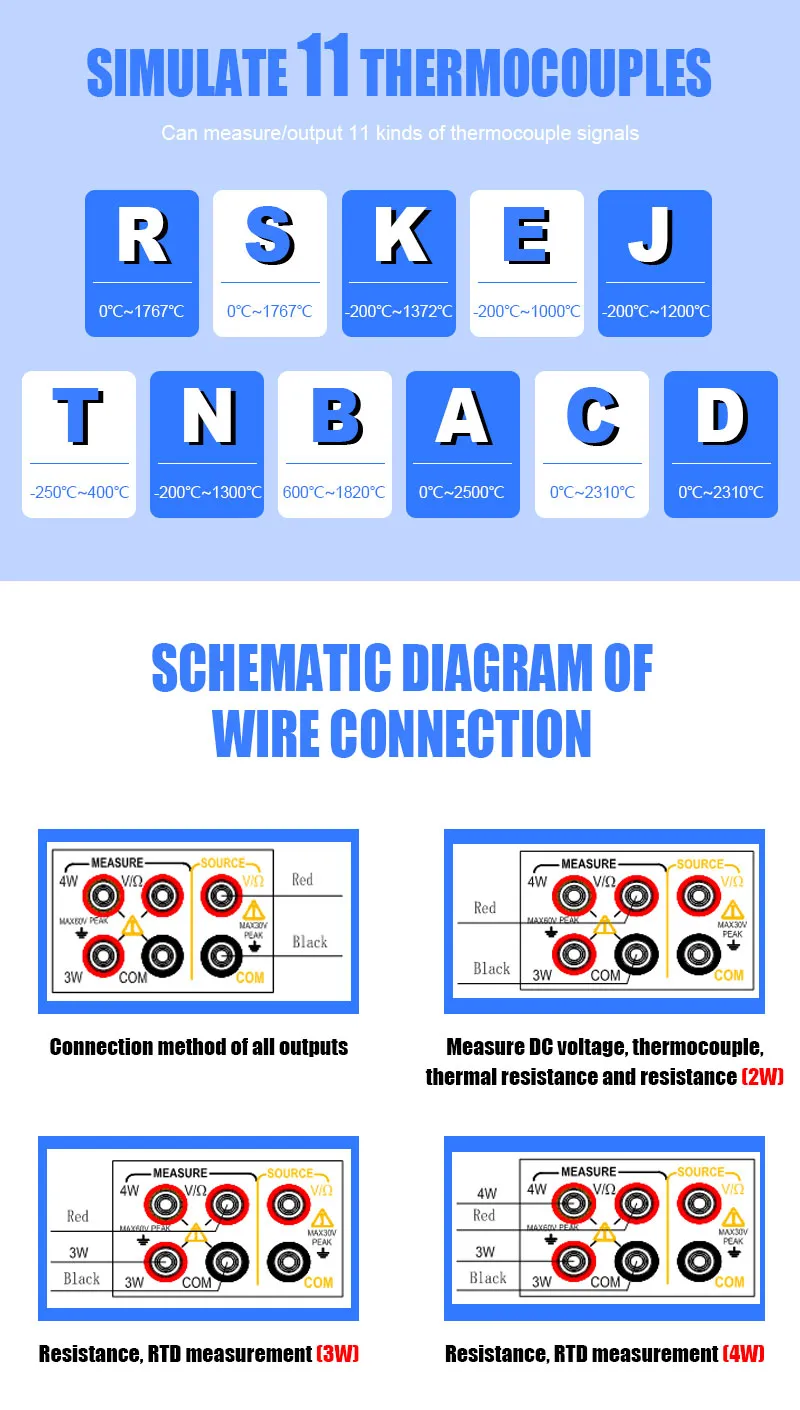

The VICTOR02S is a comprehensive Thermocouple calibrator supporting types R, S, K, E, J, T, N, B, A, C, and D. Key highlights:

• Type R/S: 0°C~1767°C, ideal for high-temperature furnaces.
• Type K: -100.0°C~1372.0°C, resolution 0.1°C.
• Type N: -200.0°C~1300.0°C for industrial ovens.
• Type B: 600°C~1820°C for glass and ceramics.
• Type A/C/D: Up to 2500°C for extreme environments.
  No matter your thermocouple type, this Temperature Source provides accurate simulation and measurement.

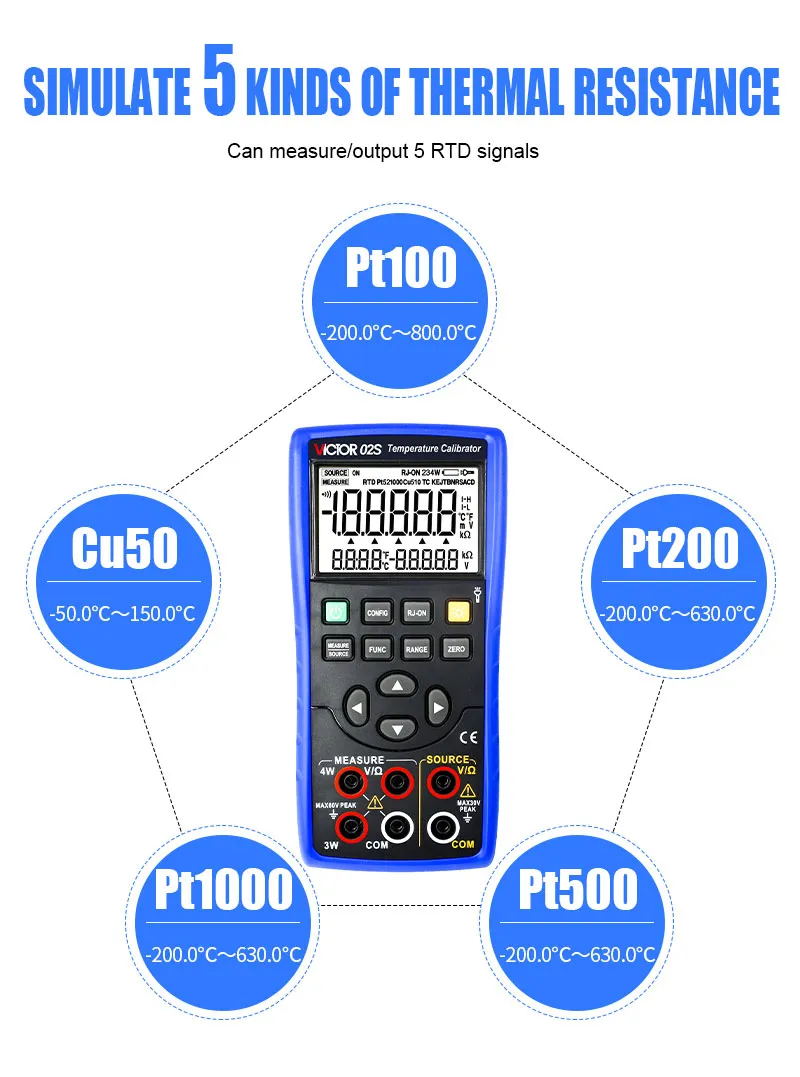

3. Precision RTD Calibrator for All Common Sensors

As a dedicated RTD calibrator, the VICTOR02S supports Pt100(385), Pt200(385), Pt500(385), Pt1000(385), and Cu50 using 3-wire connection. Temperature ranges:

• Pt100: -200°C~800°C with accuracy from 0.5°C to 0.8°C.
• Pt200/Pt500/Pt1000: -200°C~630°C.
• Cu50: -50°C~150°C, accuracy 0.7°C.
  This Thermal Resistance calibrator delivers 0.1°C resolution, making it perfect for HVAC, pharmaceutical, and energy sectors.

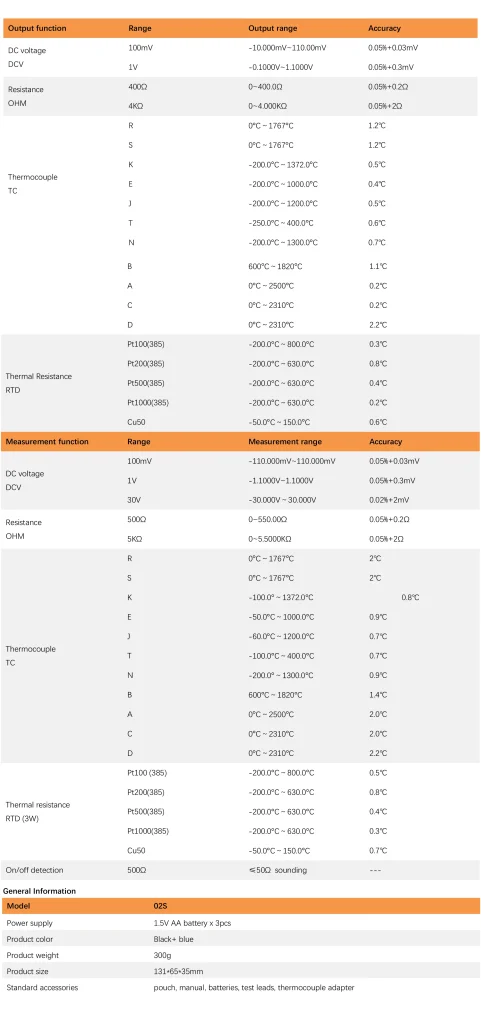

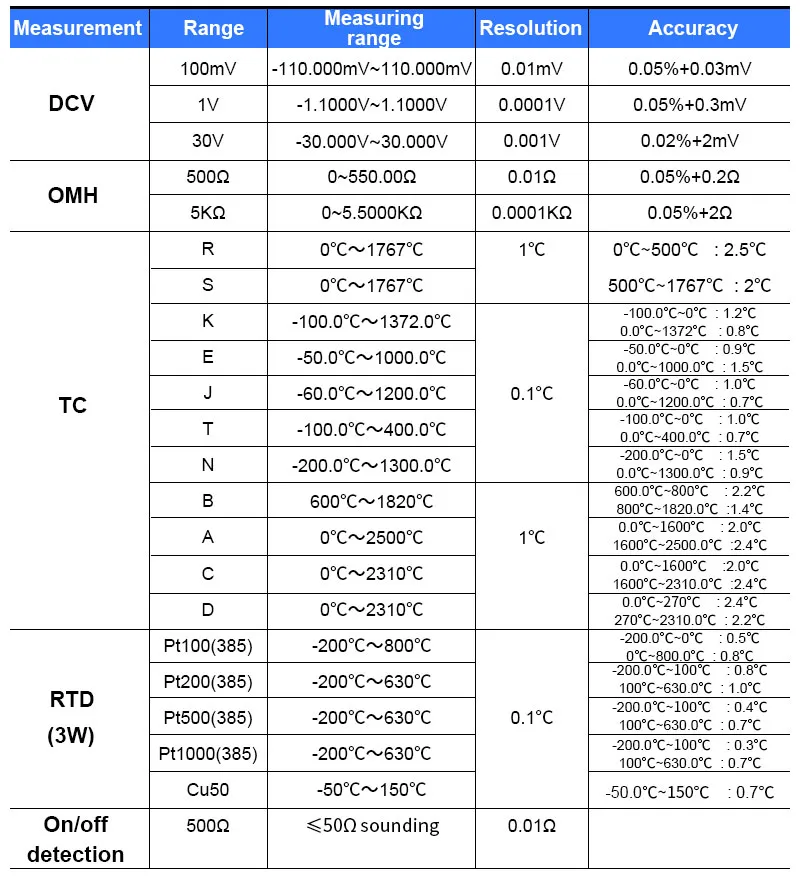

4. DC Voltage and Resistance Measurement Functions

Beyond temperature, this temperature calibrator includes powerful input measurement functions:

• DCV: 100mV (±110.000mV, 0.01mV resolution, 0.05%+0.03mV); 1V (±1.1000V, 0.0001V, 0.05%+0.3mV); 30V (±30.000V, 0.001V, 0.02%+2mV).
• Resistance (OMH): 500Ω (0~550.00Ω, 0.01Ω, 0.05%+0.2Ω); 5kΩ (0~5.5000kΩ, 0.0001kΩ, 0.05%+2Ω).
• On/off detection: ≤50Ω with audible sounding.
  Thus, the VICTOR02S is both a Temperature Source and a general-purpose process calibrator.

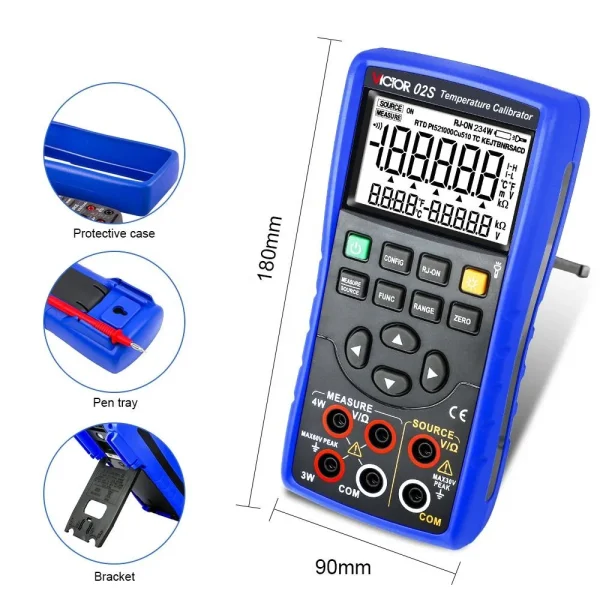

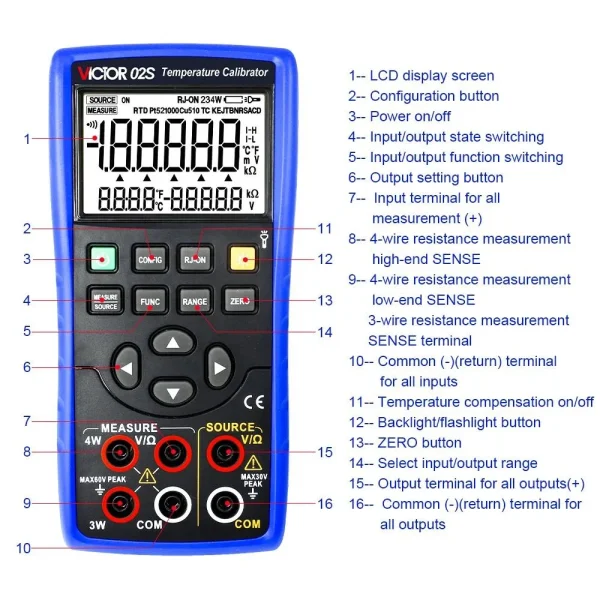

5. Rugged Design with Essential Field Features

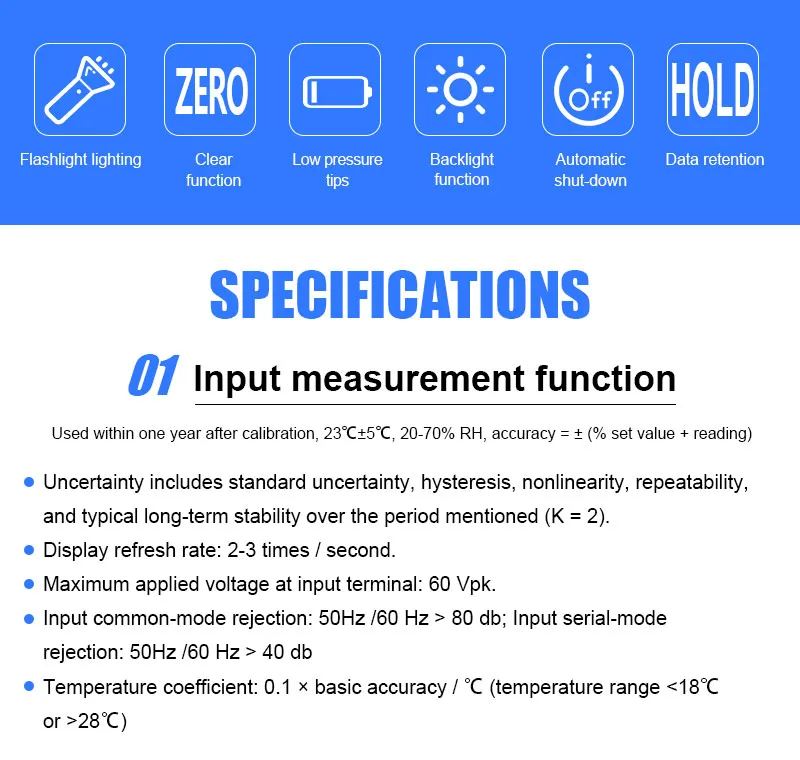

This temperature calibrator is built for real-world use:

• Flashlight lighting for dark panels and ducts.
• Backlight function and clear function for easy reading.
• Low pressure tips and automatic shut-down to save battery.
• Data retention (HOLD) for recording measurements.
• Maximum applied voltage at input terminal: 60 Vpk, with common-mode rejection >80dB and serial-mode rejection >40dB (50/60Hz).
• Temperature coefficient compensation: 0.1 × basic accuracy/°C outside 18°C~28°C.

6. Simplify Your Calibration Workflow

The VICTOR02S Temperature Source includes user-friendly features:

• ZERO function for offset elimination.
• 2-3 refreshes per second display rate.
• Intuitive operation for both Thermocouple calibrator and RTD calibrator modes.
• 3-wire RTD support for high-accuracy resistance thermometry.
• Wide measurement ranges covering almost all industrial sensors.

7. Safety and Reliability You Can Trust

Every temperature calibrator must protect both user and device. The VICTOR02S offers:

• 60Vpk maximum input protection.
• High noise immunity (＞80dB CMRR).
• One-year long-term stability, reducing recalibration costs.
• Compliant with CE standards.
  As a Thermal Resistance calibrator, it also handles capacitive loads properly, ensuring stable readings.

8. Applications Across Industries

This Temperature Source excels in:

• Petrochemical plants: calibrating thermocouples in crackers and reformers.
• Power generation: verifying RTDs in turbines and boilers.
• Pharmaceutical: validating thermal resistance sensors in sterilizers.
• HVAC: testing temperature controllers and sensors.
• Laboratories: serving as a reference temperature calibrator for R&D.
• Food processing: checking ovens and freezers with the Thermocouple calibrator function.

9. Why Choose VICTOR 02S Over Other Calibrators?

Many portable devices claim to be a Temperature Source, but few combine 0.02% DCV accuracy, 11 thermocouple types, 5 RTD curves, resistance measurement, on/off detection, and practical features like flashlight and data hold — all in one compact unit. The VICTOR02S is a true temperature calibrator that replaces multiple tools. As a Thermocouple calibrator, it handles extreme heat. As an RTD calibrator and Thermal Resistance calibrator, it delivers precision at low and medium temperatures. No other handheld device offers this breadth at this price point.

Stop carrying separate calibrators for thermocouples, RTDs, voltage, and resistance. The Ruoshui VICTOR02S is the all-in-one Temperature Source you need. Whether you call it a temperature calibrator, Thermocouple calibrator, Thermal Resistance calibrator, or RTD calibrator, one thing is certain: it delivers accuracy, reliability, and ease of use in every calibration task.

Upgrade to the Ruoshui VICTOR02S today — the complete Temperature Source that professionals trust.
