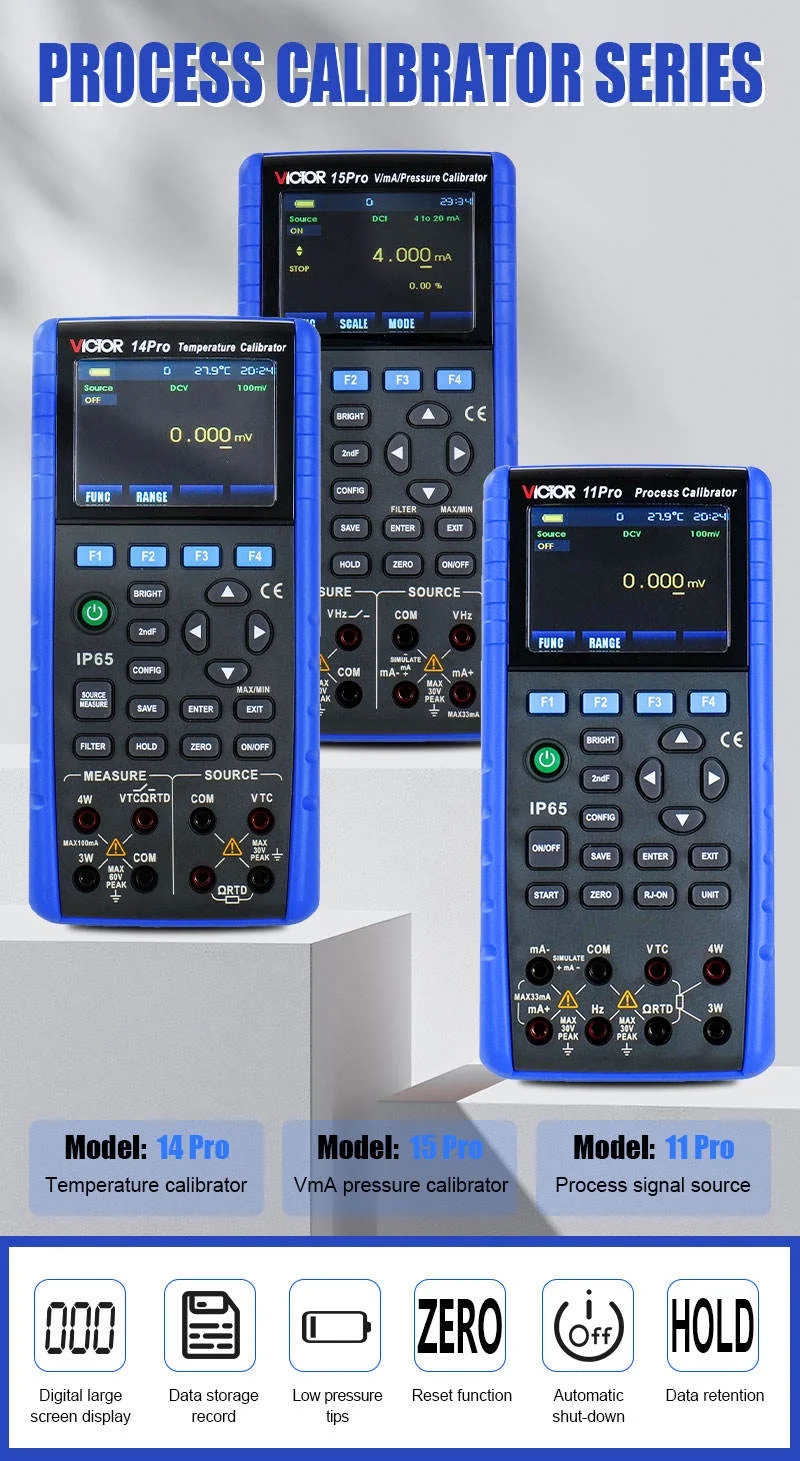

NEW High-Precision Multifunction Process Calibrators with 0.01% Accuracy and IP65 Protection 11Pro 14Pro 15Pro

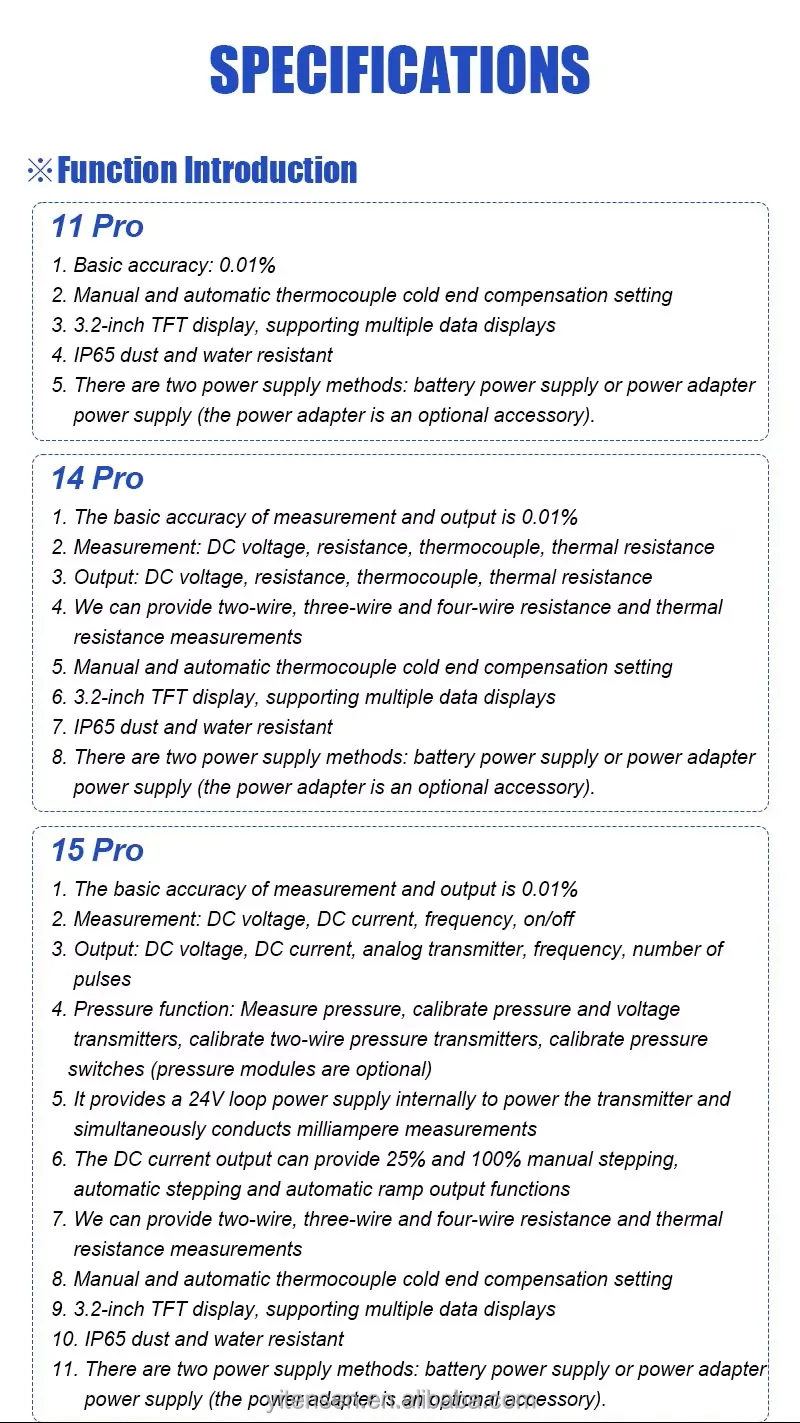

1. Unmatched 0.01% Basic Accuracy
When you need trust every microvolt and ohm, the multifunction process calibrator series delivers 0.01% basic accuracy for both measurement and output. This precision ensures that your calibration routines meet strict quality standards, reduces rework, and prevents costly instrumentation errors. Whether you're validating a temperature transmitter or adjusting a pressure switch, the 11 Pro, 14 Pro, and 15 Pro provide laboratory-grade performance in a rugged field tool.

2. Model-Specific Versatility: From Temperature to Pressure

• 11 Pro: The dedicated temperature multifunction process calibrator with manual/automatic thermocouple cold end compensation. Perfect for thermocouple simulation and verification.

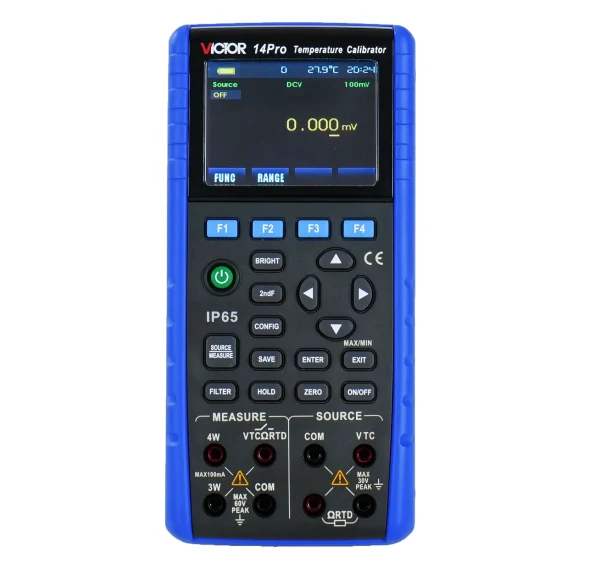

• 14 Pro: Adds measurement and output for DC voltage, resistance, thermocouples, and RTDs (2/3/4-wire). Ideal for calibrating temperature controllers and PLC input cards.

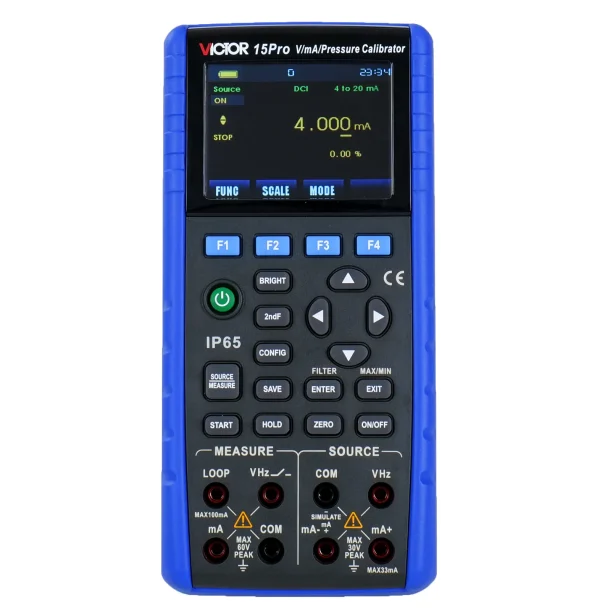

• 15 Pro: The ultimate all-in-one solution. It measures/outputs DC voltage, DC current, frequency, pulses, and continuity. It also integrates a pressure function (using optional pressure modules) to measure pressure, calibrate pressure/voltage transmitters, and test two-wire pressure transmitters and pressure switches. No other multifunction process calibrator in its class offers this breadth.

3. Built-In 24V Loop Power Supply – 15 Pro Exclusive
The 15 Pro features an internal 24V loop power supply, allowing you to power a transmitter while simultaneously measuring milliamps. This eliminates the need for external power supplies or resistors when testing 2-wire loop-powered devices. You can quickly diagnose a 4-20mA loop, check for open circuits, or verify transmitter linearity – all from one handheld device. Combined with DC current output that provides 25%/100% manual stepping, automatic stepping, and ramp output, the 15 Pro automates routine calibration tasks.

4. Advanced Temperature Calibration Capabilities

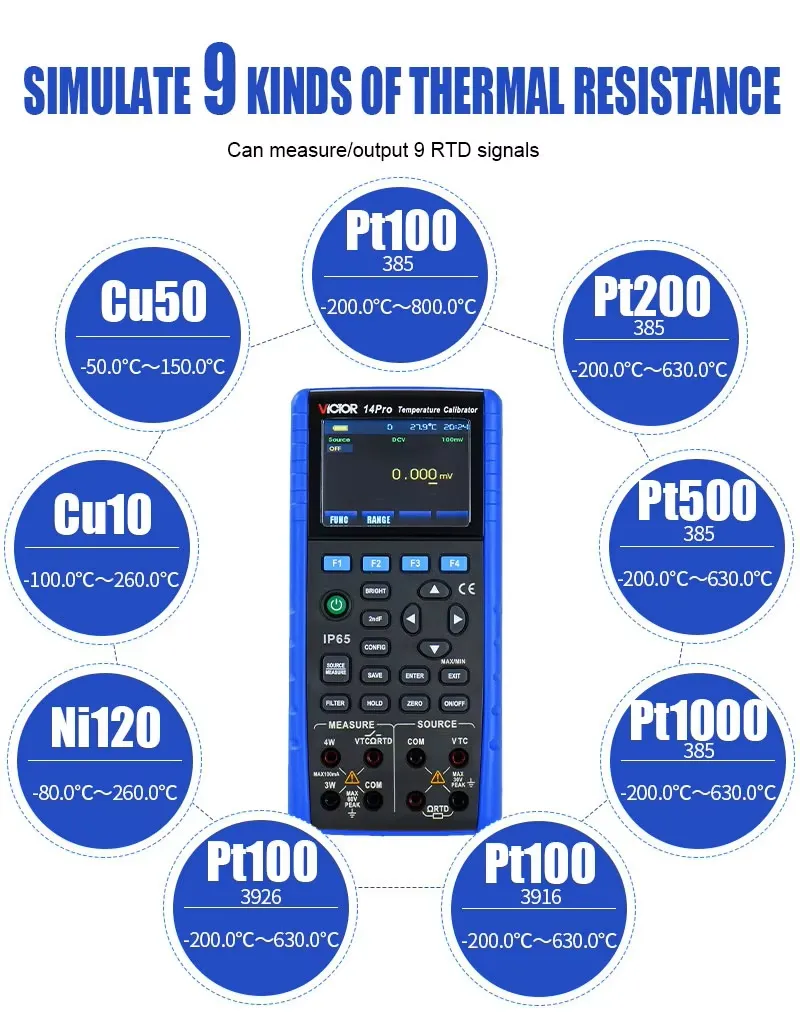

All three models support manual and automatic thermocouple cold junction compensation (CJC). The 14 Pro and 15 Pro go further by supporting resistance and RTD measurement/output in 2-wire, 3-wire, and 4-wire configurations. Three-wire and four-wire connections eliminate lead resistance errors, giving you true accuracy for Pt100, Cu50, and other popular RTDs. For thermocouples, you can simulate and read types J, K, T, E, R, S, B, N – covering virtually every industrial sensor.

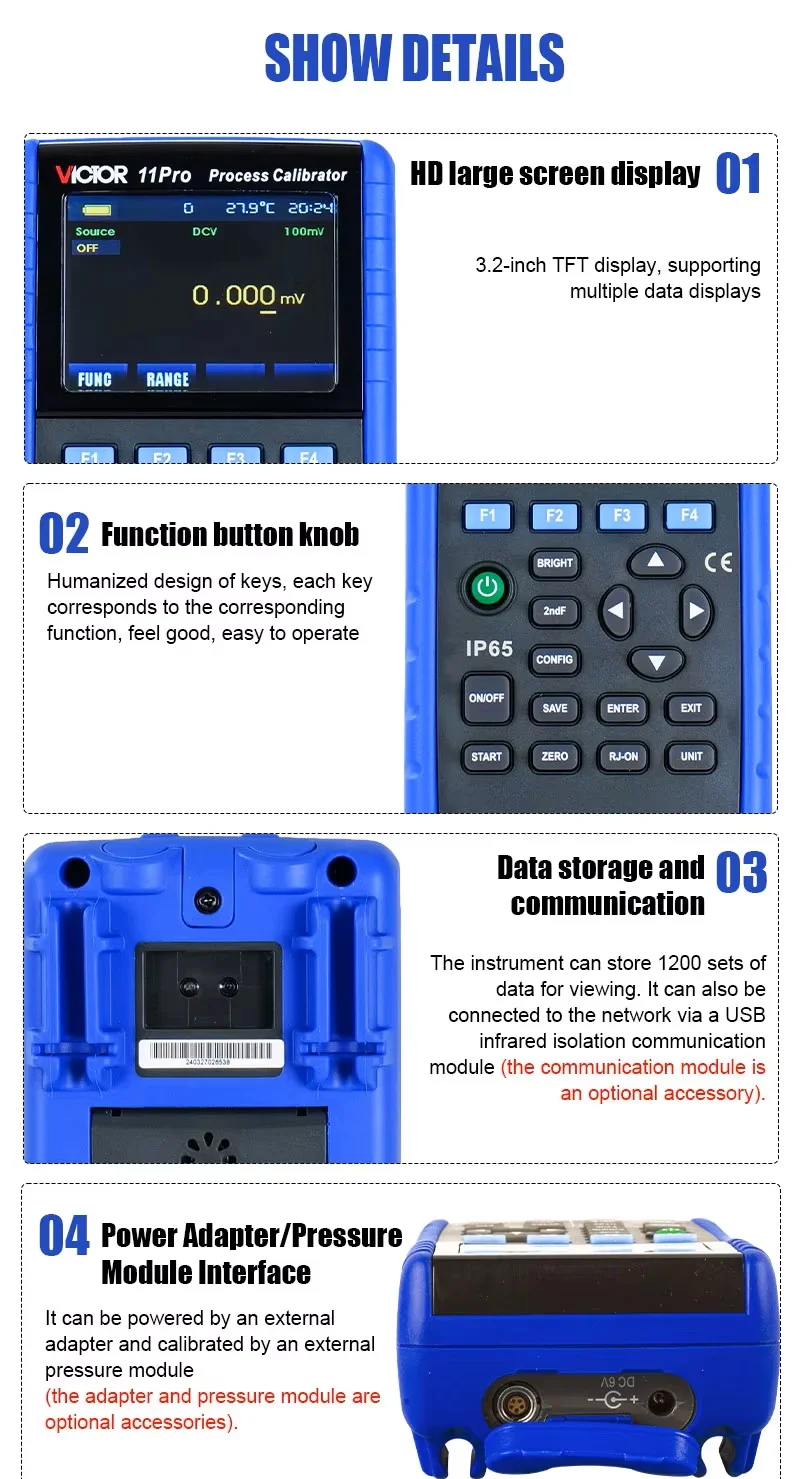

5. 3.2-Inch TFT Display for Multiple Data Views
Unlike simple numeric readouts, the 3.2-inch TFT display supports multiple data displays simultaneously. You can watch input and output values side by side, monitor trend information, or view percentage of 4-20mA span. This visual clarity reduces errors during setup and lets you capture dynamic changes without switching screens.

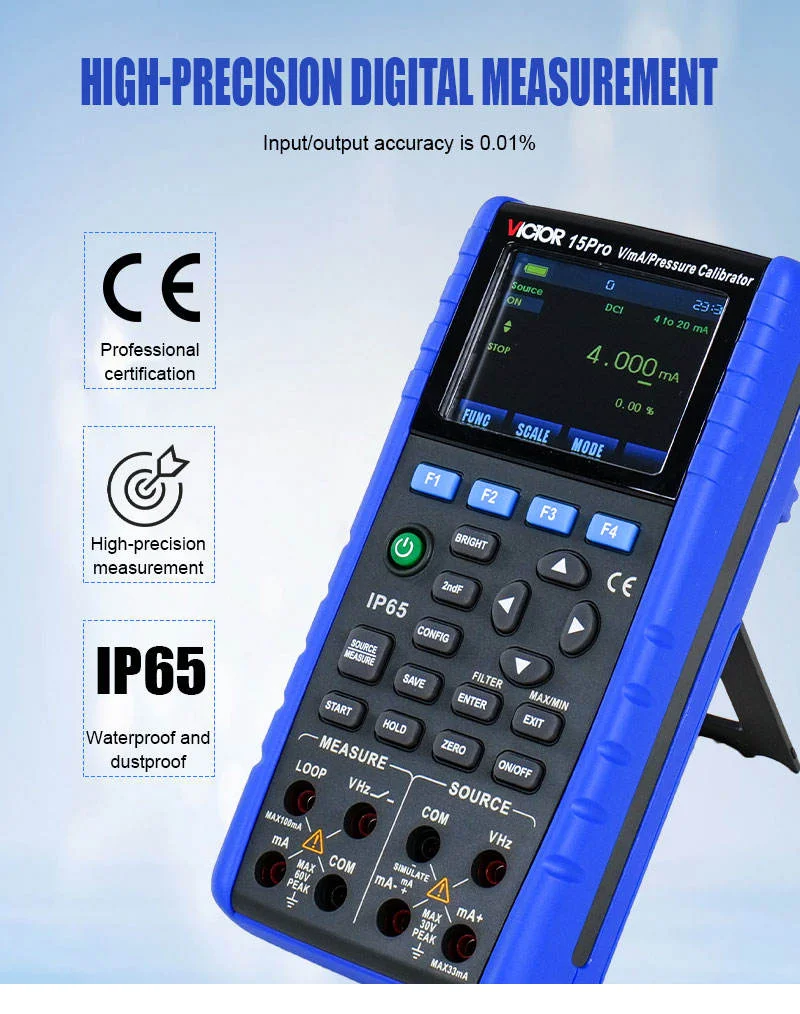

6. IP65 Dust and Water Resistance – Built for the Field
Calibrators often work in harsh environments: cement plants, food processing, outdoor pipe racks, or chemical dosing stations. With IP65 rating, this multifunction process calibrator resists dust ingress and low-pressure water jets. You can confidently use it under light rain or wash down workstations. Paired with dual power options (internal battery or optional power adapter), you get all-day operation without hunting for wall outlets.

7. Time-Saving Output Functions
The DC current output on the 15 Pro includes 25% and 100% manual stepping, automatic stepping, and automatic ramp output. This is a game-changer for valve positioning, chart recorder testing, or ramp/soak controller verification. Set the step value and the calibrator drives the loop – you focus on observing the system response. The analog transmitter mode further simulates a 2-wire transmitter, perfect for receiver testing.

8. Frequency and Pulse Output
Beyond voltage and current, the 15 Pro outputs frequency and number of pulses, making it suitable for calibrating flowmeters, tachometers, and totalizers. Measure frequency from sensors or simulate a pick-up signal – all within the same multifunction process calibrator.

9. Pressure Calibration Ready
The pressure function (15 Pro) measures pressure via optional modules. You can calibrate pressure and voltage transmitters, two-wire pressure transmitters, and pressure switches. This eliminates separate pressure calibrators for basic tasks. Combined with the 24V loop supply and mA measurement, you have a complete pressure-to-current loop tester in one device.

Whether you choose the 11 Pro for temperature, the 14 Pro for temperature + resistance, or the 15 Pro for electrical, frequency, and pressure, you get 0.01% accuracy, IP65 durability, and a brilliant TFT interface. Upgrade your workshop or field kit with a true multifunction process calibrator that does the work of several tools – reliably, accurately, and efficiently.
