Visible Light and Infrared Thermal Imager Camera:-15°C ~ 600°C, 160×120 / 256×192 Optional Resolution,Android-Compatible 328D 328E

Price range: $199.99 through $219.99

The VICTOR 328D/328E is a compact, dual-field infrared thermal imaging camera designed for professionals who require accurate temperature measurement across a wide range of applications. With temperature range of -15°C to 600°C and accuracy of ±2°C or ±2%, it handles both low-voltage electrical inspections and high-temperature industrial diagnostics with ease. Users can choose between 160×120 (328D) or 256×192 (328E) thermal resolutions, paired with visible light imaging (640×480) for easy image fusion and annotation. The device supports photo and video capture, six color palettes, real-time flipping, interval display, and high-temperature alarm settings. Weighing only 22g with IP54 protection, it operates reliably in tough conditions and connects seamlessly to Android 10.0+ devices. Certified with FC, RoHS, and CE, this infrared thermal imaging solution balances performance, portability, and professional-grade features for field service, building inspection, electrical maintenance, and R&D thermography.

SKU: 328D / 328E Categories: , , Brand:
Visible Light and Infrared Thermal Imager
Visible Light and Infrared Thermal Imager

Reviews

There are no reviews yet.

Be the first to review “Visible Light and Infrared Thermal Imager Camera:-15°C ~ 600°C, 160×120 / 256×192 Optional Resolution,Android-Compatible 328D 328E”

Your email address will not be published. Required fields are marked *

VICTOR 328D/328E is a compact, dual-field infrared thermal imaging camera designed for professionals who require accurate temperature measurement across a wide range of applications.

  • Professional-Grade Infrared Thermal Imaging with Ultra-Wide Temperature Range
    This infrared thermal imaging camera supports a measurement range from -15°C to 600°C, making it suitable for everything from low-temperature electrical inspections to high-temperature industrial equipment monitoring. With NETD <50mK @25°C, it delivers exceptional thermal sensitivity to capture even the smallest temperature differences.
  • Two Resolution Options for Flexible Field of View
    Choose between 328D (160×120) and 328E (256×192) infrared thermal imaging resolutions, with corresponding FOV angles of 56°×42° or 35°×27°. This allows users to match the device to specific detection distances and target sizes, balancing wide-area coverage with fine detail capture.

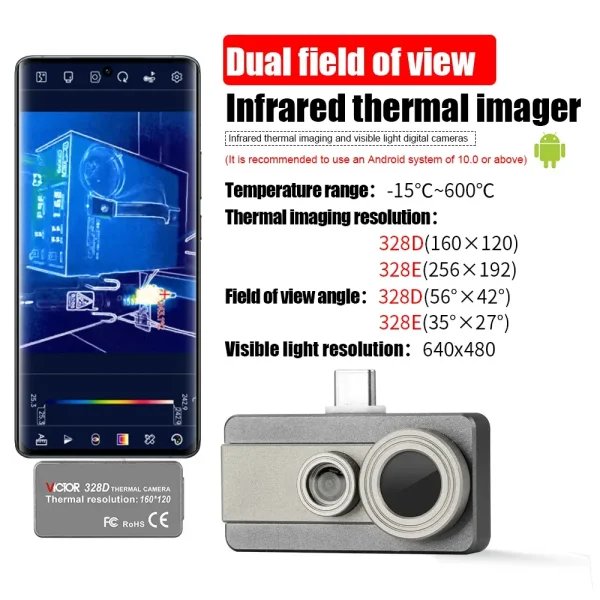

  • Dual-Fusion of Visible Light and Infrared Thermal Imaging
    The built-in 640×480 visible light camera supports fusion with infrared thermal imaging, making it easier to locate and identify problem areas. Real-time flipping and image overlay features further enhance inspection accuracy and operational convenience.
  • High Precision and Reliable Accuracy
    Measurement accuracy is rated at ±2°C or ±2% of the reading, ensuring dependable results across the entire -15°C to 600°C range. Whether used for building diagnostics, circuit board analysis, or mechanical inspections, this infrared thermal imaging device provides consistent, repeatable performance.
  • Rich Image Modes and Real-Time Display Functions
    Includes six color palettes: Iron Red, White Heat, Black Heat, Rainbow, Red Heat, and Cold Blue. Interval display and real-time flipping are supported, allowing operators to adapt infrared thermal imaging output to different environments and inspection routines.
  • Built-in Photography, Videotape, and Image Editing
    The camera supports both photo and video capture. On-device image editing includes graffiti and text notes, enabling immediate annotation of thermal images. This makes infrared thermal imaging field reporting faster and more efficient.
  • Fully Configurable with High-Temperature Alarm

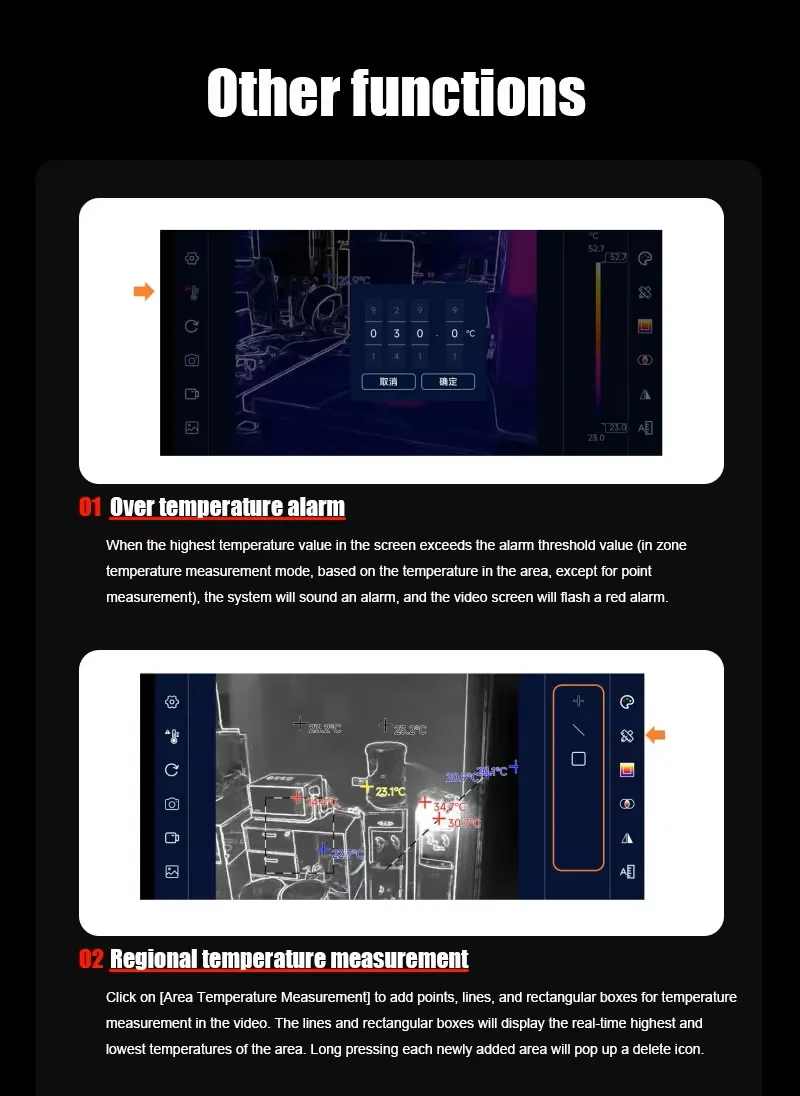

    The setup menu allows adjustment of parameters, temperature units, language, and high-temperature alarm thresholds. This ensures the infrared thermal imaging camera can be tailored to specific safety or operational standards on the job site.
  • Durable and Compact for Field Use
    With IP54 protection, the device operates reliably in dusty or damp environments. Working temperature ranges from -10°C to 75°C, while storage extends from -45°C to 85°C. Weighing only 22g and measuring 51.6mm × 34mm × 13.2mm, this infrared thermal imaging camera is highly portable without sacrificing ruggedness.
  • Android-Compatible for Easy Integration
    Recommended for Android 10.0 or above, the camera connects seamlessly to smartphones or tablets. This allows users to leverage infrared thermal imaging capabilities directly on mobile devices for viewing, analysis, and sharing.
  • Safety and Compliance Certifications
    Certified with FC, RoHS, and CE markings, ensuring that this infrared thermal imaging product meets international standards for electrical safety, environmental compliance, and electromagnetic compatibility.
