Victor 380S PCB Circuit Board Thermal Imaging Analyzer – -15℃ to 600℃, 256×192 IR Resolution, Short Circuit & Leakage Quick Locator for R&D and Repair

High-Performance Infrared Thermal Imaging for Precision PCB Diagnosis

• As a dedicated PCB Circuit Board Thermal Imaging Analyzer, the Victor 380S delivers 256x192 infrared resolution, enabling engineers and repair technicians to identify tiny overheating components, micro-shorts, and solder joint anomalies without physical contact.
• With a 25Hz refresh rate, this PCB Circuit Board Thermal Imaging Analyzer provides smooth real‑time temperature tracking, making it easy to spot dynamic thermal events such as intermittent short circuits, power regulator instability, or sudden current leakage during live operation.
• The 56° x 42° field of view (FOV) perfectly matches typical benchtop working distances, allowing this PCB Circuit Board Thermal Imaging Analyzer to cover large sections of a circuit board in a single shot, drastically speeding up fault finding on dense PCB assemblies.

Wide Temperature Range for Versatile Applications

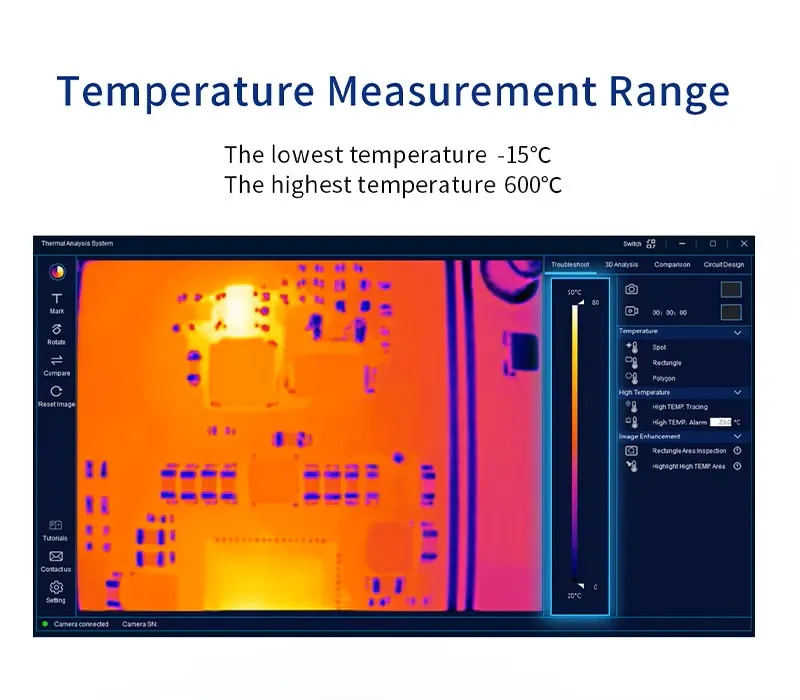

• Exceptional measurement range from -15℃ to 600℃ (5℉ to +1112℉) ensures this PCB Circuit Board Thermal Imaging Analyzer handles everything from cold start monitoring of sensitive chips to high‑current power stages, MOSFETs, and even soldering iron verification.
• Measurement distance of 100mm to 150mm is specifically optimized for circuit board work, keeping this PCB Circuit Board Thermal Imaging Analyzer close enough to capture fine thermal gradients while maintaining a safe gap from live high‑voltage traces.
• DC 5V input via USB Type‑C interface provides universal powering and data connection – simply plug this PCB Circuit Board Thermal Imaging Analyzer into any computer, power bank, or USB charger, making it a truly portable thermal solution for field service and lab use.

Robust Design for the Repair Bench and Production Floor

• Operating temperature range of 0℃ to 50℃ guarantees stable performance for this PCB Circuit Board Thermal Imaging Analyzer in normal workshop environments, while storage temperature from -20℃ to 60℃ protects the device during transport or storage in vehicles and toolboxes.
• Overall weight of 1200g strikes an ideal balance between stability on a desk mount and portability; this PCB Circuit Board Thermal Imaging Analyzer won’t tip over when connected to heavy USB cables, yet it’s light enough to move between workstations.

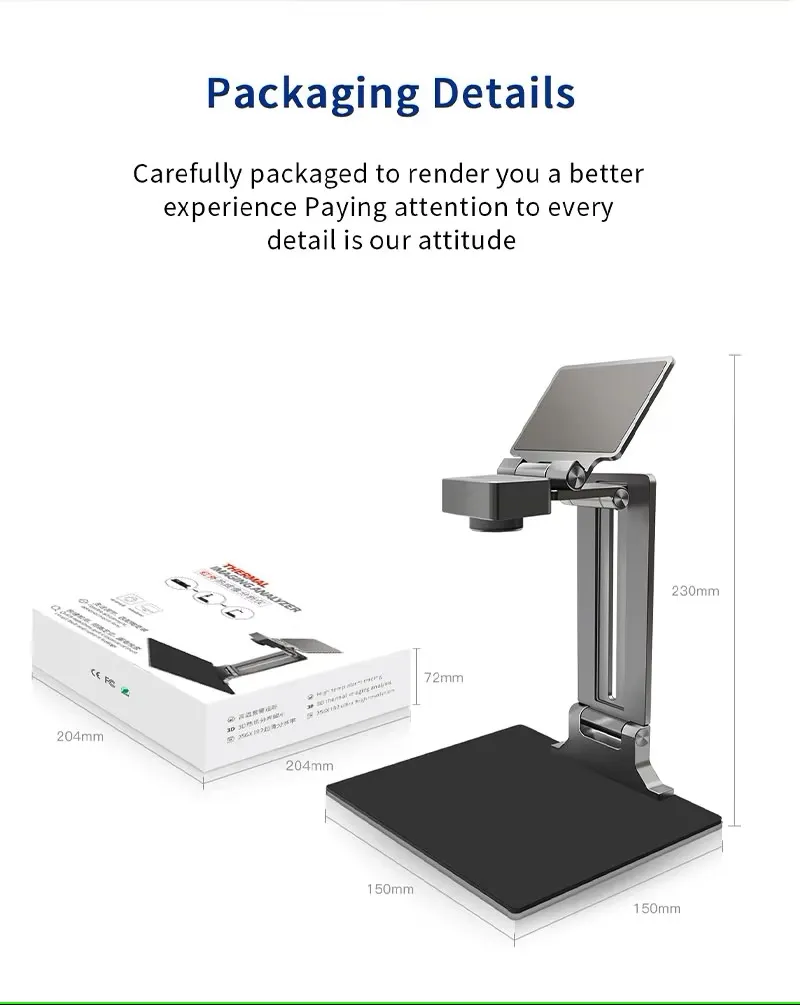

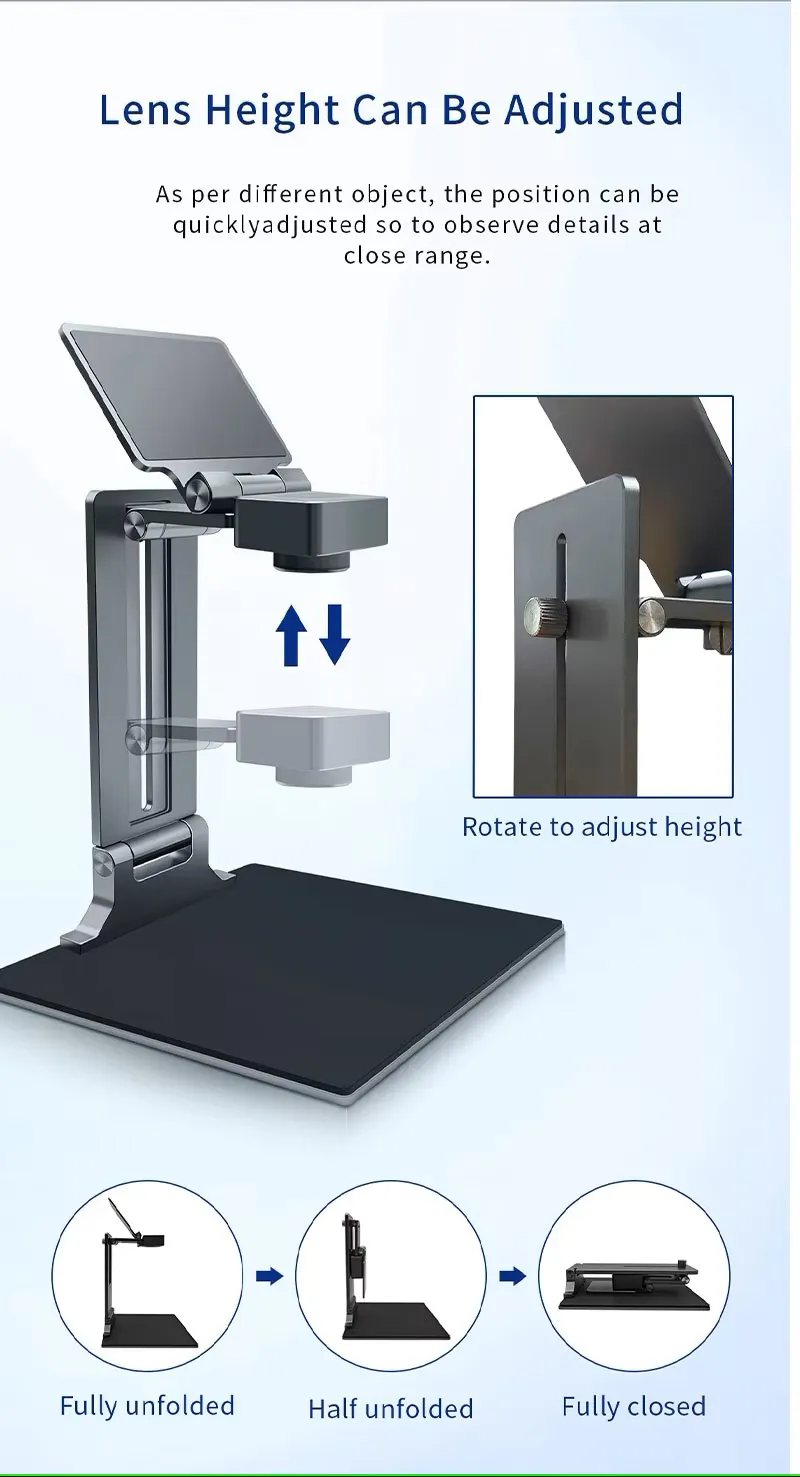

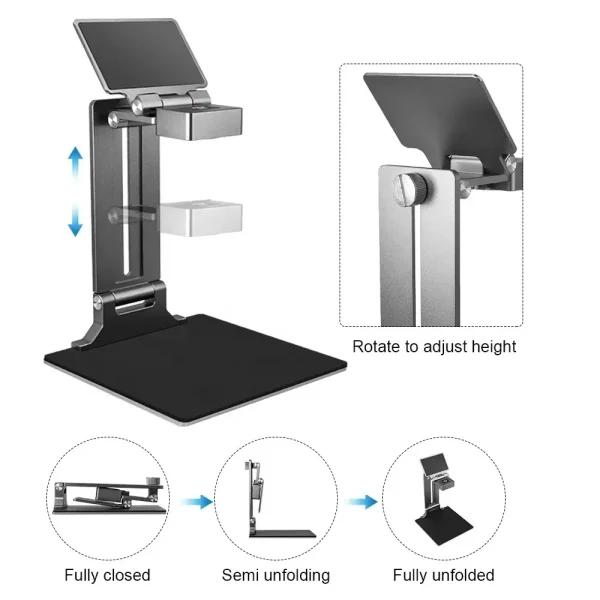

• Product size of 150mm x 150mm x 230mm fits neatly on crowded repair benches, and the flexible stand (mentioned in the accessories) allows flexible adjustments and optional macro lens mounting for extreme close‑up PCB inspection.

Quick Detection of Short Circuits, Leakage, and Complex Bugs

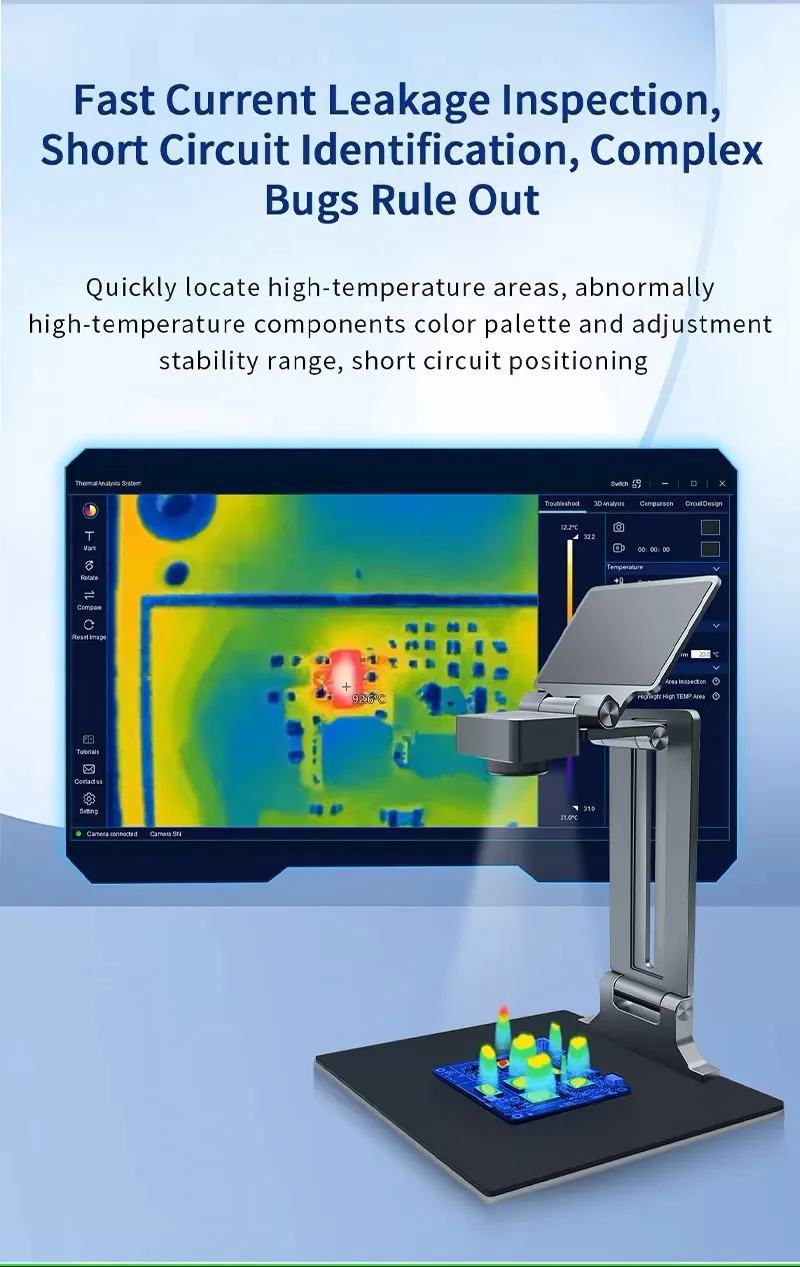

• “Quick leakage check” capability – with this PCB Circuit Board Thermal Imaging Analyzer, visualize current leakage paths instantly as abnormal heat patterns, slashing troubleshooting time from hours to minutes.
• “Short circuit location” feature – this PCB Circuit Board Thermal Imaging Analyzer pinpoints the exact spot of a dead short without injecting high current or using expensive milliohmmeters; simply power the board and watch for the hottest component.

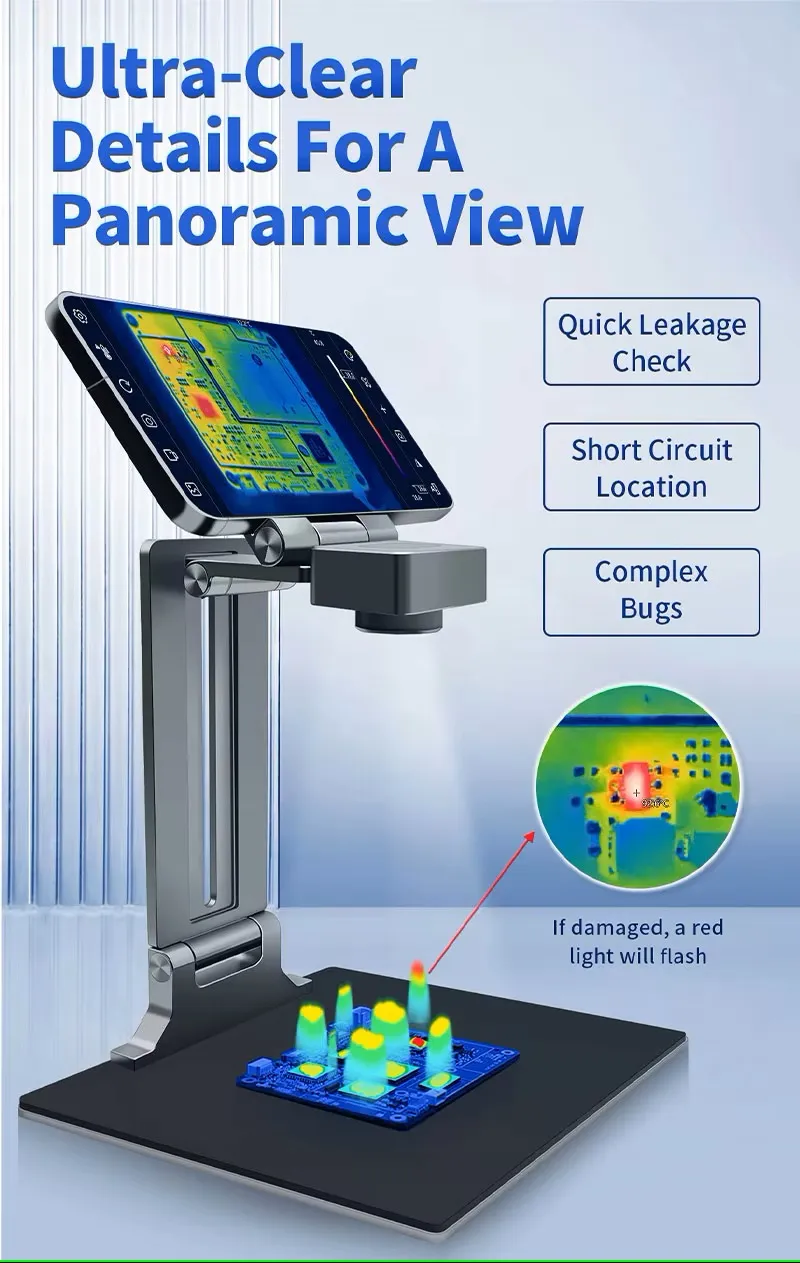

• “If damaged, a red light will flash” – an intelligent visual alert that draws your eye immediately to failing components, preventing oversight and reducing rework.
• Ideal for “complex bugs” that are invisible to multimeters or oscilloscopes, such as partially shorted capacitors, degraded VRM phases, or cracked BGA balls that only reveal themselves under thermal stress – all easily uncovered by this PCB Circuit Board Thermal Imaging Analyzer.

Advanced Software and User Experience

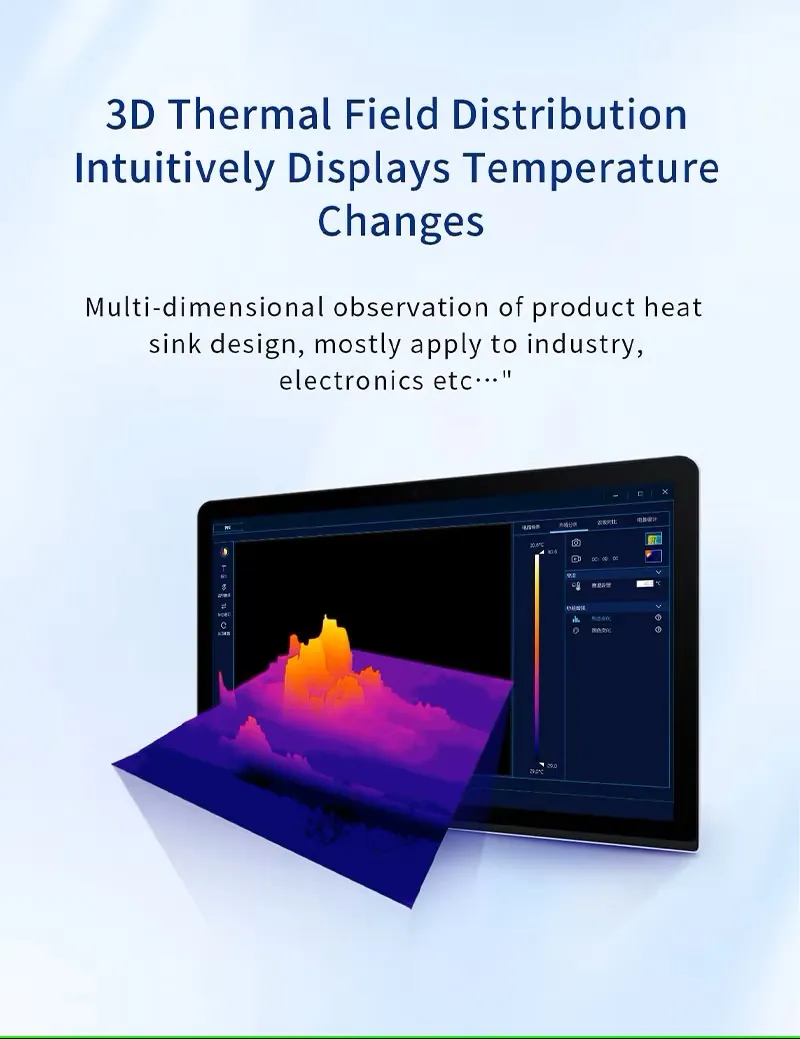

• 3D thermal image analysis – transform flat infrared data into an intuitive elevation map where higher peaks represent hotter areas, perfect for comparing thermal performance across multiple identical boards using this PCB Circuit Board Thermal Imaging Analyzer.

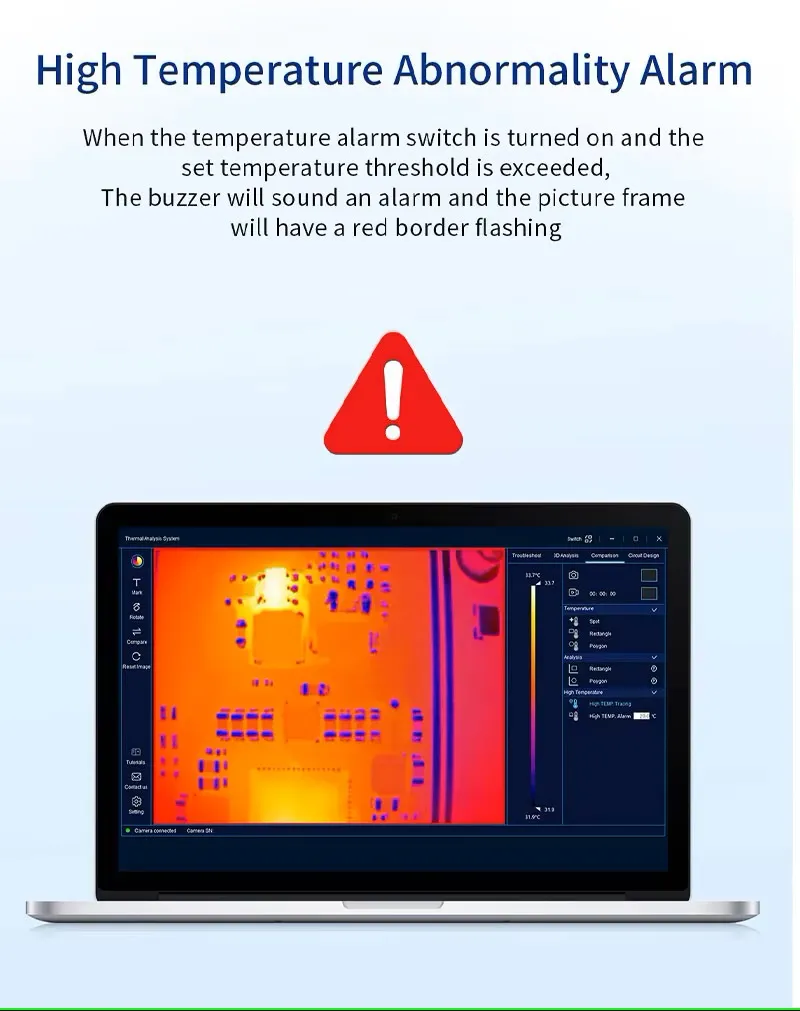

• High temperature alarm can be set to trigger when any component exceeds a user‑defined threshold, providing automatic protection during long‑duration burn‑in tests or unattended experiments.

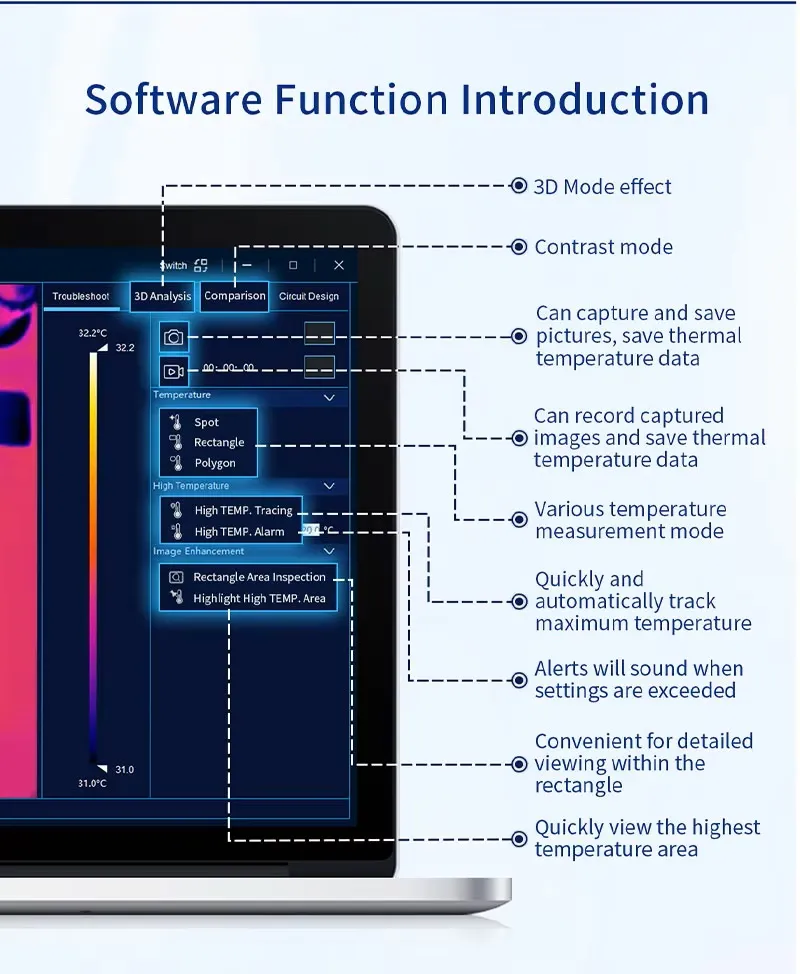

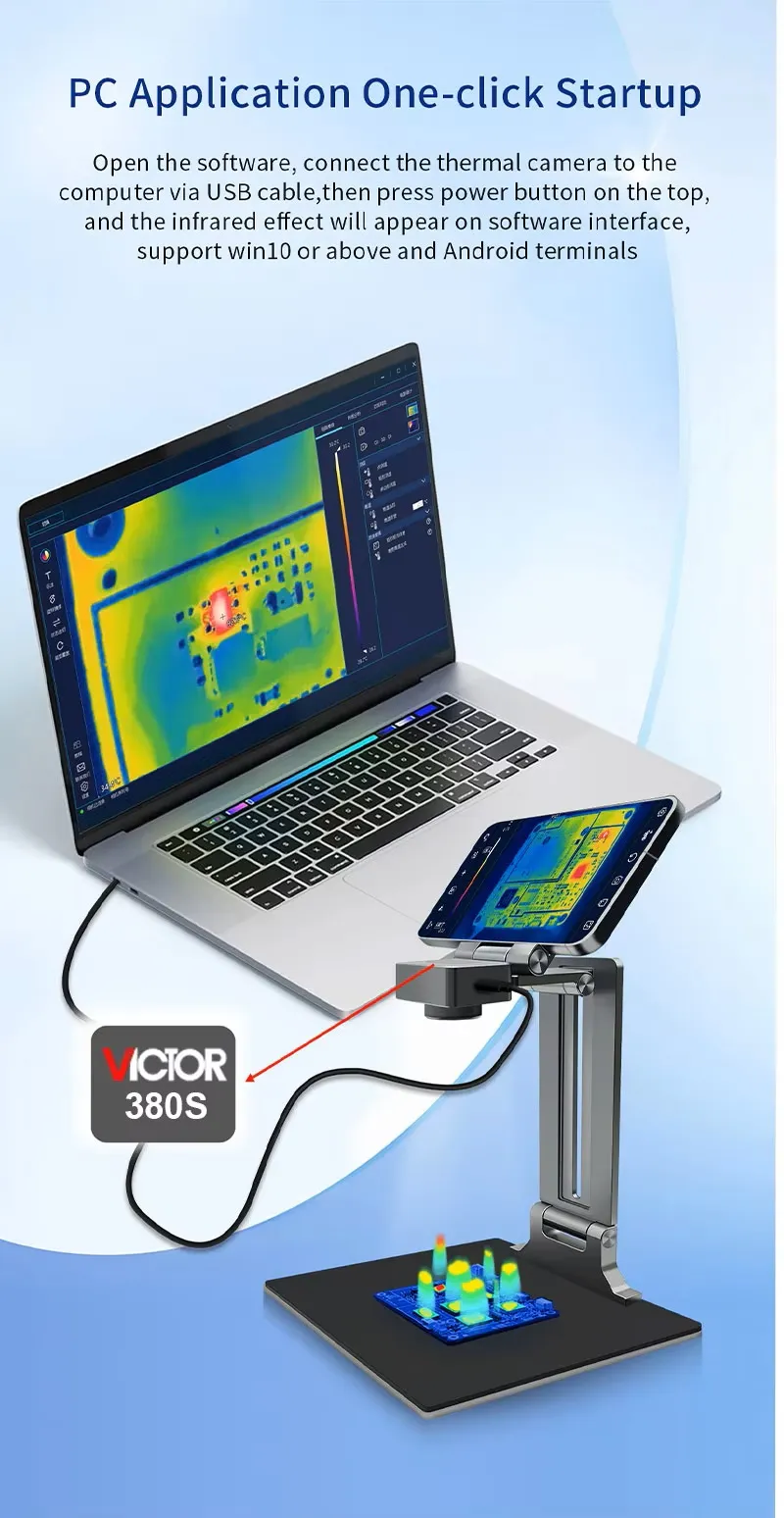

• Computer/Phone connection via USB and companion software lets you view live thermal streams from this PCB Circuit Board Thermal Imaging Analyzer on a large monitor or even a mobile device, facilitating team collaboration and remote technical support.
• Take photos and videos of thermal sequences, then store them internally or on the included USB flash drive, building a valuable failure library for training, compliance, or R&D records.

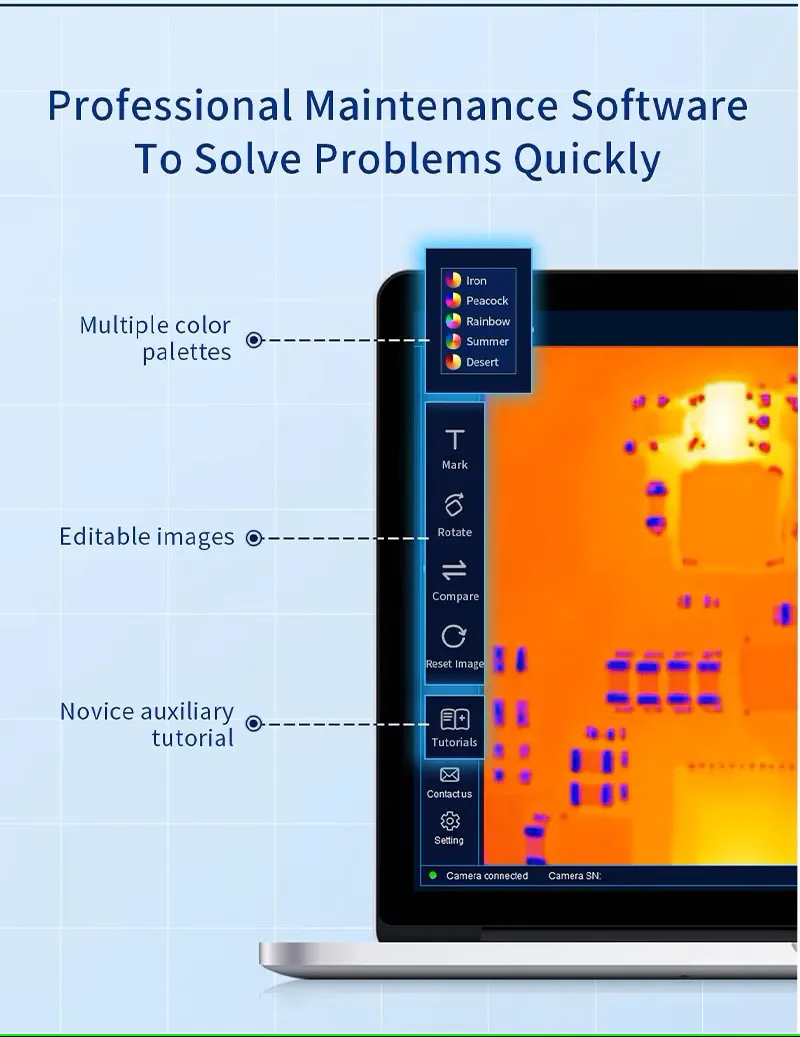

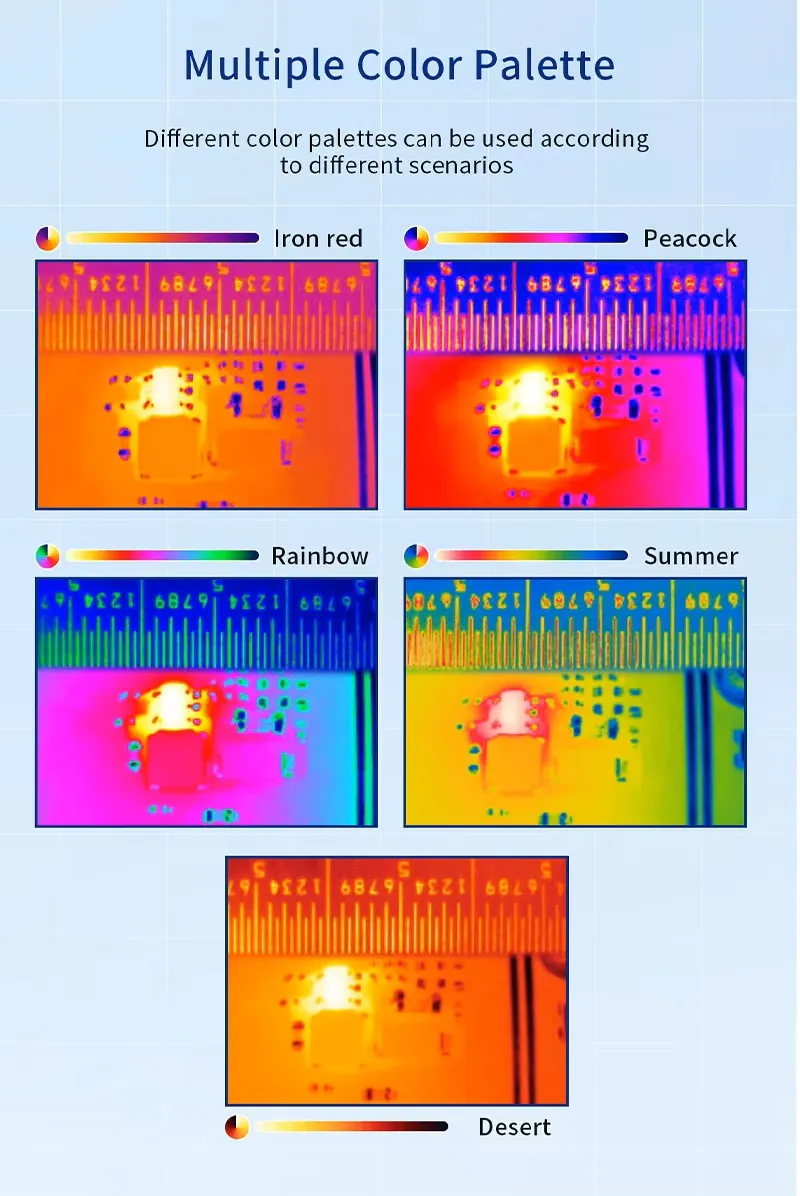

• Multi-color display options (ironbow, rainbow, grayscale, etc.) help highlight subtle temperature differences on densely packed PCBs, making it easier to distinguish a 1℃ rise that signals early component aging.

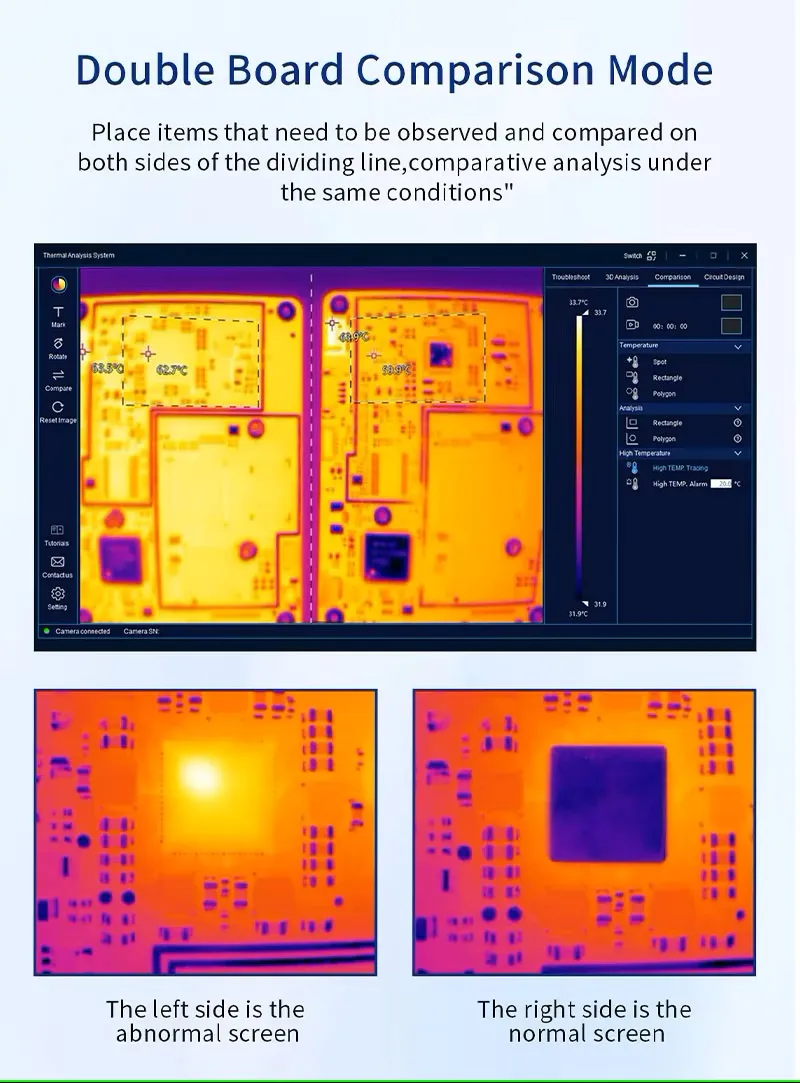

• Data storage and recall functionality allows side‑by‑side comparison of “before vs after” repairs, ensuring that the fix truly resolved the thermal anomaly.

Complete Package for Immediate Use

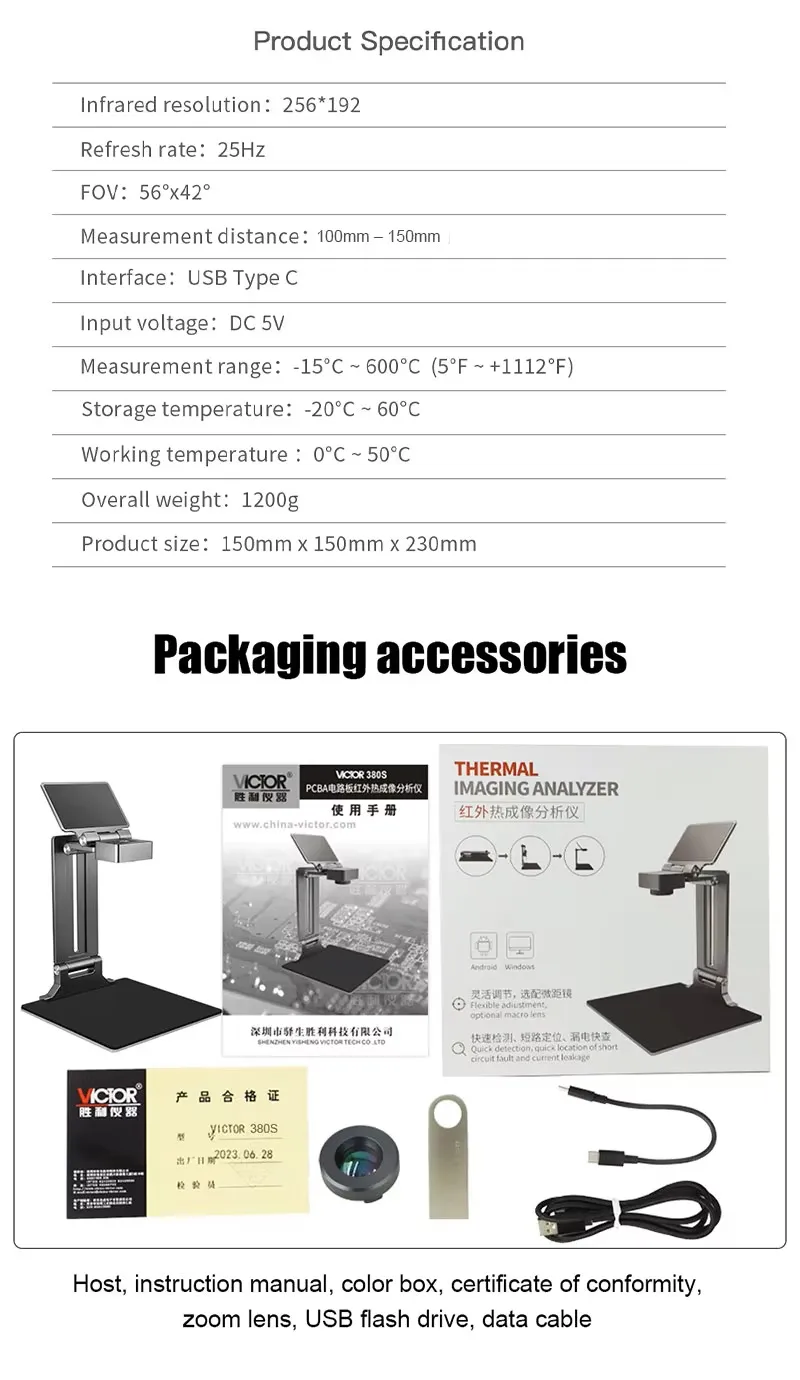

• Supplied as a host unit, instruction manual, color box, certificate of conformity, zoom lens, USB flash drive, and data cable – everything you need to begin using this PCB Circuit Board Thermal Imaging Analyzer right out of the box.
• Manufactured by Victoru , a brand known in the instrumentation field, with a 2023.06.28 inspection stamp, indicating quality control and traceability.

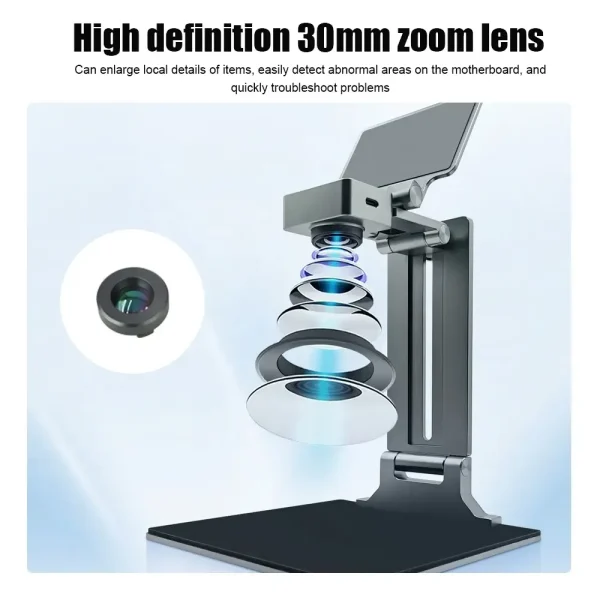

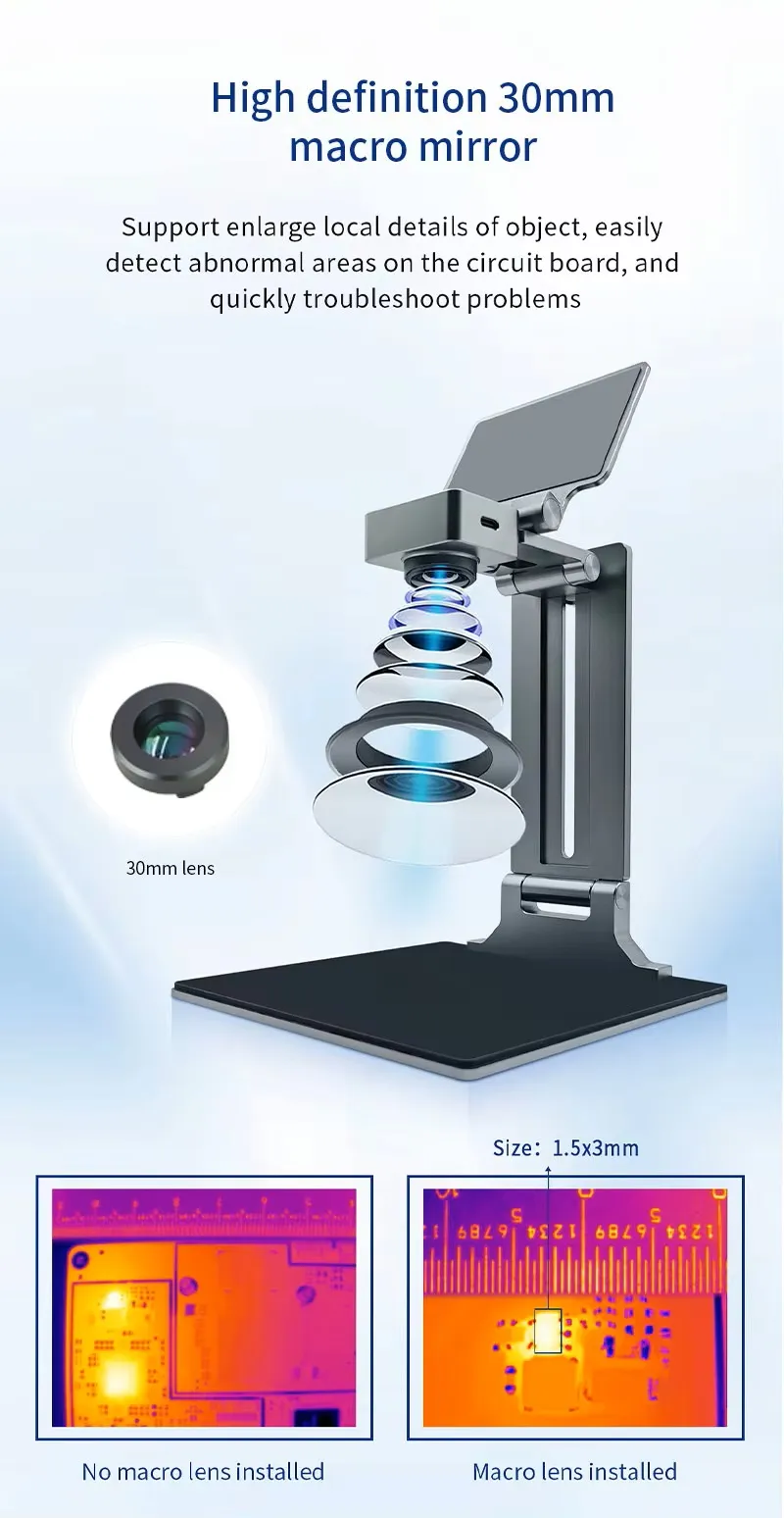

• The zoom lens accessory (included) brings extremely fine detail into view, enabling inspection of individual 0402 or 0201 passive components, bond wires, and ultra‑fine pitch connectors.
• Android & Windows compatibility means you can use this PCB Circuit Board Thermal Imaging Analyzer with virtually any modern computer or tablet – no proprietary OS lock‑in.

Workflow Efficiency Gains

• “Fast detection, short circuit fault and current leakage” as advertised directly on the package – this PCB Circuit Board Thermal Imaging Analyzer is purpose‑built for electrical debug, not repurposed from building inspection cameras.
• “Flexible adjustments, optional macro lens” and desktop‑optimized form factor allow you to position this PCB Circuit Board Thermal Imaging Analyzer exactly where you need it, freeing both hands to probe or adjust the board under test.
• Because the input voltage is standard DC 5V, you can even power this PCB Circuit Board Thermal Imaging Analyzer directly from a circuit board’s own USB port to check for self‑heating issues under realistic power conditions.

Reliability and Long-Term Value

• Designed for working temperature up to 50℃, so the electronics inside this PCB Circuit Board Thermal Imaging Analyzer remain stable even when left running beside other hot test equipment.
• Refresh rate of 25Hz exceeds many low‑cost thermal cameras (often 9Hz or less), providing flicker‑free live video that reduces eye strain during extended debug sessions.
• The -15℃ minimum measurement temperature allows cold‑spray testing of intermittently failing components – cool a suspect part and watch how quickly it warms up to identify marginal thermal runaway using this PCB Circuit Board Thermal Imaging Analyzer.
