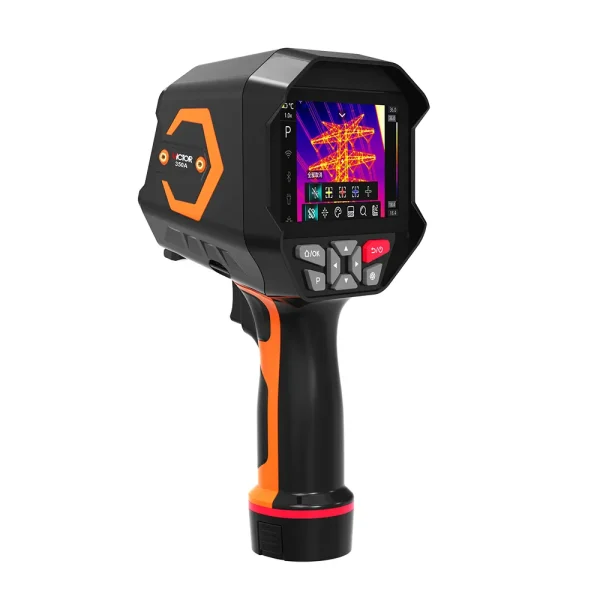

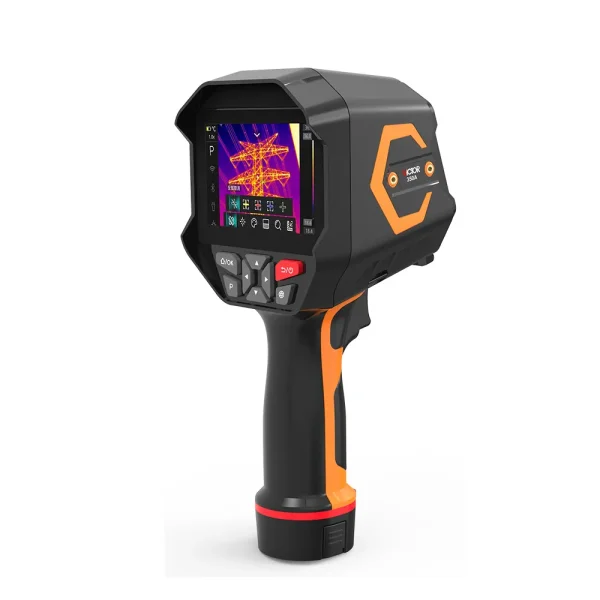

Victor High-Precision Industrial Thermal Imager , touch screen,APP-20°C to 1200°C , 640×512 Resolution and Laser Ranging 350 350A

Price range: $1,199.99 through $2,999.99

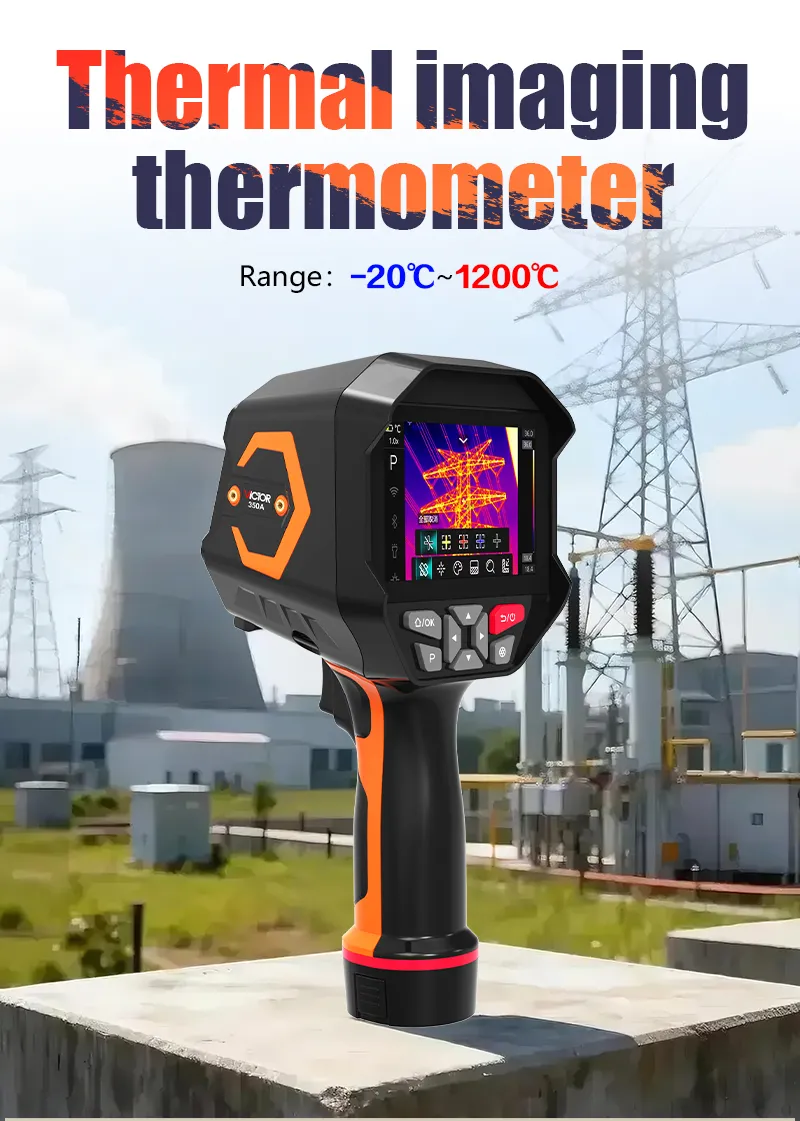

This industrial thermal imager (Models 350 / 350A) combines a wide ‑20°C to 1200°C temperature range, high 640×512 infrared resolution (or 384×288), and <40mK sensitivity for precise thermal analysis. Interchangeable lenses, a 4.3‑inch touchscreen, 8‑megapixel visible light, and multiple fusion modes simplify fault detection. With WiFi/Bluetooth, dedicated APP, offline analysis software, 40m laser ranging, 5000mAh removable battery, and expandable storage (up to 512GB), it serves professionals in electrical maintenance, building diagnostics, mechanical inspection, and R&D. The robust physical design withstands tough industrial environments while delivering accurate, repeatable results.

SKU: 350/350A Categories: , , Brand:
Industrial Thermal Imager
Industrial Thermal Imager



Reviews

There are no reviews yet.

Be the first to review “Victor High-Precision Industrial Thermal Imager , touch screen,APP-20°C to 1200°C , 640×512 Resolution and Laser Ranging 350 350A”

Your email address will not be published. Required fields are marked *

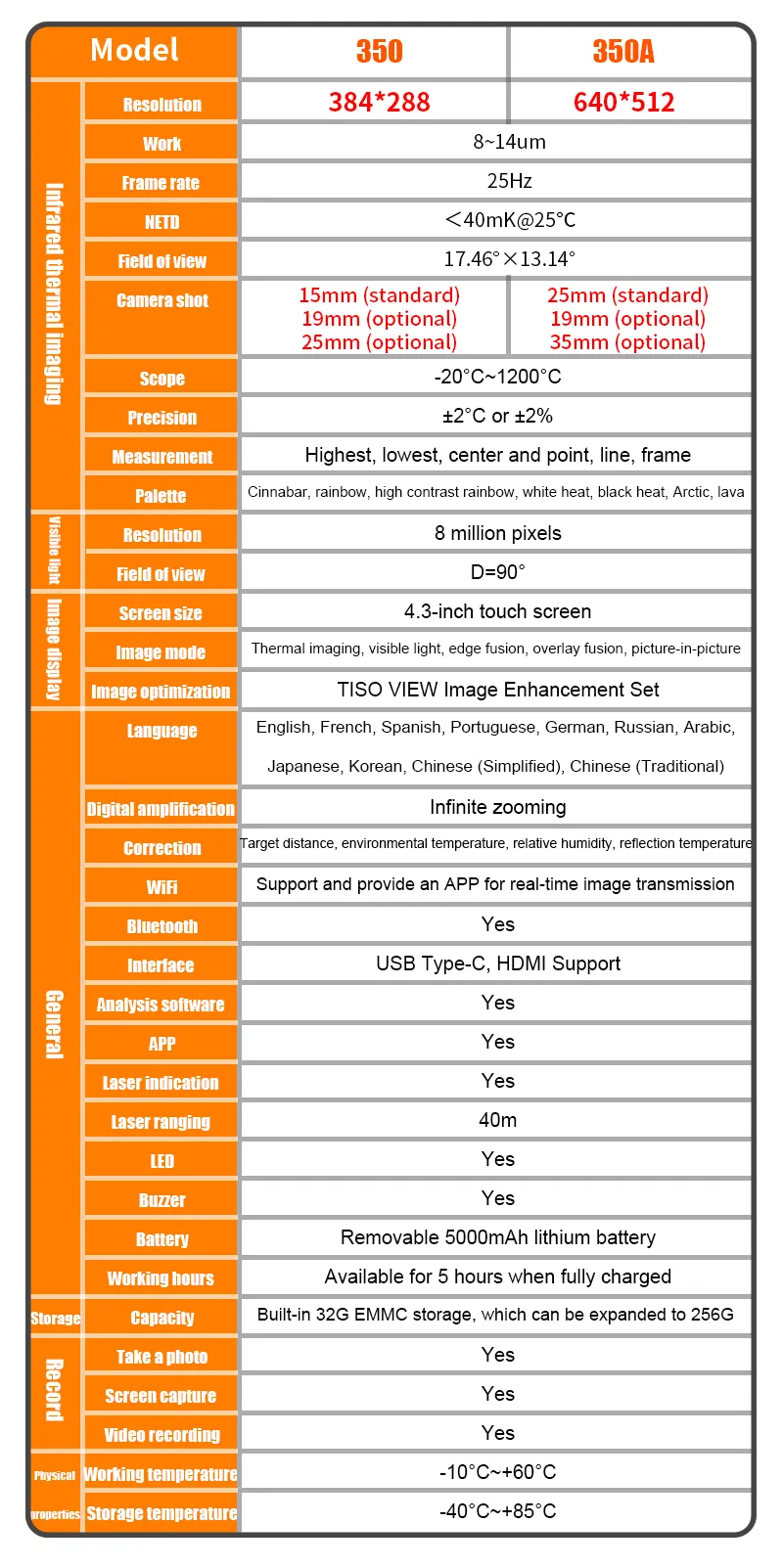

  • Extensive temperature range & high accuracy
    This thermal imager measures from -20°C to 1200°C, covering everything from low-temperature electronics to high-temperature industrial processes. With ±2°C or ±2% accuracy, it ensures reliable readings even in demanding environments. NETD <40mK@25°C captures the smallest temperature differences, making it ideal for preventive maintenance, electrical inspections, and R&D.

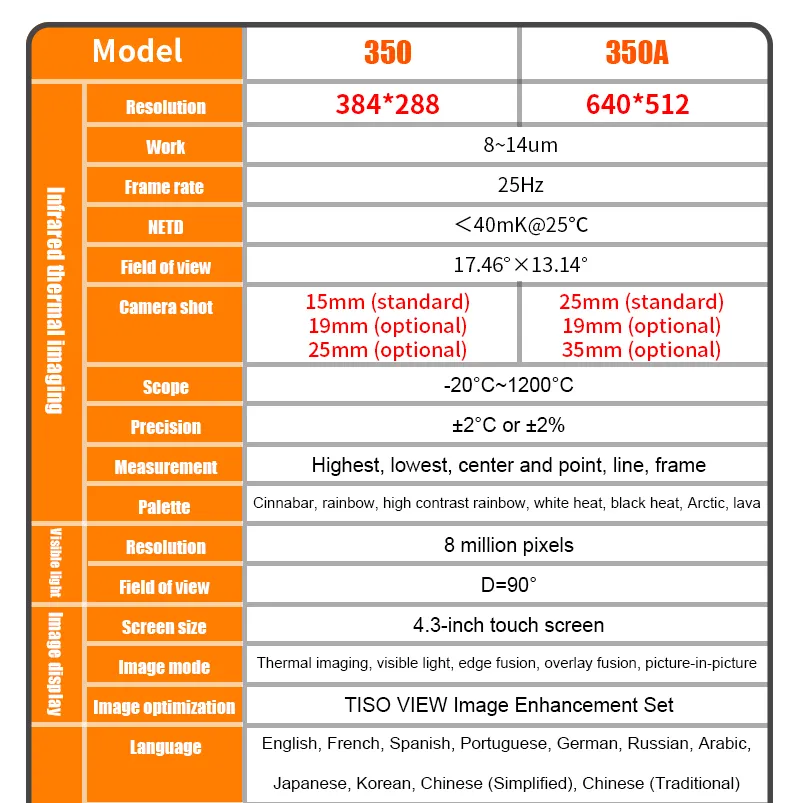

  • Two resolution options for different needs
    Choose between 384×288 (Model 350) and 640×512 (Model 350A) infrared resolution. The higher 640×512 option delivers sharper thermal images, revealing finer details on circuit boards, mechanical parts, and building envelopes – critical for professional thermography.
  • Interchangeable lenses for flexible working distance
    Model 350 comes standard with a 15mm lens (optional 19mm/25mm). Model 350A includes a 25mm standard lens (optional 19mm/35mm). This lets you adapt the field of view – from wide-area scanning to long-distance targeting – without changing the main unit.

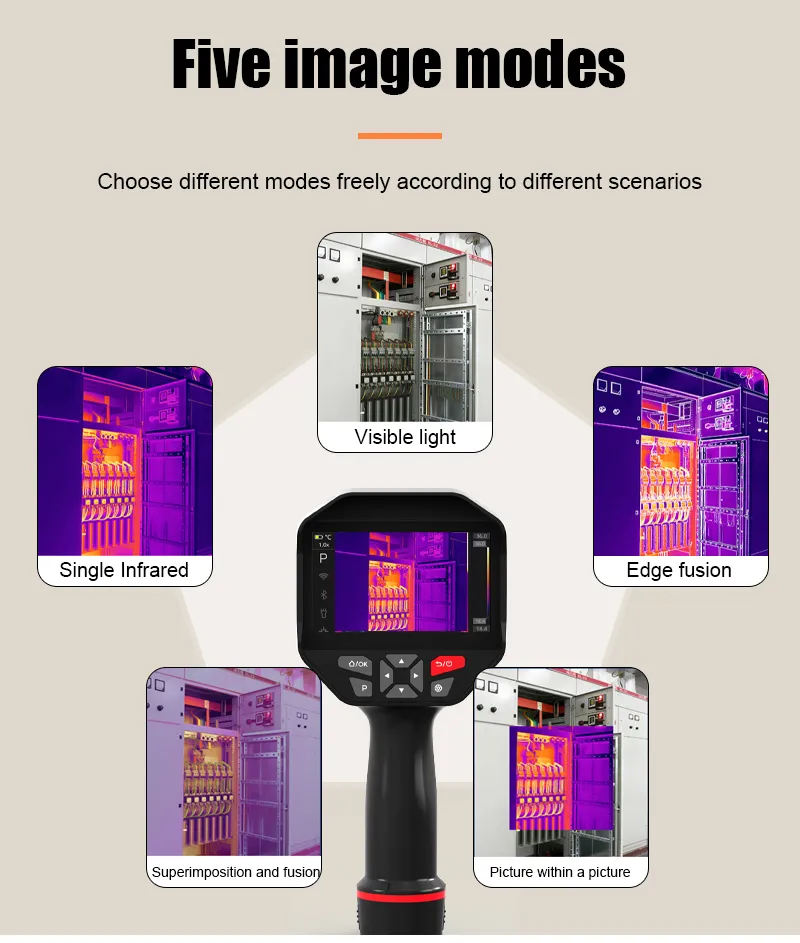

  • Multi-functional visual & thermal fusion
    An 8‑megapixel visible light camera with a 90° field of view supports edge fusion, overlay fusion, and picture-in-picture. You can instantly compare thermal anomalies with real‑world visuals, making reports and on‑site diagnosis faster and more intuitive.

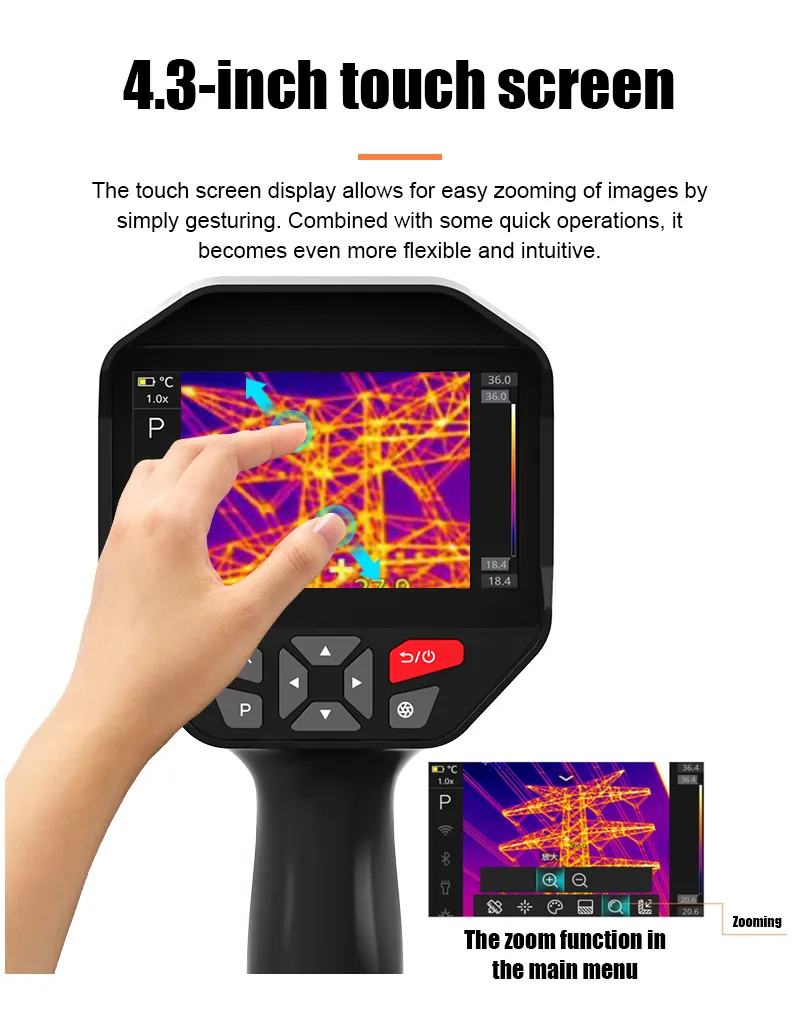

  • Large 4.3‑inch touchscreen & intuitive operation

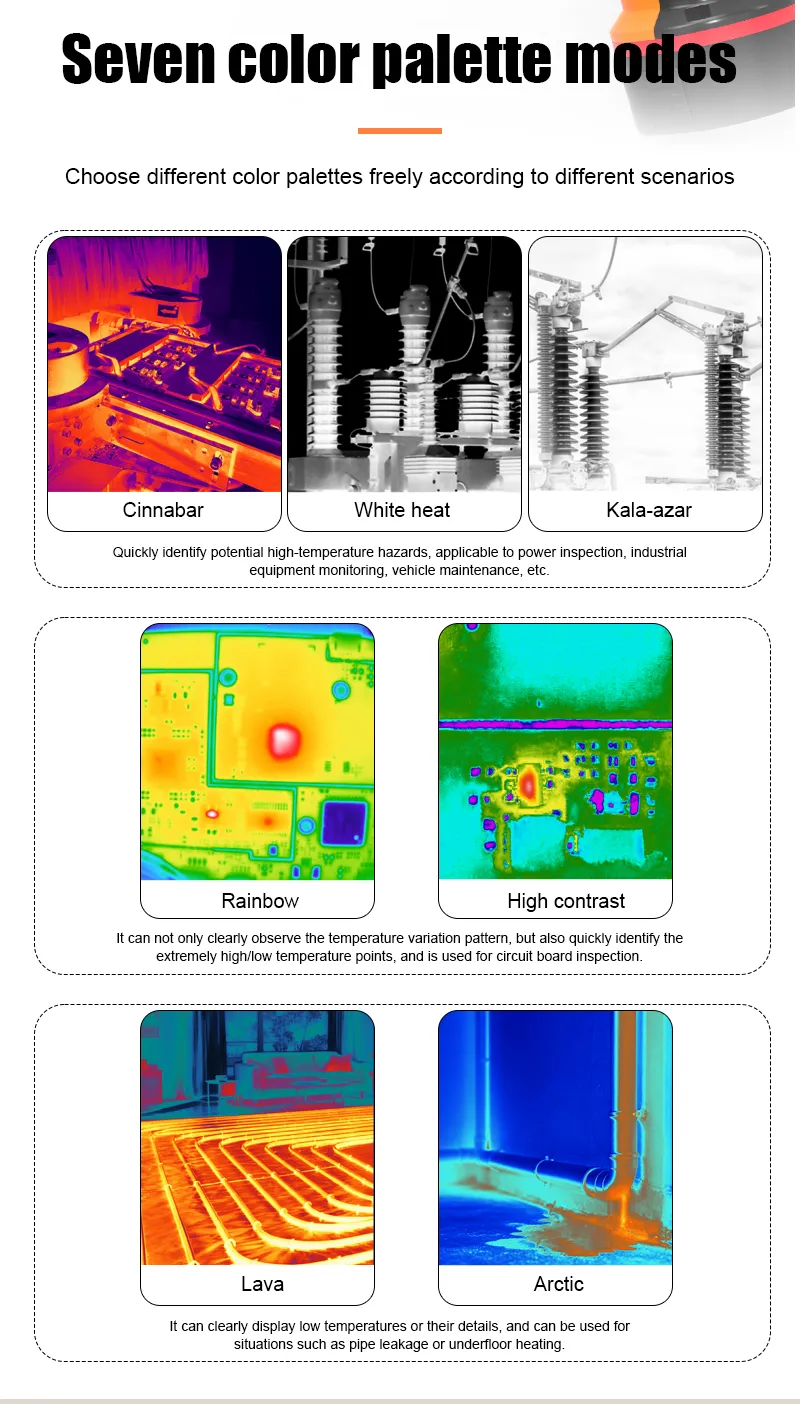

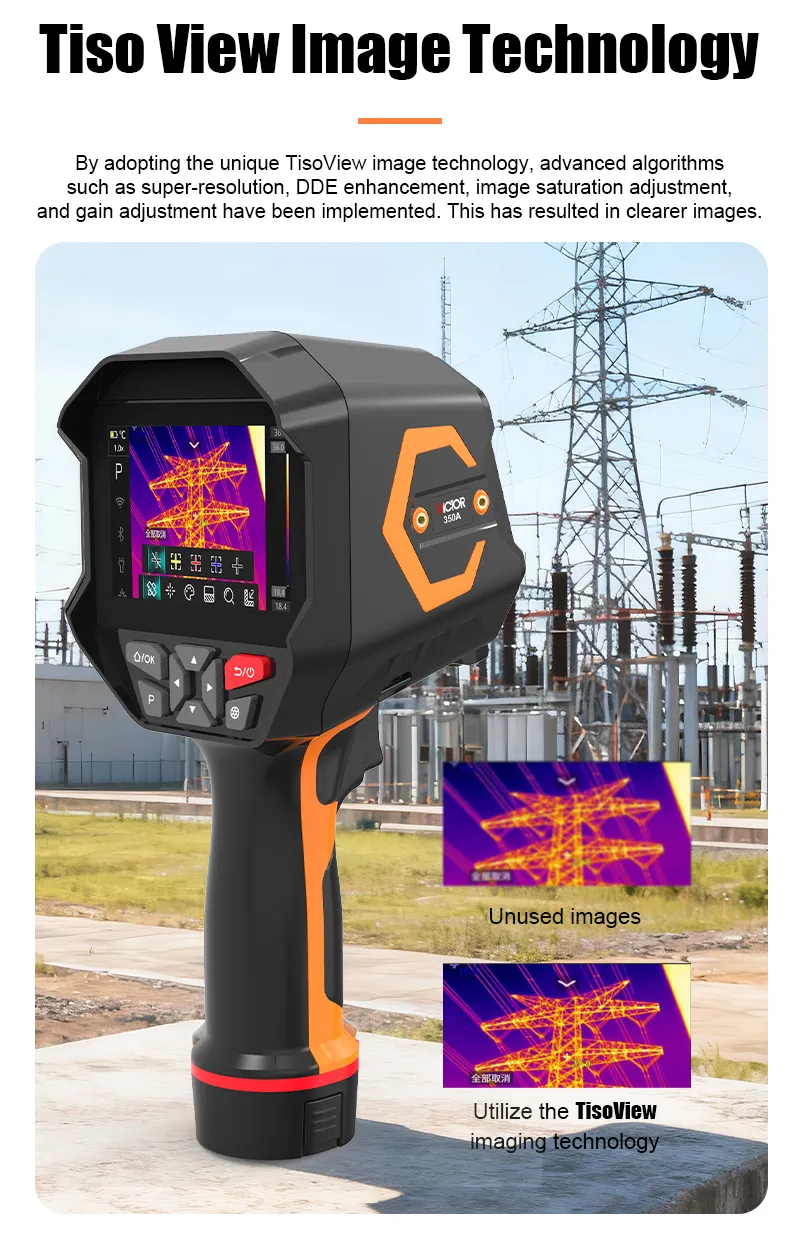

    The 4.3‑inch touch screen offers clear image preview and menu navigation. Combined with TISO VIEW image optimization, even novice users can quickly adjust palettes – cinnabar, rainbow, white/black heat, arctic, lava – to highlight temperature contrasts.
  • Unlimited digital zoom & comprehensive measurement tools
    Infinite zooming lets you inspect tiny targets without losing detail. Measurement features include highest/lowest/center point, line analysis, and frame measurement – perfect for checking three‑phase motors, bearing housings, or pipe insulation.
  • Wireless connectivity & dedicated APP

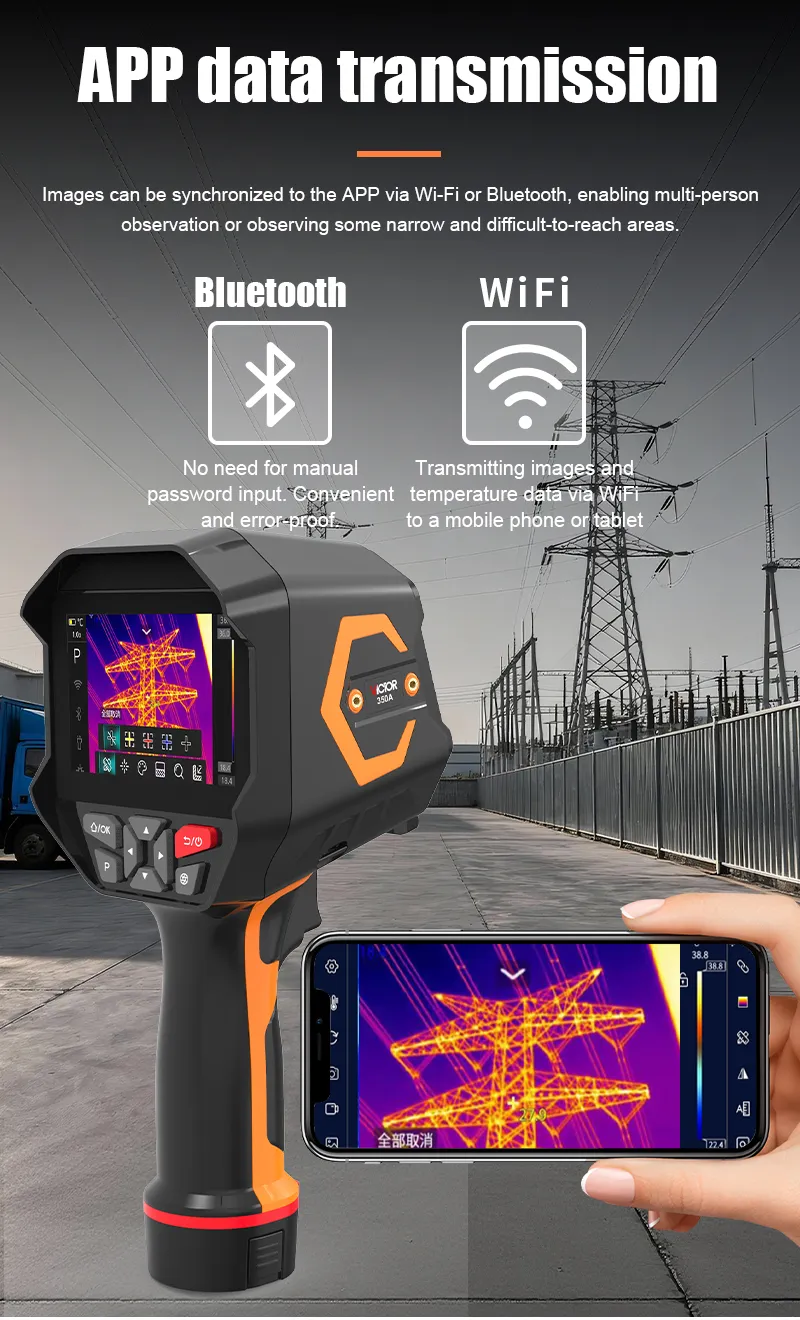

    Built‑in WiFi enables real‑time image transmission to a smartphone or tablet via the provided APP. Bluetooth support further simplifies data logging. Offline analysis software is also included, so you can generate professional reports directly on your PC.

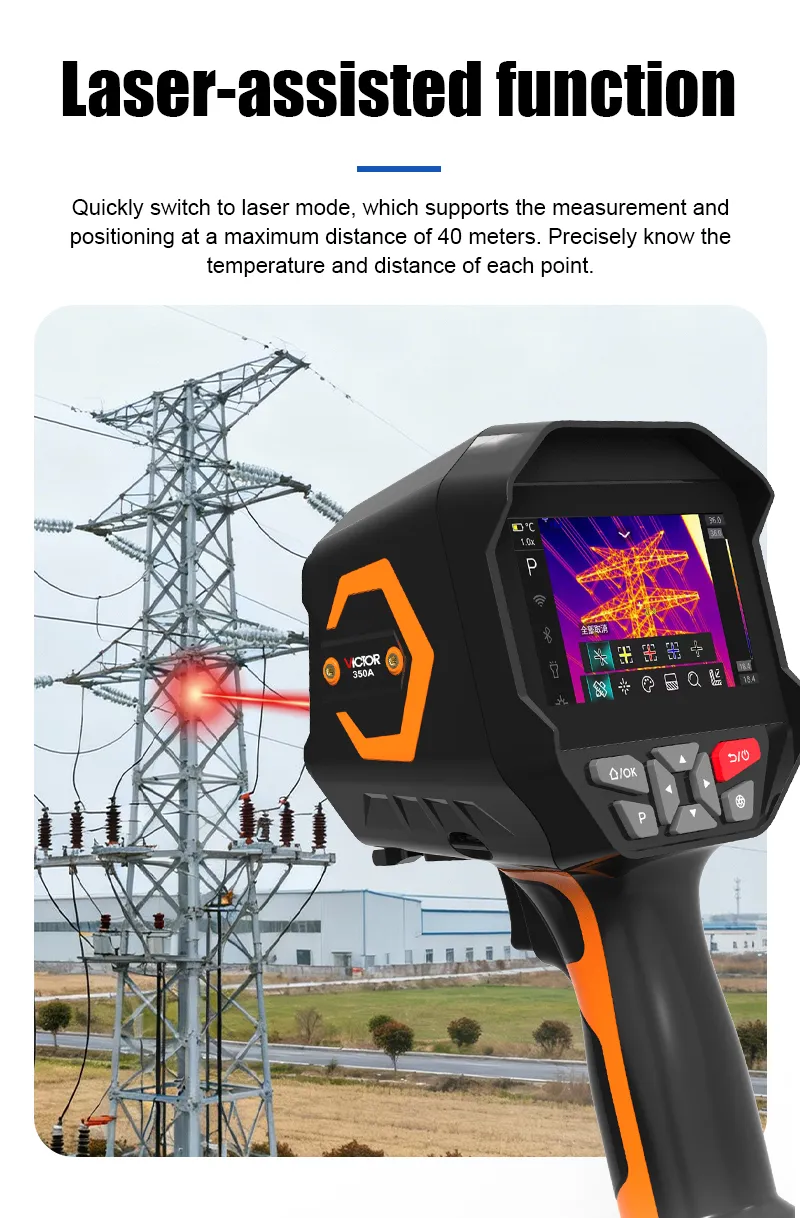

  • Laser ranging & laser indication
    The integrated laser rangefinder (40m range) and laser pointer help you quickly mark target distances and areas. This is especially useful for electrical cabinets, HVAC ducts, or building inspections where precise location tracking matters.
  • All‑day battery & generous storage
    A removable 5000mAh lithium battery provides 5 hours of continuous operation – enough for a full morning or afternoon inspection. Onboard 32GB eMMC storage (expandable to 256GB on Model 350, 512GB on Model 350A) stores thousands of thermal images, screenshots, and video recordings.
  • Robust data interfaces & environmental adaptability
    USB Type‑C and HDMI support fast file transfer and external display output. The imager operates from ‑10°C to +60°C and survives storage from ‑40°C to +85°C, making it reliable for fieldwork, foundries, cold storage, and outdoor maintenance.
  • Complete capture functions & alert system
    Photo taking, screen capture, and video recording are all one‑button operations. A built‑in buzzer provides audible alarms for temperature thresholds, while an LED flashlight assists in dark environments. The temperature gun mode offers a quick spot‑measurement alternative for users familiar with traditional IR thermometers.
