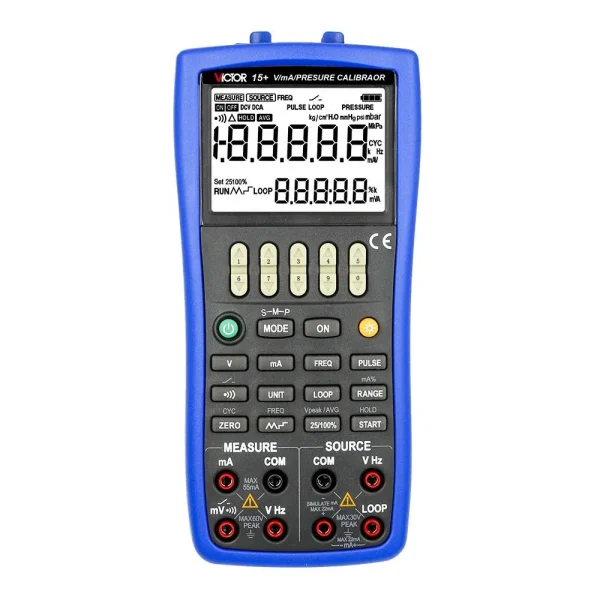

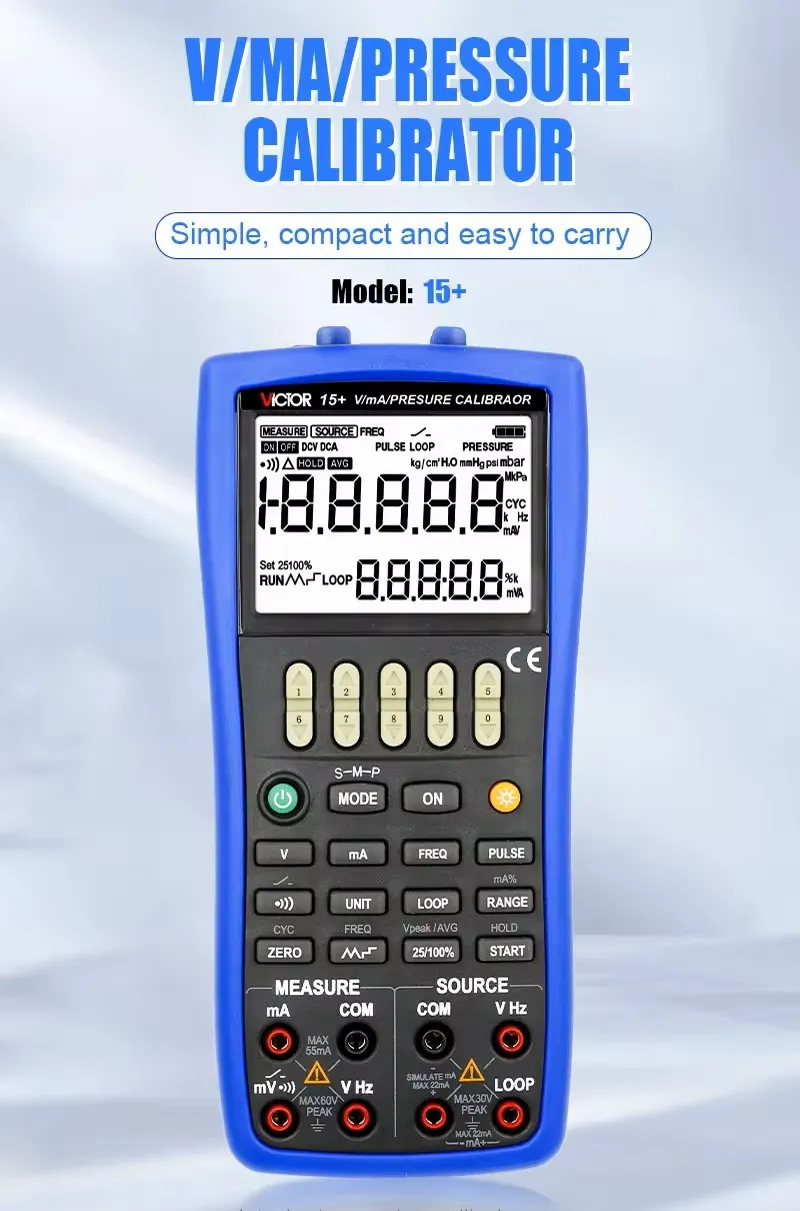

High-Accuracy V/mA/Pressure Calibrator – Measure & Source DCV/DCI/Frequency/Pulse/24V Loop, with External Pressure Module Support, 0.02% Accuracy 15+

1. 0.02% Accuracy – A V/mA/Pressure Calibrator You Can Trust

The VICTOR 15+ delivers 0.02% basic accuracy for DC voltage and current, ensuring that every calibration is precise and repeatable. Whether you are testing a 4-20mA loop or verifying a 0-10V controller output, this V/mA/Pressure Calibrator minimizes errors and gives you lab-grade confidence in the field. Its temperature coefficient is only 0.1 × specified accuracy per °C, meaning stable performance from 5°C to 50°C. When you choose this V/mA/Pressure Calibrator, you choose reliability.

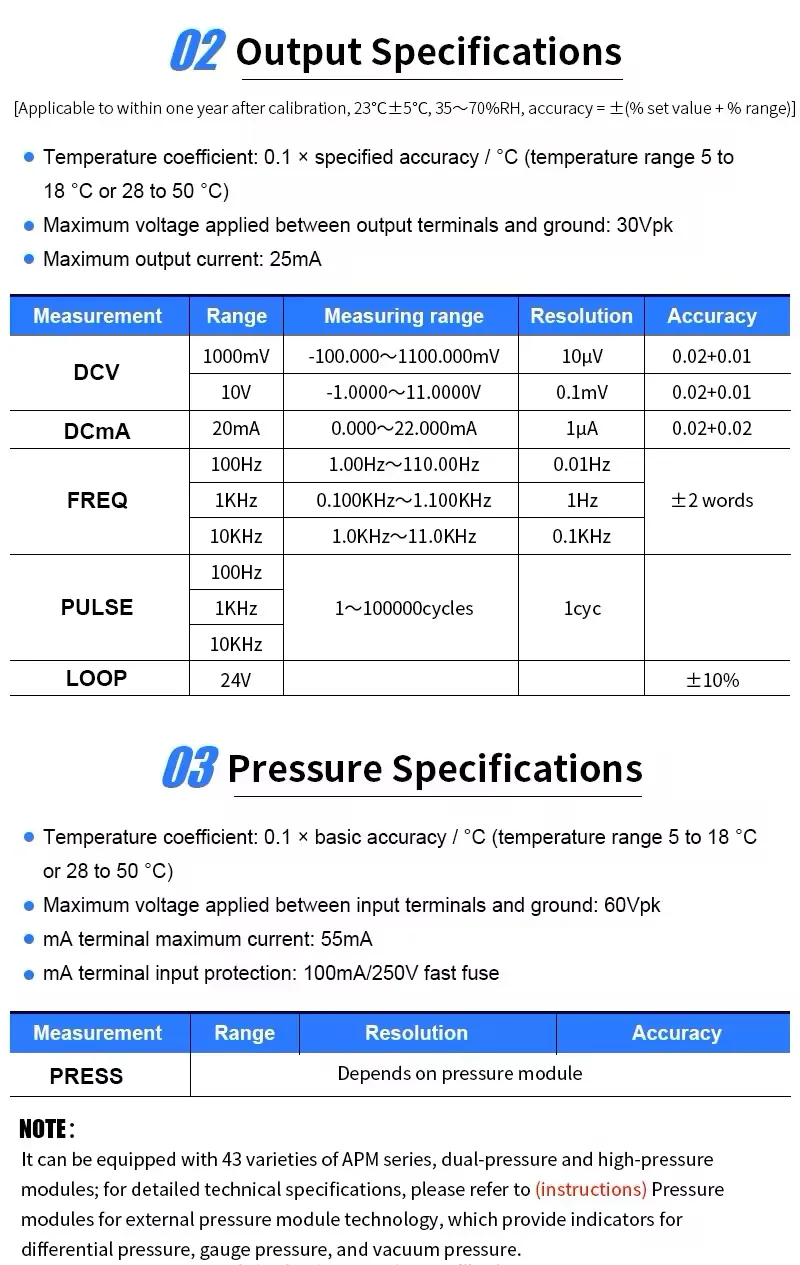

2. Complete Electrical Signal Coverage – Measure & Source with One V/mA/Pressure Calibrator

This V/mA/Pressure Calibrator handles almost every analog and digital signal you encounter:

• DC Voltage: Measure up to 55V (200mV/5V/50V ranges), source up to 11V (1000mV/10V ranges)
• DC Current: Measure up to 55mA (1µA resolution), source up to 22mA (1µA resolution) – perfect for 4-20mA loop calibration
• Frequency: Measure up to 50kHz, source up to 10kHz with ±2-word accuracy
• Pulse Output: 1 to 100,000 cycles at 100Hz or 1kHz, ideal for testing totalizers and flow computers
• Loop Power: 24V ±10% supply for powering transmitters during calibration

No other V/mA/Pressure Calibrator in its class offers such complete signal coverage.

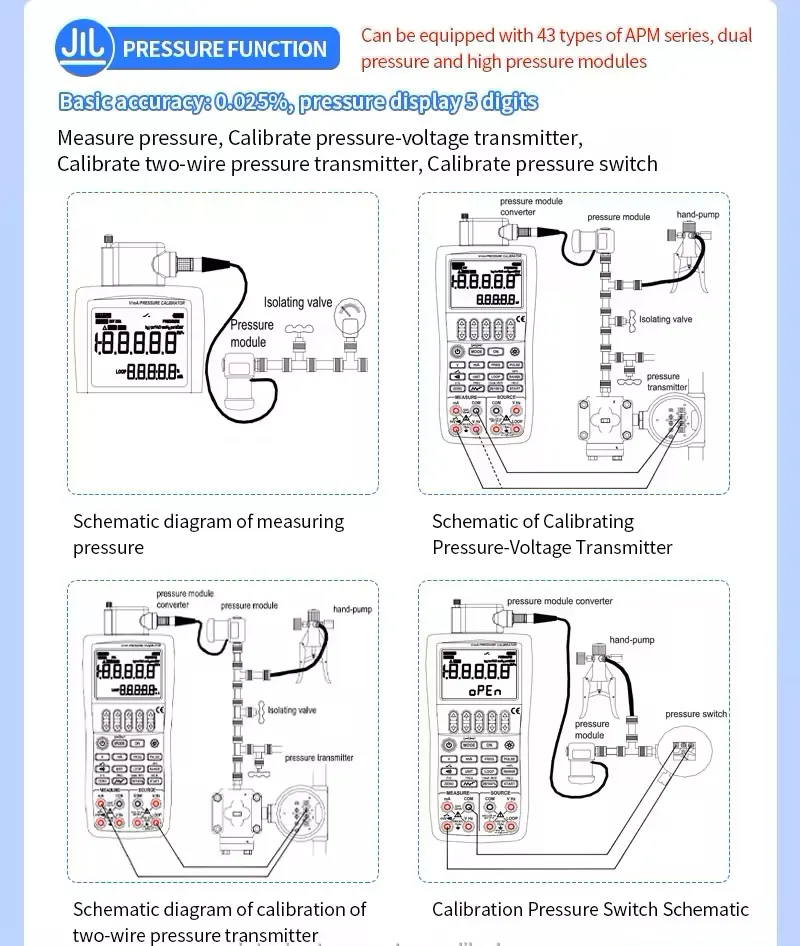

3. External Pressure Module Support – The Ultimate V/mA/Pressure Calibrator

Unlike ordinary calibrators, the VICTOR 15+ works with 43 varieties of APM series pressure modules, including differential, gauge, and vacuum pressure sensors. Simply connect the module, and this V/mA/Pressure Calibrator displays pressure in kg/cm², H₂O, mmHg, psi, or mbar. No need to buy a separate pressure calibrator – the VICTOR 15+ becomes one with the right module. That is what makes it a true V/mA/Pressure Calibrator.

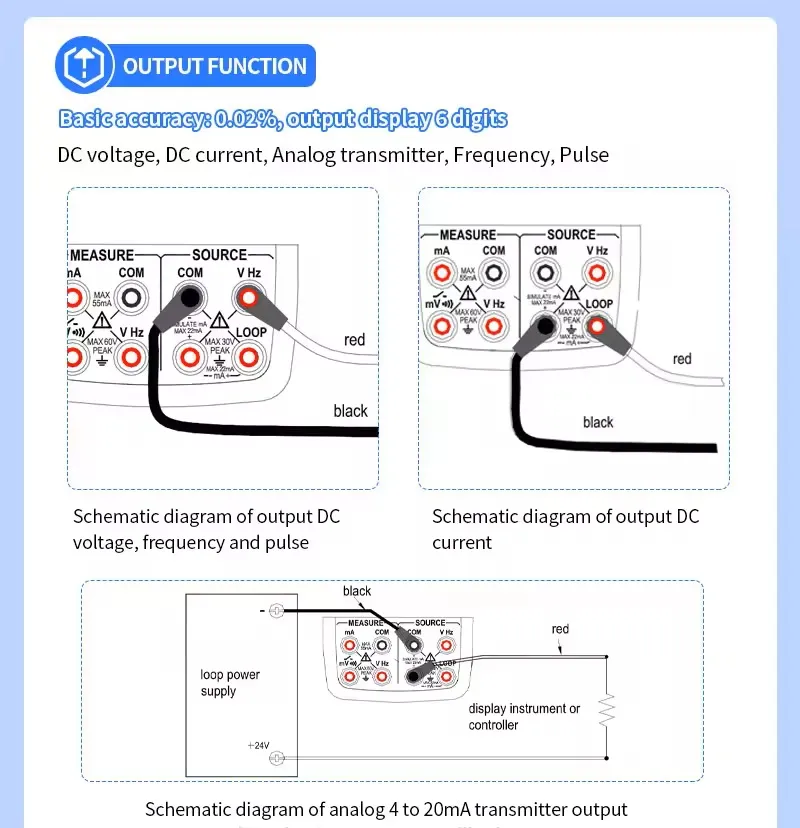

4. Smart 4-20mA Loop Calibration Features

Loop calibration is the most common task for any V/mA/Pressure Calibrator. The VICTOR 15+ includes dedicated tools:

• mA% Function: Output 25% and 100% steps for quick valve and I/P testing
• SIMULATE Mode: Power the loop while controlling current – no external power supply needed
• LOOP Mode: Measure loop current while supplying 24V
• Zero/Null Function: Remove offset errors from test leads or sensors

Every feature is designed to make this V/mA/Pressure Calibrator faster and easier to use.

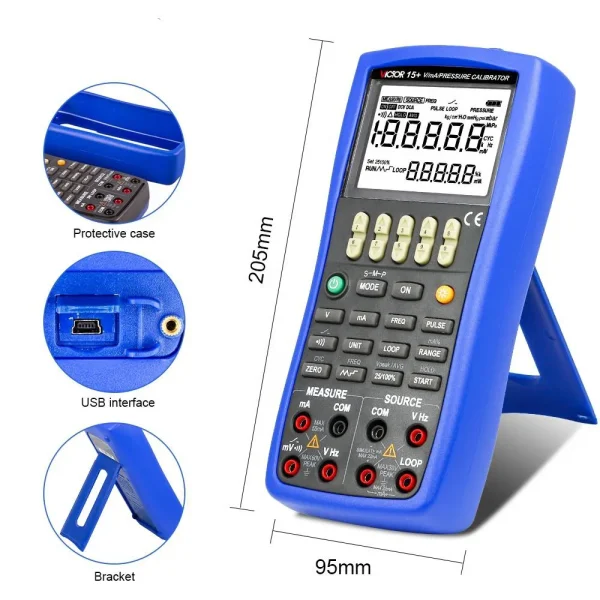

5. Built for the Real World – Rugged and Practical V/mA/Pressure Calibrator

This V/mA/Pressure Calibrator is designed for daily field use:

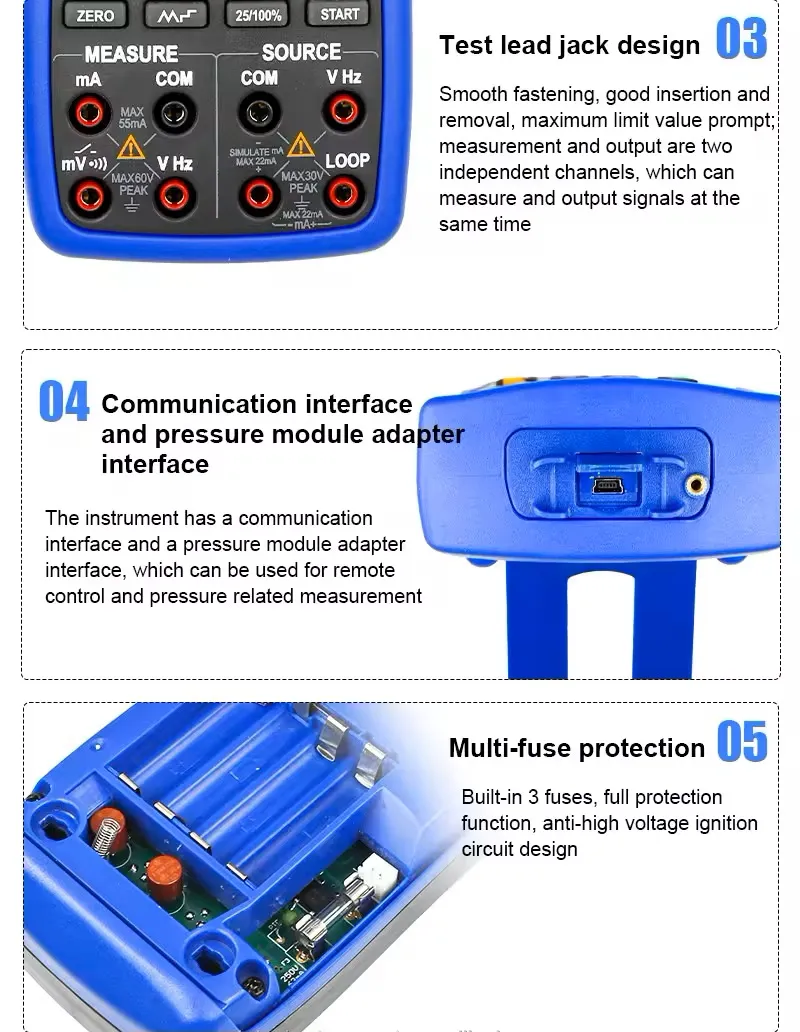

• Input terminals protected to 60Vpk, output terminals to 30Vpk

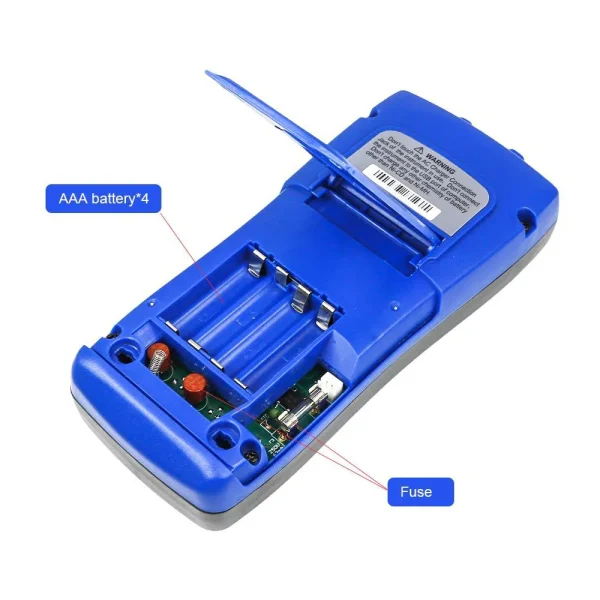

• mA input protected by 100mA/250V fast-blow fuse

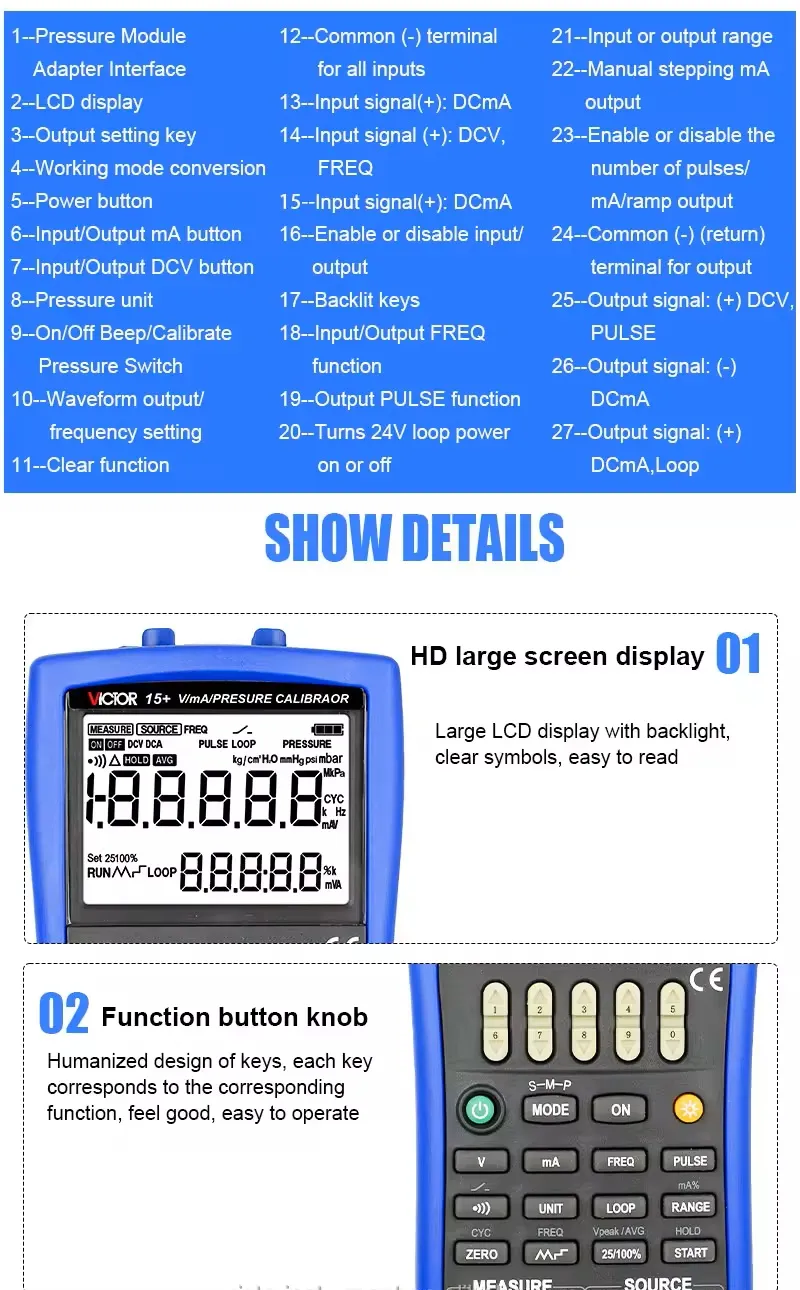

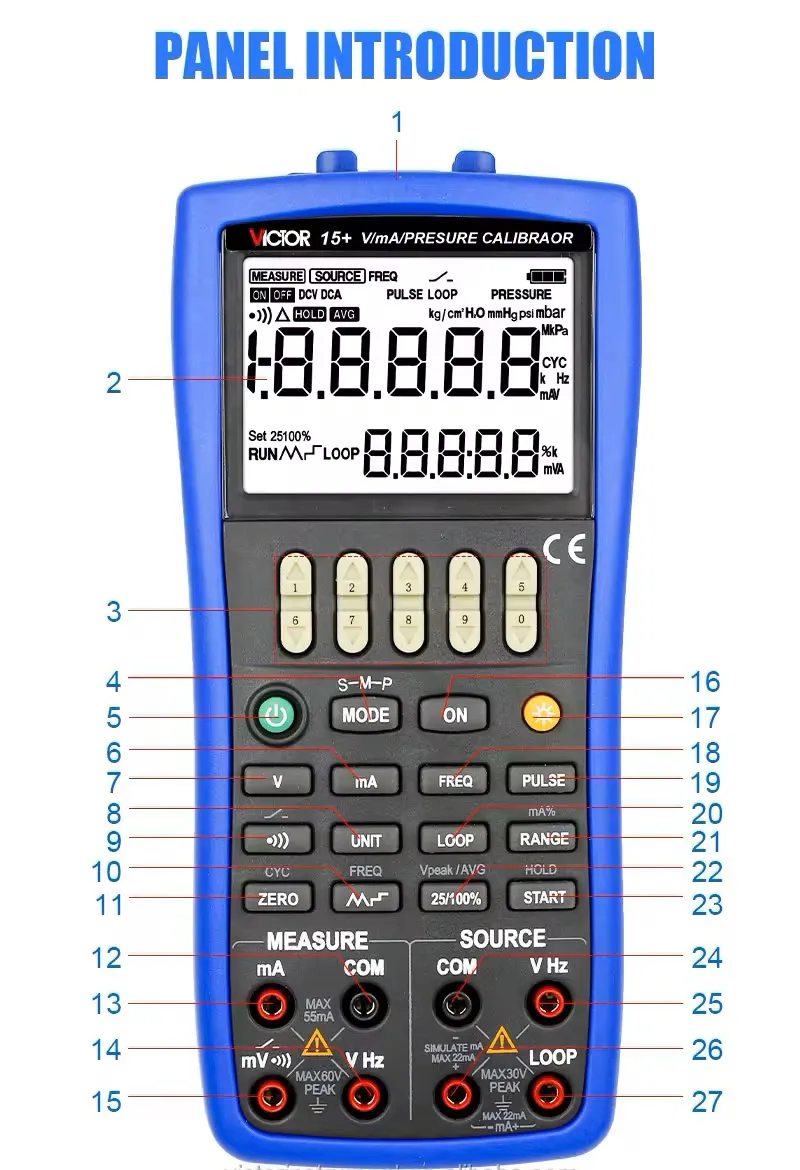

• Large digital display with backlight – visible in dark control cabinets
• Automatic shutdown preserves battery life
• Low voltage indication prevents unexpected shutdowns
• Data hold, peak hold, and average (AVG) functions capture intermittent signals

A true field V/mA/Pressure Calibrator must be tough – the VICTOR 15+ delivers.

6. Fast Response & High Noise Rejection

As a professional V/mA/Pressure Calibrator, speed and stability matter. The VICTOR 15+ updates measurements twice per second, so you see changes immediately. Common mode rejection >120dB and series mode rejection >60dB at 50/60Hz mean this V/mA/Pressure Calibrator ignores electrical noise from motors, VFDs, and power lines. Your readings stay clean and stable.

7. Frequency & Pulse – Beyond Analog

Most calibrators stop at voltage and current. The VICTOR 15+ is a true V/mA/Pressure Calibrator that also handles frequency and pulse signals. Measure frequency from 3Hz to 50kHz with 0.01Hz resolution on the 500Hz range. Source frequency up to 10kHz for testing speed sensors, flowmeters, and frequency-to-current converters. The pulse output (1–100,000 cycles) is perfect for batch controllers and totalizer verification. That is versatility you rarely find in a V/mA/Pressure Calibrator.

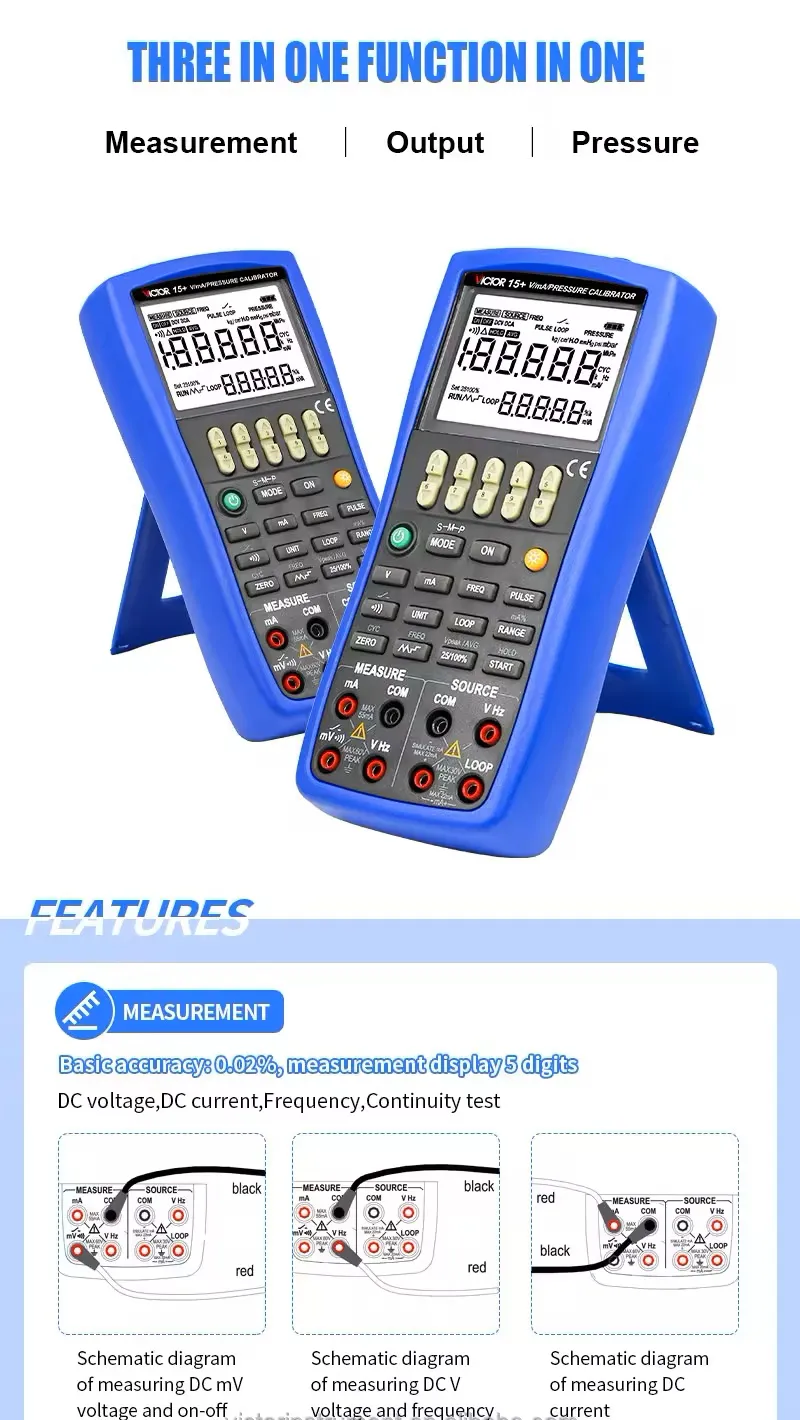

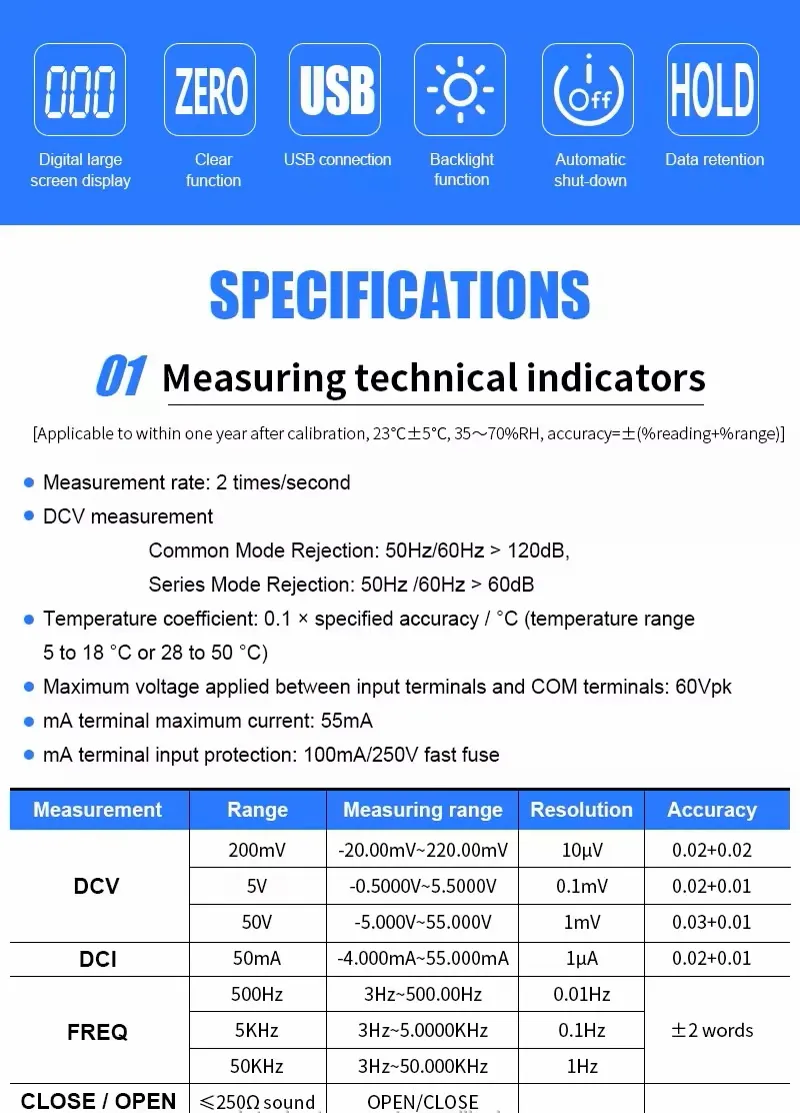

8. Complete Measurement Capabilities

This V/mA/Pressure Calibrator measures more than just loops:

• DCV: -20mV to 55V, 10µV resolution on 200mV range
• DCI: -4mA to 55mA, 1µA resolution
• Continuity buzzer: <250Ω triggers sound – quick cable and fuse checks

9. Why the VICTOR 15+ Is the Right V/mA/Pressure Calibrator for You

• Accuracy: 0.02% basic (DCV/DCI), 0.03% on 50V range
• Coverage: DCV, DCI, Freq, Pulse, Loop power, Pressure (external module)
• Flexibility: Measure and source simultaneously
• Field ready: Backlight, auto shutdown, low battery indicator, ZERO function
• Noise immune: >120dB CMRR, >60dB SMRR
• Safe: Fused mA input, 60Vpk/30Vpk protection

Stop using multiple tools. The VICTOR 15+ is the one V/mA/Pressure Calibrator you need for transmitters, valves, frequency devices, pressure sensors, and PLCs. Whether you work in a power plant, chemical facility, water treatment plant, or factory automation, this V/mA/Pressure Calibrator will become your most trusted field companion. Get the VICTOR 15+ V/mA/Pressure Calibrator today and work smarter, faster, and more accurately.
