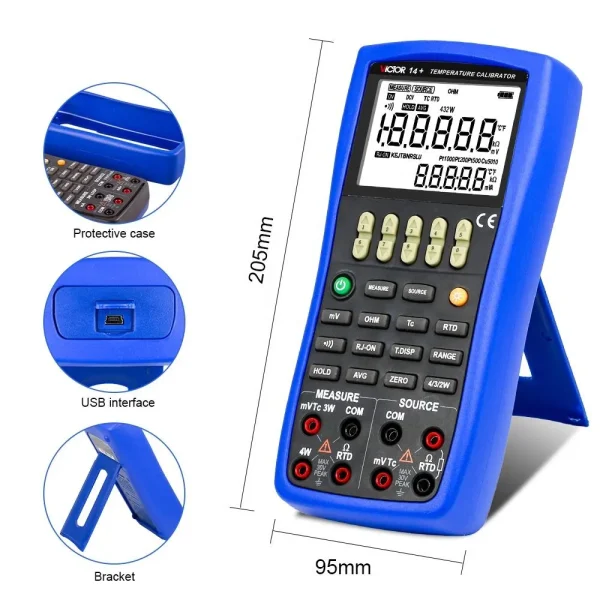

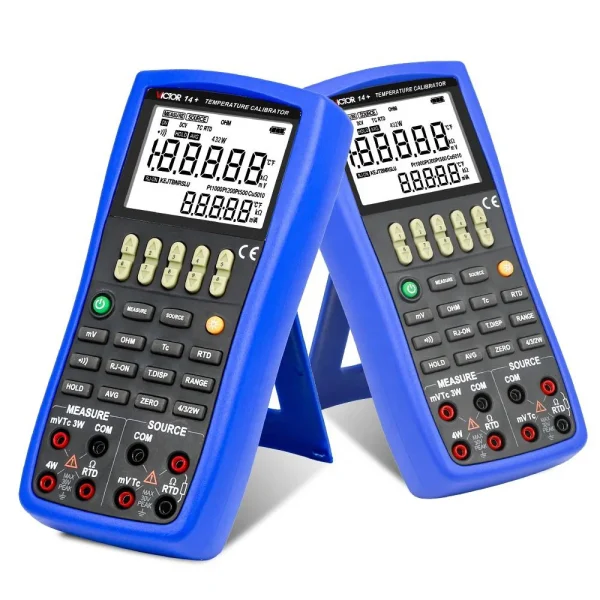

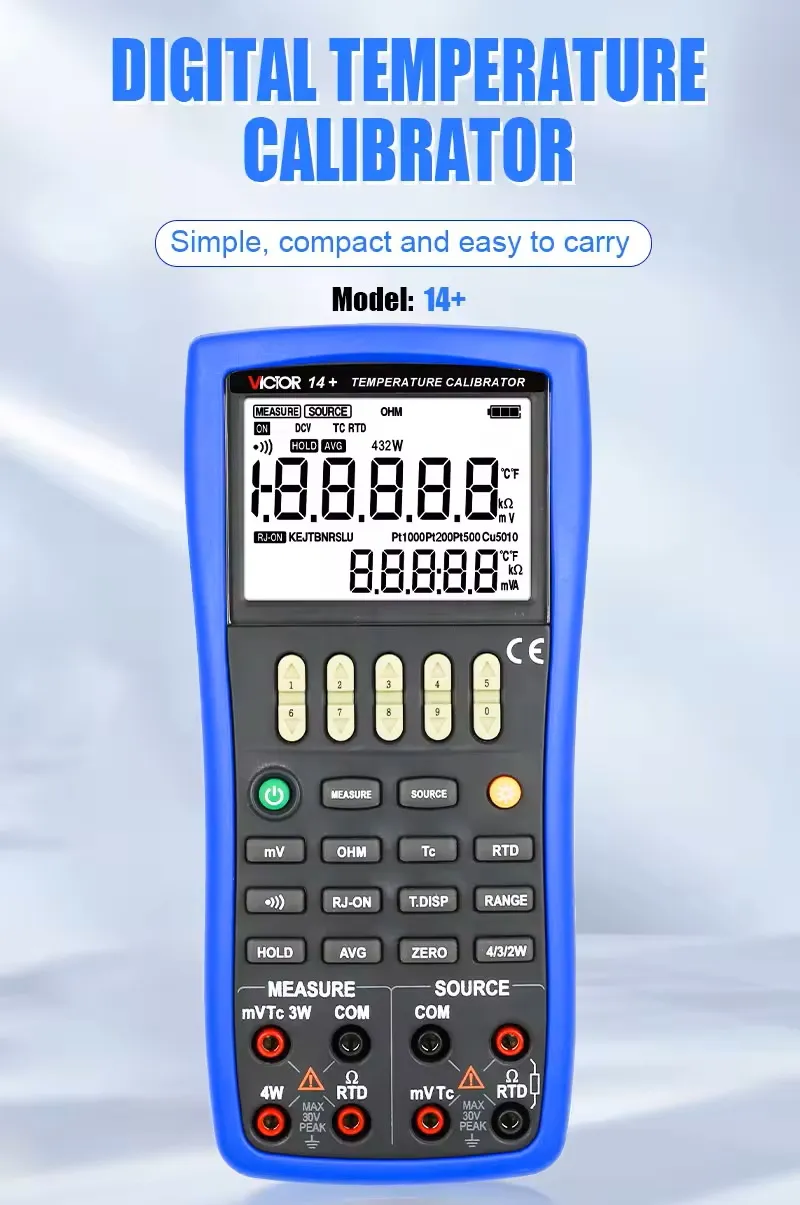

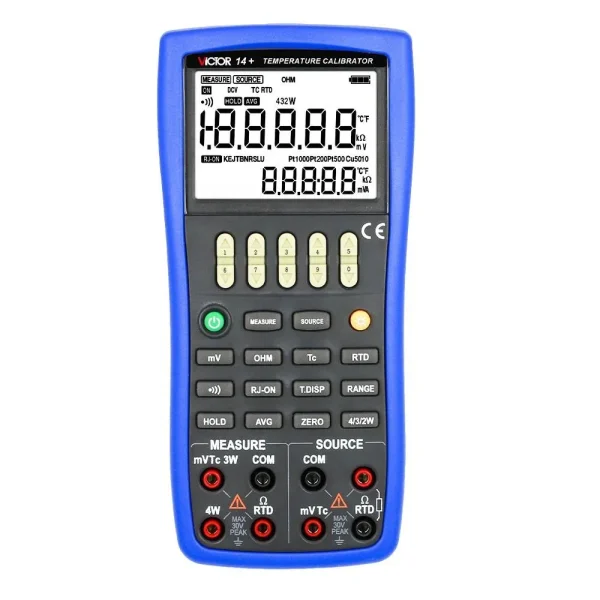

High-Precision Temperature Calibrator – Measure & Source 10 TC Types, RTD, DCV, Ohm with 0.02% Accuracy 14+

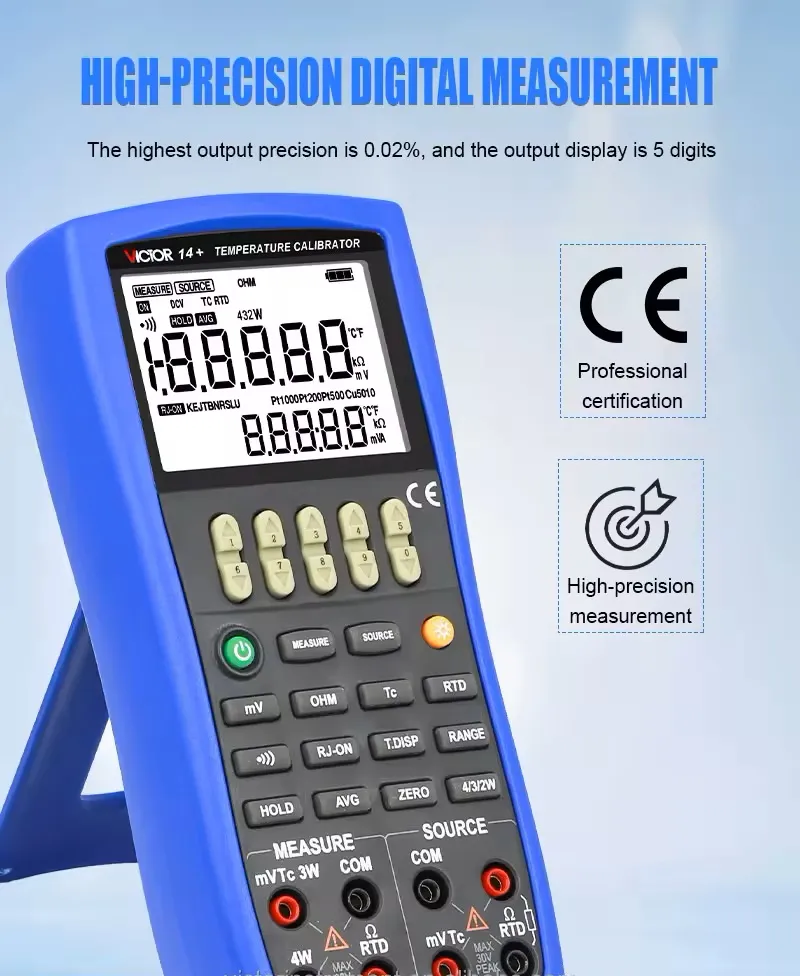

1. True 0.02% Accuracy – A Temperature Calibrator You Can Trust

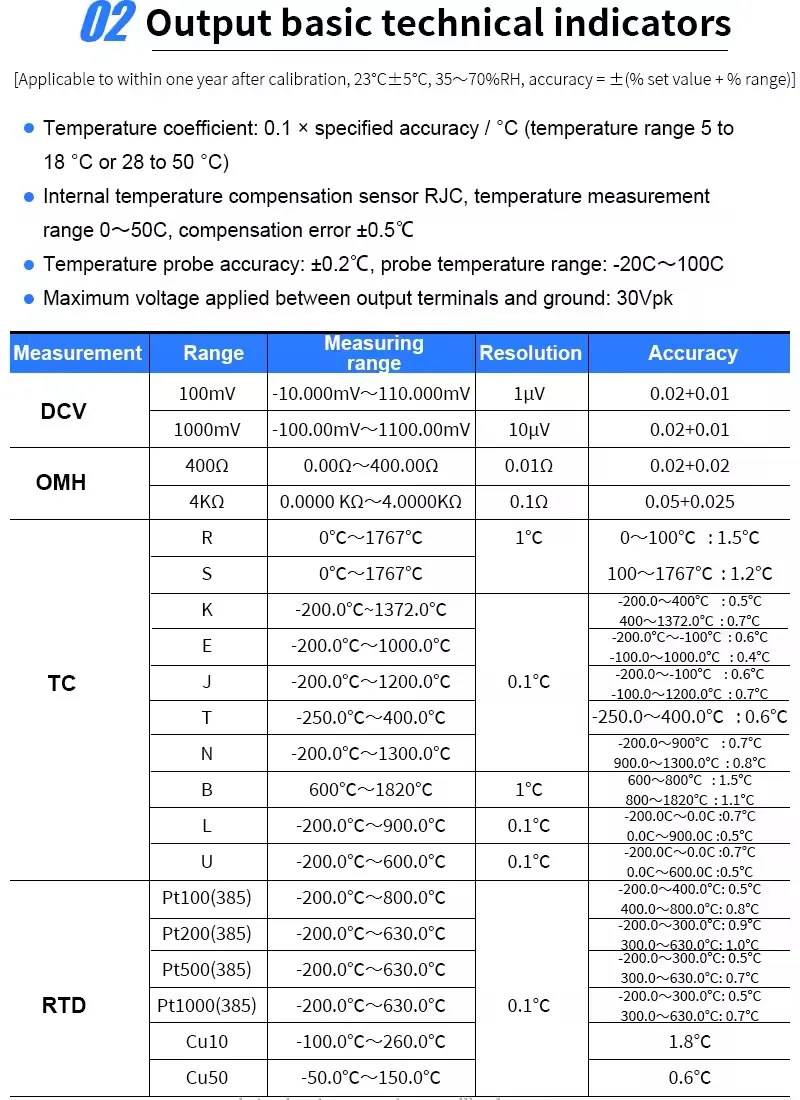

When you need precision, the VICTOR 14+ delivers. This temperature calibrator achieves 0.02% basic accuracy for DC voltage and resistance, ensuring that every measurement and output is reliable. Whether you are testing a thermocouple transmitter or verifying an RTD input, this temperature calibrator minimizes errors and gives you lab-grade confidence in the field. Its temperature coefficient is only 0.1 × specified accuracy per °C, meaning stable performance from 5°C to 50°C.

2. 10 Thermocouples + 6 RTDs – The Most Versatile Temperature Calibrator

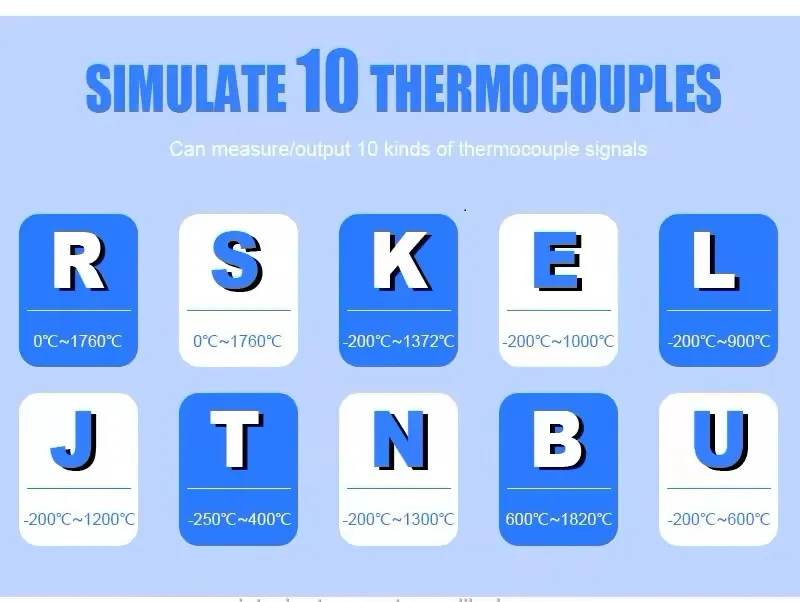

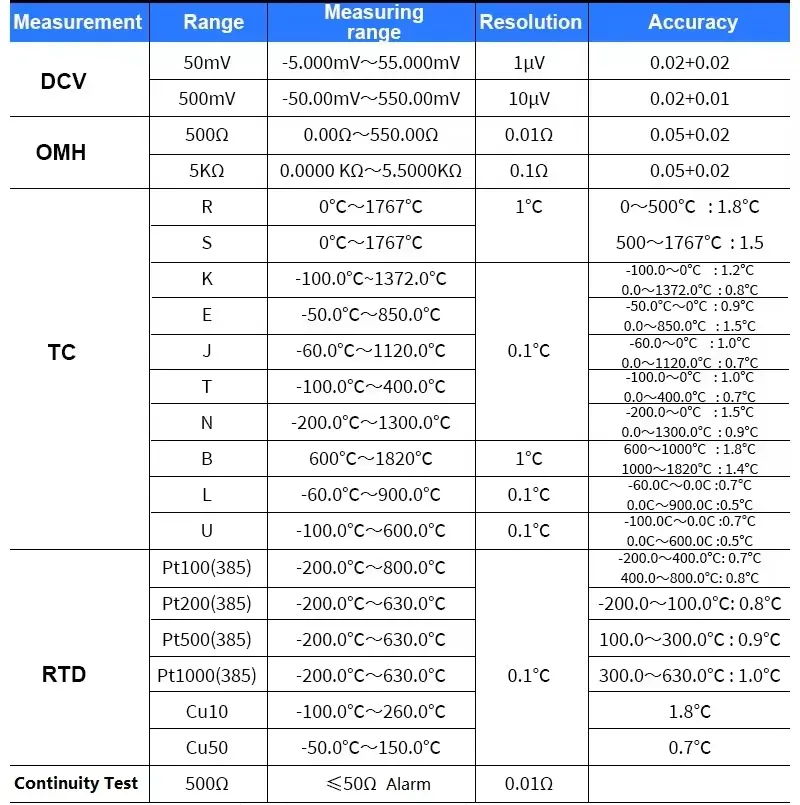

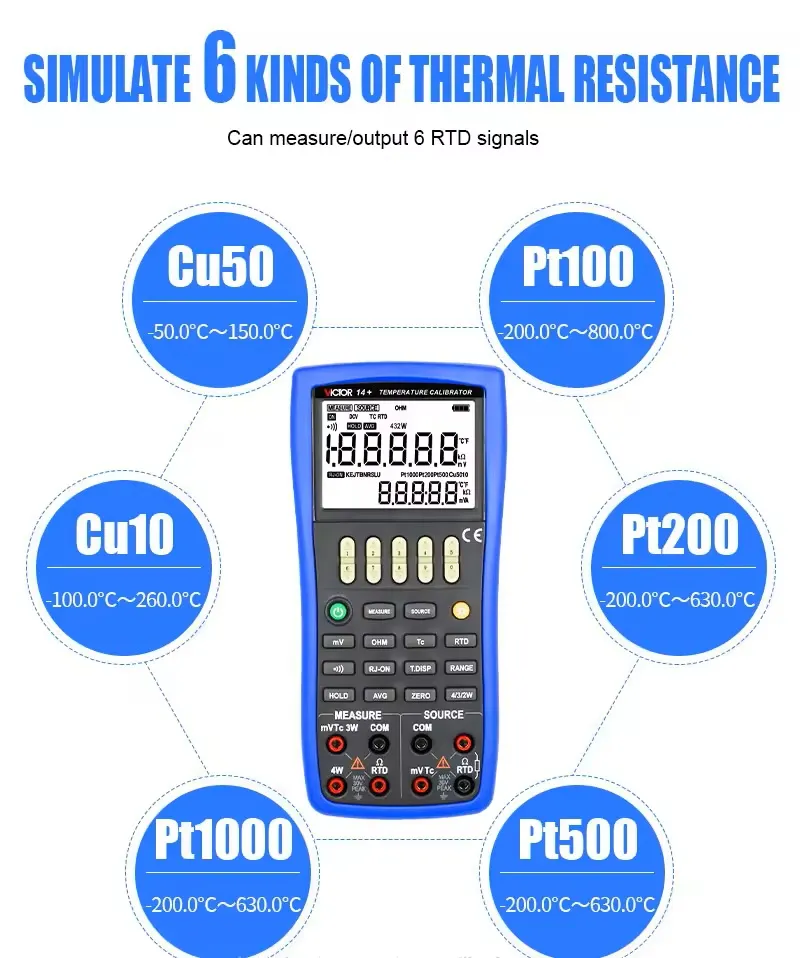

No other temperature calibrator in its class covers more sensors. The VICTOR 14+ supports 10 thermocouple types: R, S, K, E, J, T, N, B, L, and U. It also supports 6 RTD types: Pt100, Pt200, Pt500, Pt1000, Cu10, and Cu50. From -250°C (Type T) up to 1820°C (Type B), this temperature calibrator handles extreme industrial ranges. Resolution is as fine as 0.1°C for most TC and RTD types, giving you detailed visibility into temperature drift and linearity.

3. Measure and Source – A True Dual-Function Temperature Calibrator

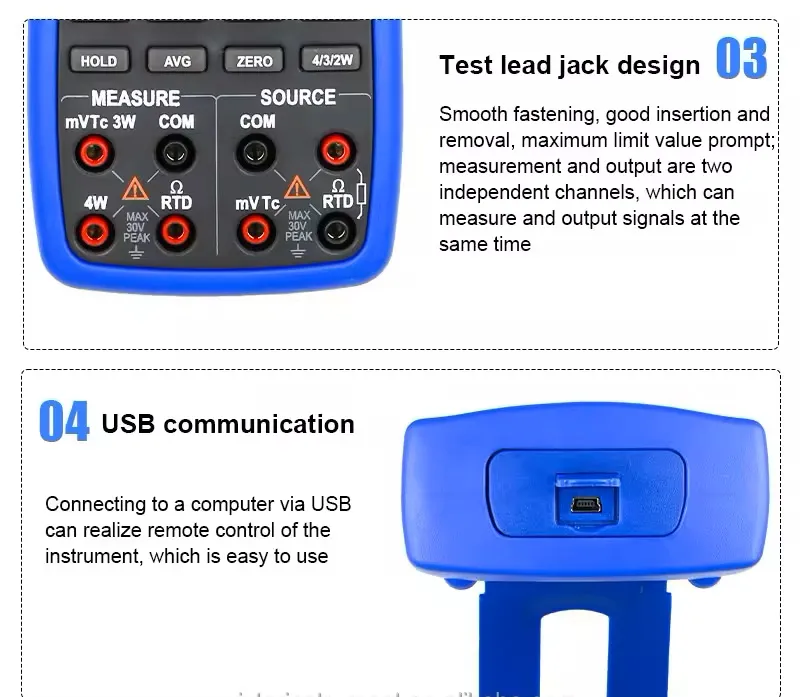

Why carry a separate meter and source? The VICTOR 14+ is a complete temperature calibrator that measures and sources simultaneously. You can output a simulated thermocouple signal while reading the actual loop current—perfect for checking transmitters and isolators. The large screen with HOLD and AVG functions makes data recording easy. This temperature calibrator also measures DCV from -10mV to 1100mV with 1µV resolution, and resistance from 0Ω to 4kΩ with 0.01Ω resolution.

4. Smart Cold Junction Compensation – No Ice Baths Needed

A professional temperature calibrator must handle cold junctions automatically. The VICTOR 14+ includes an internal RJC sensor with ±0.5°C compensation error over 0–50°C. For even higher accuracy, connect the external temperature probe (±0.2°C, -20°C to 100°C). This temperature calibrator eliminates manual calculations and ice bath setups, saving you time and reducing mistakes.

5. Built for the Real World – Rugged and Practical

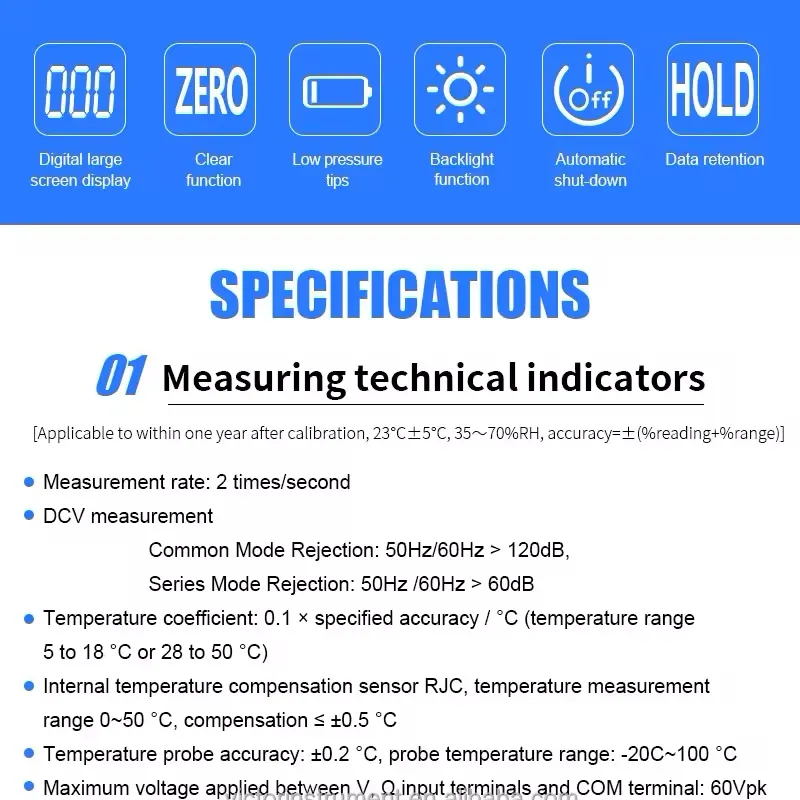

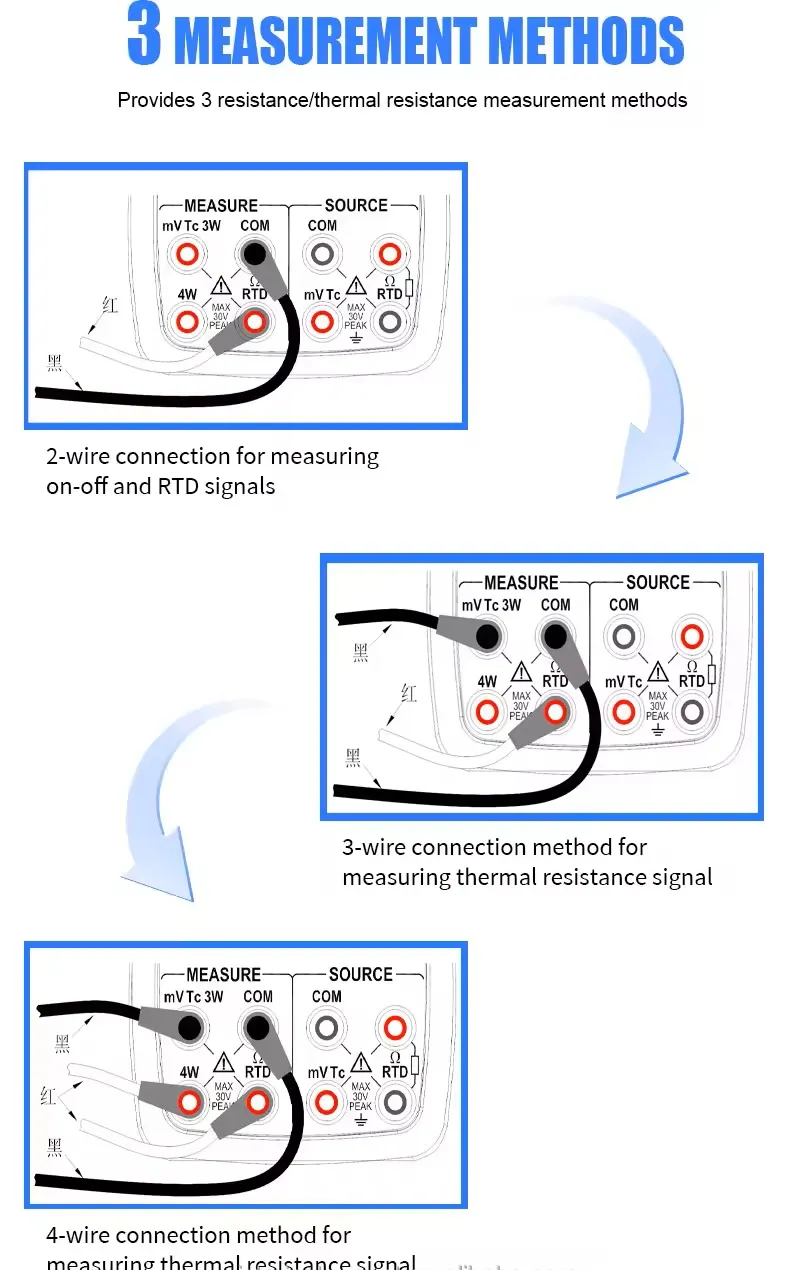

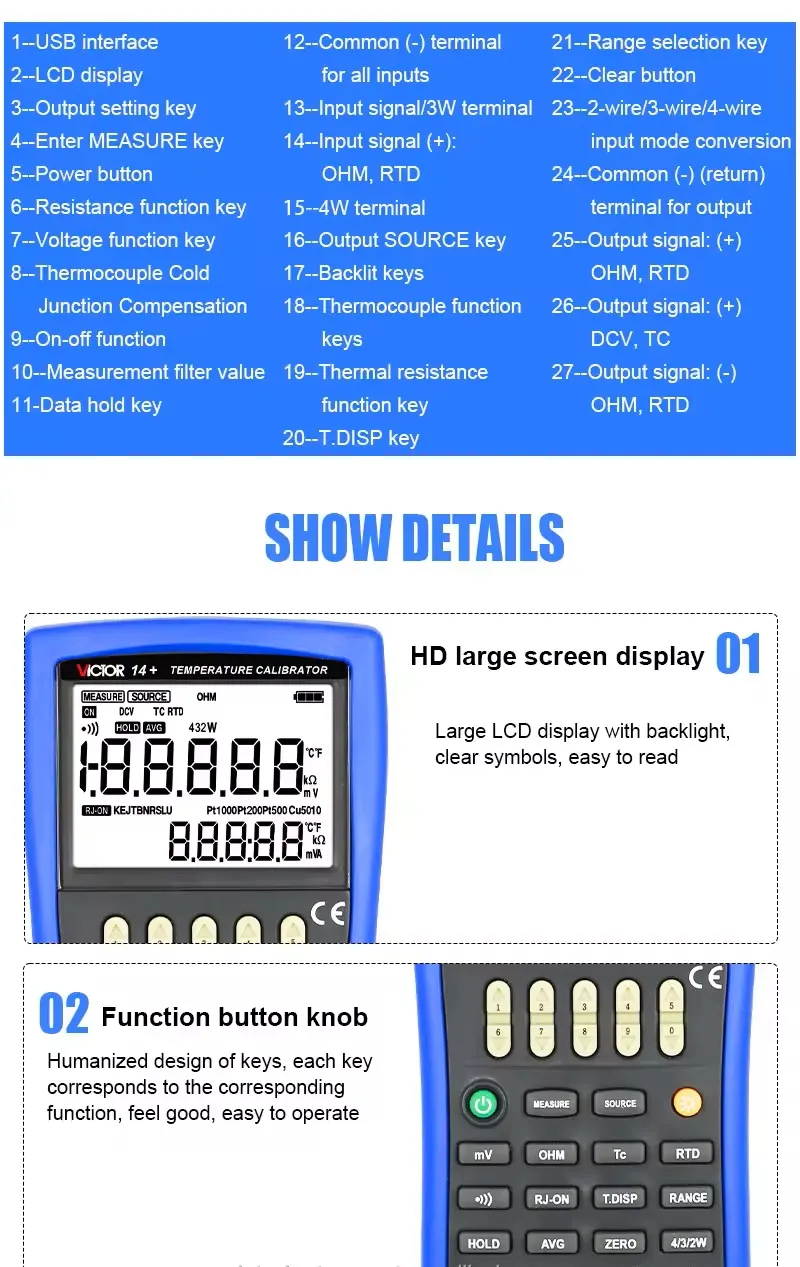

This temperature calibrator is designed for daily field use. Input terminals are protected to 60Vpk, output terminals to 30Vpk. The backlit display works in dark control cabinets or outdoor panels. Automatic shutdown preserves battery life, and low-voltage indication prevents unexpected shutdowns. The ZERO function nulls out lead resistance for accurate low-ohm measurements. With 2-wire, 3-wire, and 4-wire RTD support, this temperature calibrator adapts to any installation.

6. Fast Response, High Noise Rejection

As a professional temperature calibrator, speed matters. The VICTOR 14+ updates measurements twice per second, so you see changes instantly. Common mode rejection (>120dB) and series mode rejection (>60dB) at 50/60Hz mean this temperature calibrator ignores electrical noise from motors, drives, and power lines. Your readings stay clean and stable.

7. Perfect for Transmitter Calibration

Loop calibration is a core task for any temperature calibrator. Use the VICTOR 14+ to source a precise temperature signal (TC or RTD) to a transmitter, then measure the transmitter’s 4–20mA output. No second device needed. This all-in-one temperature calibrator also sources DCV (100mV and 1000mV ranges) and resistance (400Ω and 4kΩ), making it useful for pressure transmitters with analog inputs.

8. Why the VICTOR 14+ Is the Right Temperature Calibrator for You

• Accuracy: 0.02% basic, 0.5°C typical for TC/RTD
• Coverage: 10 TC types, 6 RTD types, DCV, Ohm
• Flexibility: Measure and source simultaneously
• Built-in compensation: RJC and external probe
• Field ready: Backlight, auto shutdown, low battery indicator, ZERO function
• Noise immune: >120dB CMRR, >60dB SMRR

Stop using generic multimeters or separate calibrators. The VICTOR 14+ is the dedicated temperature calibrator you need for fast, accurate, and reliable temperature instrument calibration. Whether you work in a power plant, chemical facility, HVAC, or food processing plant, this temperature calibrator will become your most trusted tool.
