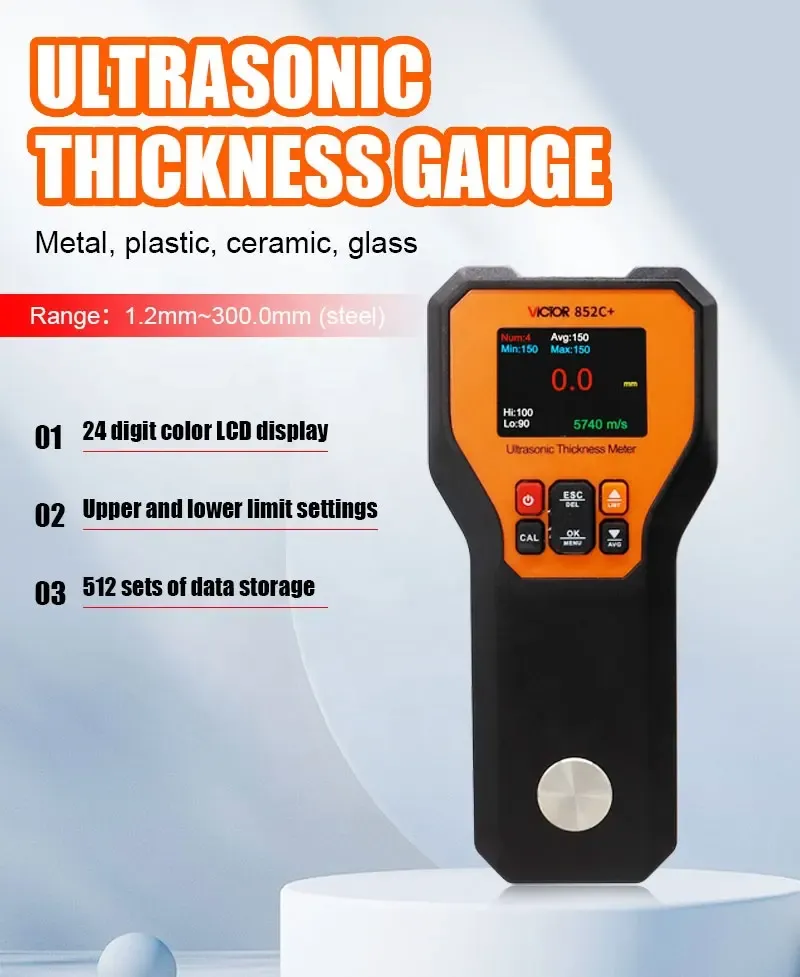

Victor Intelligent Ultrasonic Thickness Meter – with 1.2–300mm Range, Data Storage, PC Connectivity, and Multi-Material Sound Velocity Adjustment 852C+

$71.99

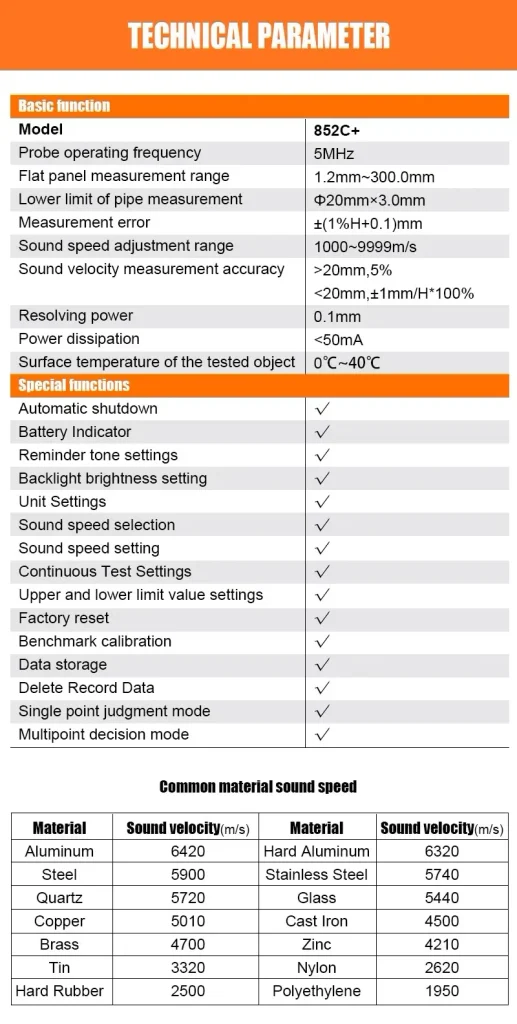

852C+ is a high-performance ultrasonic thickness meter designed to accurately measure material thickness from 1.2mm to 300.0mm, with a minimum pipe measurement capability of Φ20mm × 3.0mm. Operating at a probe frequency of 5MHz, it supports a wide range of ultrasonic-conductive materials including metals, plastics, ceramics, glass, and more, provided they have two parallel surfaces. The device offers a measurement error of ±(1%H+0.1)mm and a resolution of 0.1mm, ensuring reliable results for quality control and maintenance tasks. Sound velocity is adjustable from 1000 to 9999 m/s, and the gauge can also measure sound velocity with high accuracy. The 852C+ features an LCD color screen, data storage, continuous measurement mode, and PC connectivity. Additional intelligent functions include automatic shutdown, battery indication, adjustable backlight, unit switching, upper/lower limit alarms, factory reset, and benchmark calibration. With low power consumption (<50mA) and an operating temperature range of 0°C to 40°C, this ultrasonic thickness meter is a versatile, portable solution for industrial inspection and engineering applications.

SKU: 852C+ Categories: , , Brand:
Intelligent Ultrasonic Thickness Meter
Intelligent Ultrasonic Thickness Meter



Reviews

There are no reviews yet.

Be the first to review “Victor Intelligent Ultrasonic Thickness Meter – with 1.2–300mm Range, Data Storage, PC Connectivity, and Multi-Material Sound Velocity Adjustment 852C+”

Your email address will not be published. Required fields are marked *

852C+ features an LCD color screen, data storage, continuous measurement mode, and PC connectivity. Additional intelligent functions include automatic shutdown, battery indication, adjustable backlight, unit switching, upper/lower limit alarms, factory reset, and benchmark calibration.

  • Wide Measurement Range for Versatile Applications – This ultrasonic thickness meter measures flat surfaces from 1.2mm to 300.0mm, making it suitable for thin sheets, structural steel, pipelines, and storage tanks. It also handles pipes as small as Φ20mm × 3.0mm, expanding its use to tube and small-diameter pipe inspections.
  • High Accuracy with Low Error Margin – With a measurement error of just ±(1%H+0.1)mm and a resolution of 0.1mm, the 852C+ ultrasonic thickness meter delivers precise, repeatable readings. This level of accuracy is critical for corrosion monitoring, thickness reduction checks, and quality assurance in manufacturing.
  • Adjustable Sound Velocity from 1000 to 9999 m/s – The gauge allows manual sound speed adjustment, enabling accurate measurement on dozens of materials. It also calculates sound velocity with better than 5% accuracy for samples >20mm, making field calibration simple and reliable.

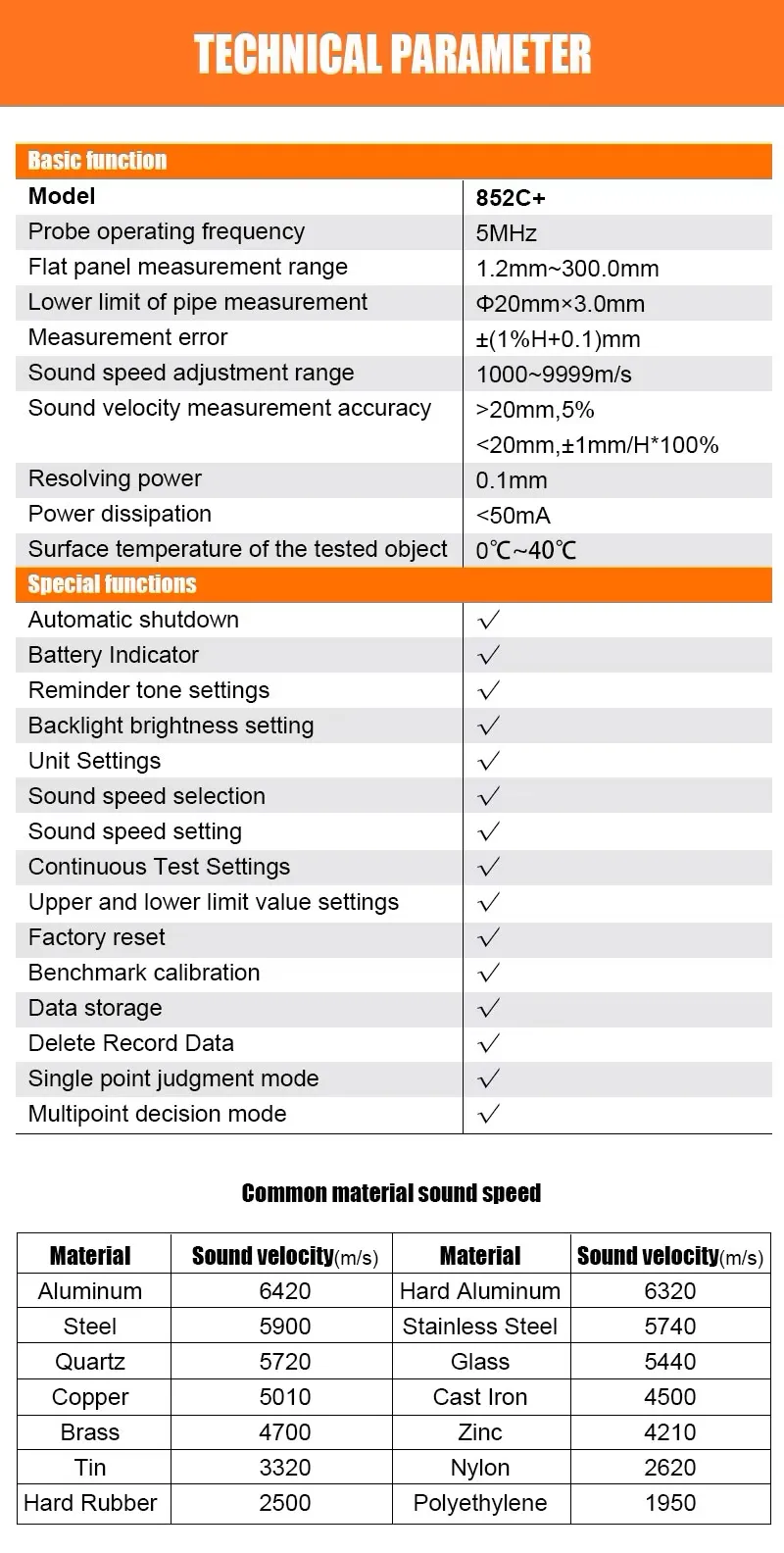

  • Built-in Common Material Sound Speed Table – Preloaded with sound velocity values for aluminum (6420 m/s), steel (5900 m/s), stainless steel (5740 m/s), copper (5010 m/s), cast iron (4500 m/s), nylon (2620 m/s), and more. This feature saves setup time and reduces operator error when using the ultrasonic thickness meter on frequently tested materials.
  • Multiple Intelligent Modes for Better Judgment – Includes single‑point judgment mode and multipoint decision mode, allowing the ultrasonic thickness meter to validate readings across multiple locations. Ideal for detecting localized pitting, uneven wear, or average thickness over an area.
  • Data Storage & PC Connectivity – Store measurement records directly on the device, delete outdated data, and transfer results to a computer via the data link port. This turns the 852C+ from a simple gauge into a complete documentation tool for inspection reporting and trend analysis.
  • Continuous Measurement Mode – In continuous test mode, the ultrasonic thickness meter provides real-time thickness updates as you slide the probe across the surface. Quickly scan large areas to locate the thinnest point—perfect for corrosion mapping and tank floor inspections.
  • Upper & Lower Limit Alarm – Set custom high and low thickness thresholds. When a measurement exceeds or falls below the set limits, the device alerts the operator immediately. This feature helps sort pass/fail parts on the production line or flag risky areas during maintenance.

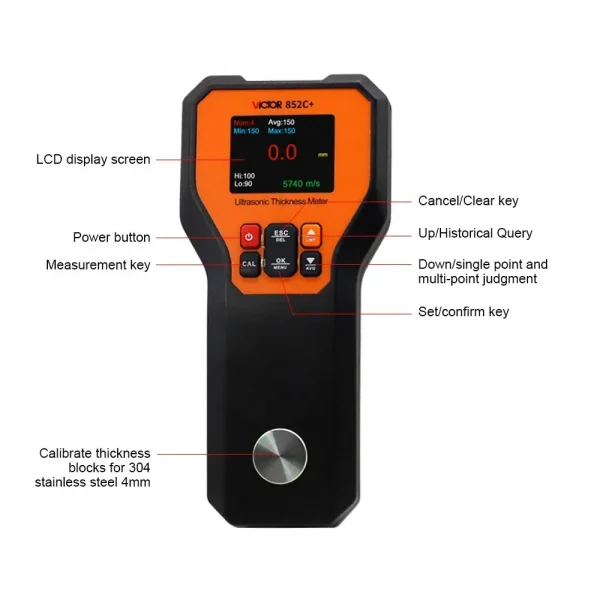

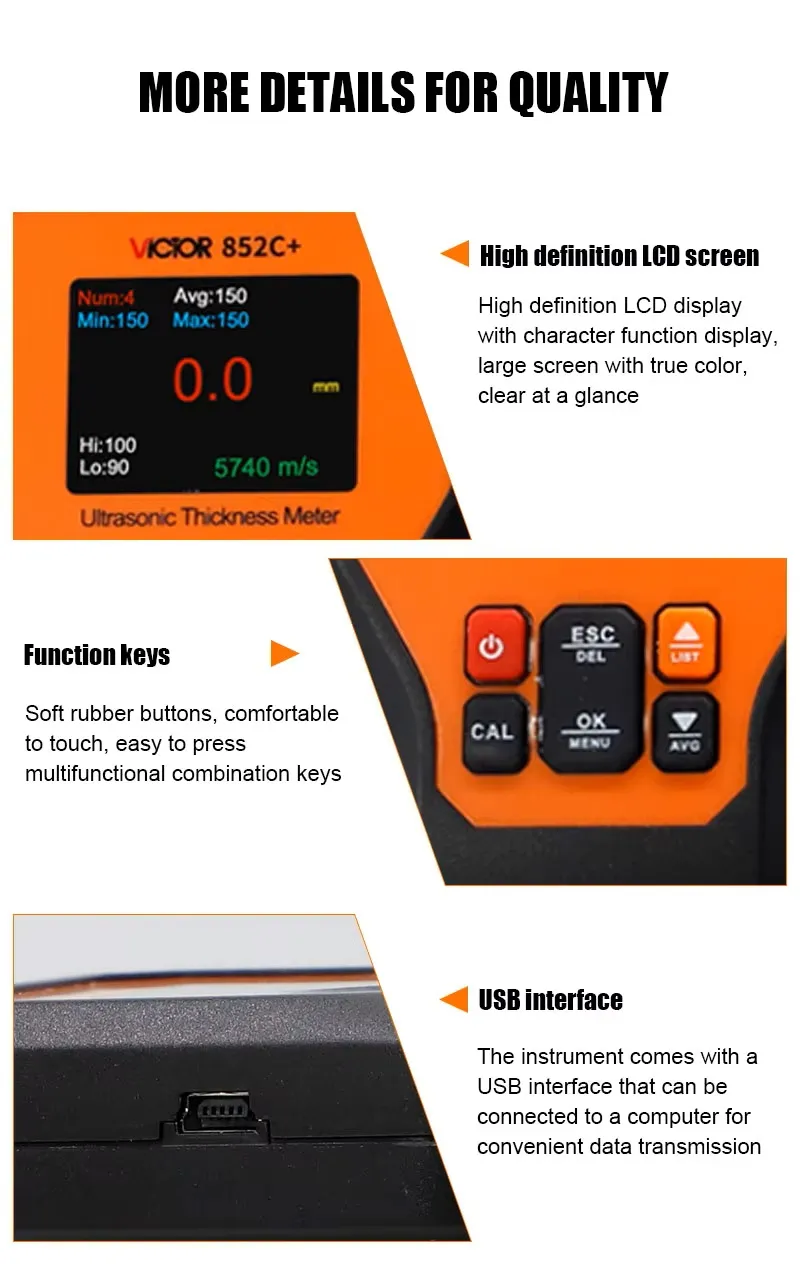

  • User-Friendly Color LCD Screen – The bright, easy‑to‑read LCD color screen displays thickness values, battery status, sound speed, and active settings. Adjustable backlight brightness ensures clear visibility in dimly lit workshops, outdoor pits, or indoor mechanical rooms.

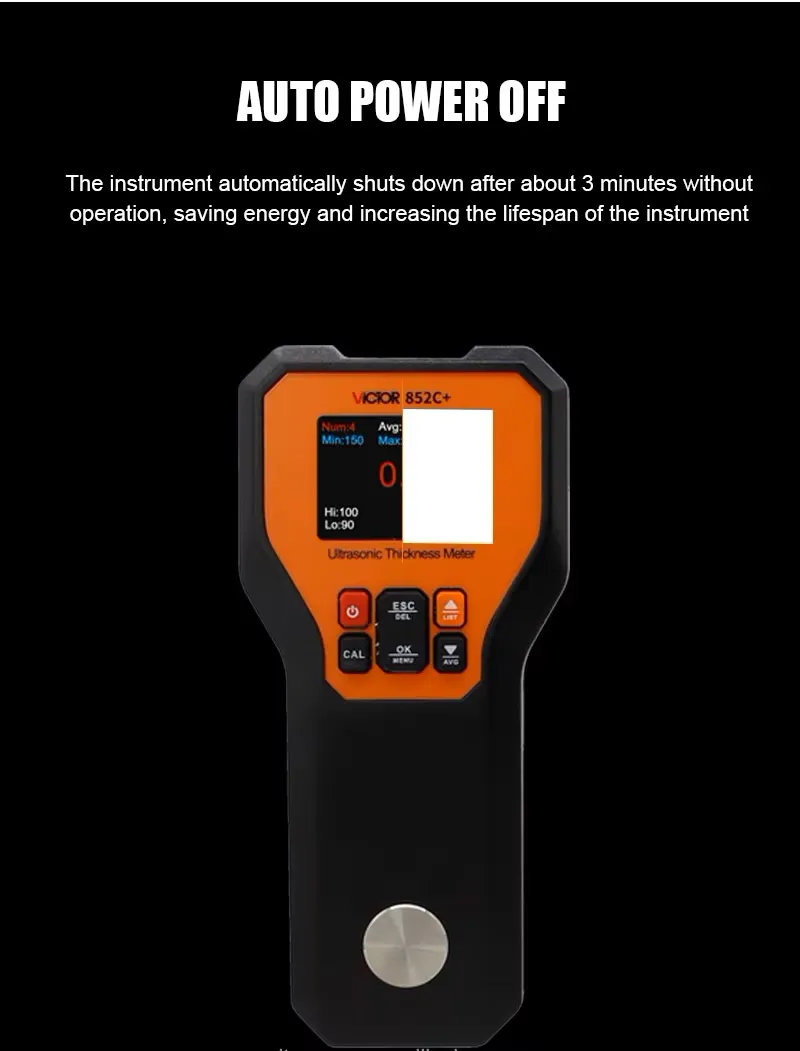

  • Low Power Consumption & Auto Shutdown – Consumes less than 50mA during operation, extending battery life. The ultrasonic thickness meter also features automatic shutdown after periods of inactivity, preventing accidental battery drain when left on between measurements.

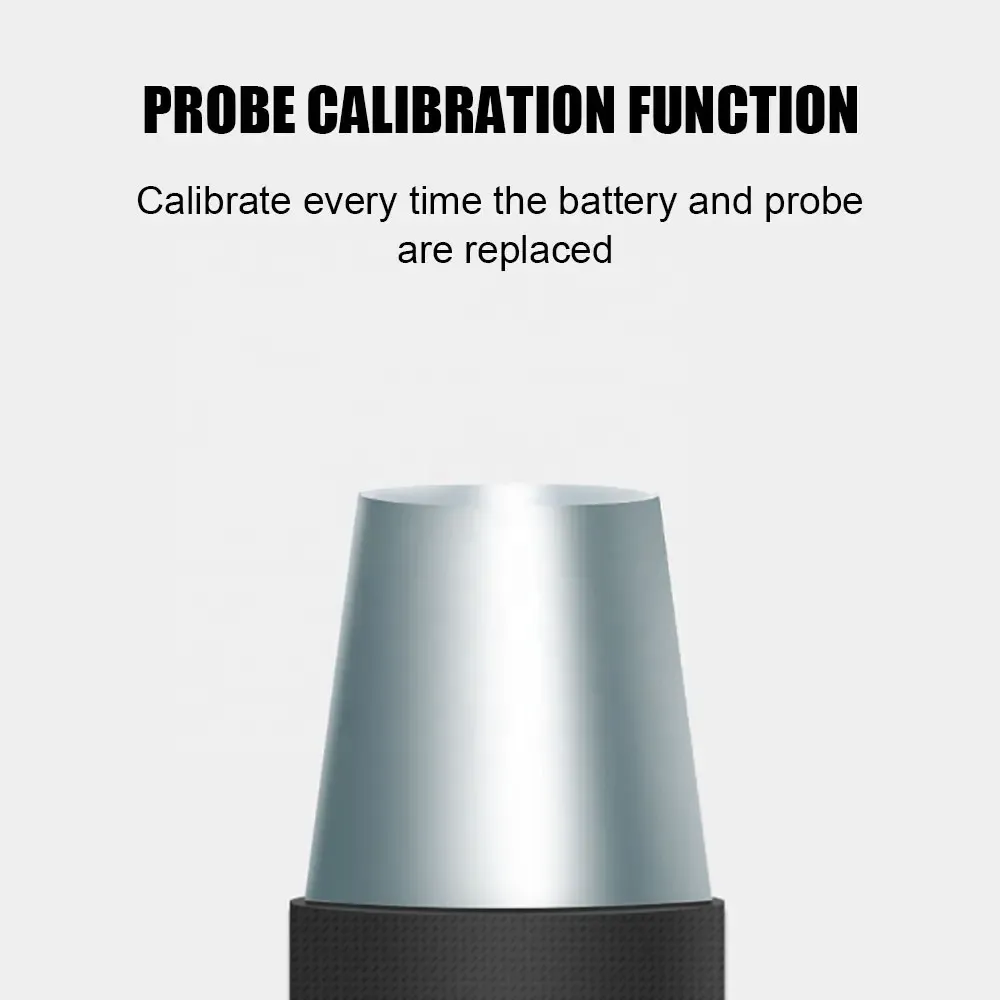

  • Complete Calibration & Reset Tools – Benchmark calibration and factory reset functions allow quick restoration to known reference standards. Even after heavy field use or accidental setting changes, you can trust the 852C+ to return to accurate measurement conditions.
  • Audible Reminder & Unit Switching – Reminder tone settings provide audible feedback for key actions or alarm conditions. Switch between metric and imperial units (mm/inches) instantly, making the ultrasonic thickness meter suitable for international teams and legacy drawings.
  • Robust Design for Conductive Materials – Works flawlessly on metals (steel, aluminum, copper), plastics, ceramics, glass, and hard rubber. As long as the material conducts ultrasound and has two parallel surfaces, this ultrasonic thickness meter delivers reliable data without surface damage.
  • Proven Ultrasonic Pulse-Echo Principle – The probe emits ultrasonic pulses that travel through the material, reflect off the back wall, and return to the sensor. By precisely measuring transit time, the gauge calculates thickness without cutting or sampling—non‑destructive and highly efficient.
  • Portable and Field-Ready – Lightweight and powered by standard batteries, the 852C+ is easy to carry into the field, up scaffolding, or into confined spaces. Its 0°C to 40°C operating range covers most indoor and seasonal outdoor applications.
  • Ideal for Predictive Maintenance & QA/QC – Whether monitoring pipeline corrosion, verifying tank wall thickness, inspecting castings, or measuring plastic extrusions, this ultrasonic thickness meter reduces downtime, prevents failures, and ensures product quality with every reading.
