Victor Magnetic Pole Identification Pen – High-Sensitivity N/S Pole Tester with Red/Green LED Indicators, Compact Design, and Wide Temperature Tolerance for Magnet Surface Detection 862M

$12.99

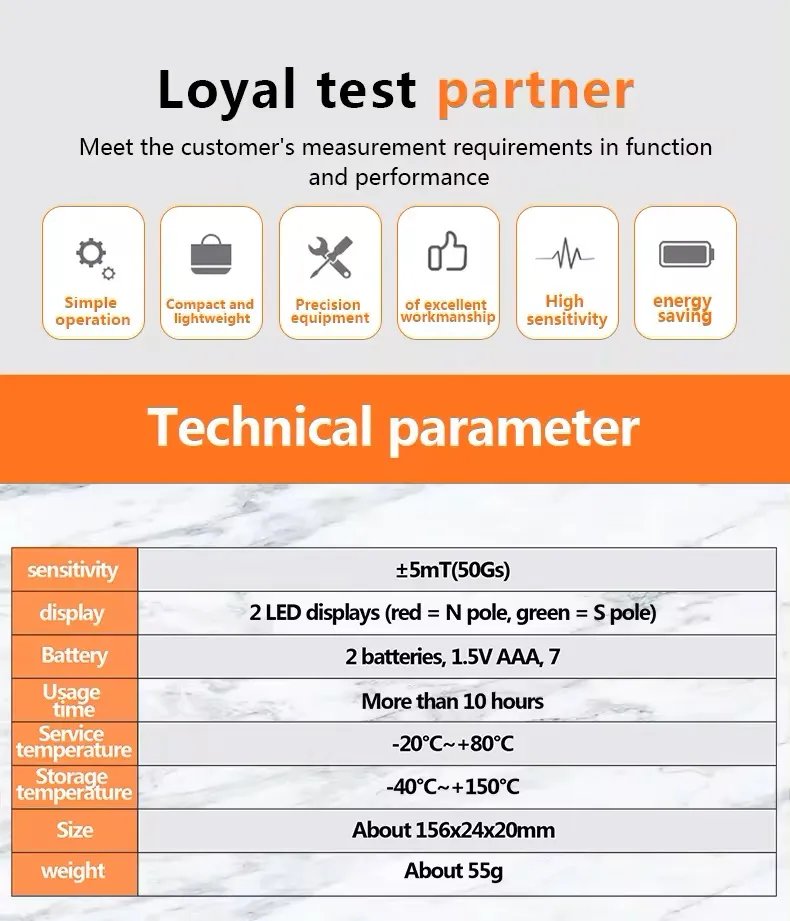

The 862M is a precision magnetic pole identification pen designed for fast, accurate detection of north (N) and south (S) poles on magnet surfaces. With a sensitivity of ±5mT (50Gs), this handheld device uses a red LED to indicate the N pole and a green LED for the S pole, providing instant visual feedback. Simply press and hold the test button, then touch the probe to the magnet surface—the corresponding signal light illuminates immediately. Users can also slide the magnetic pole identification pen along the magnet surface to observe real-time pole transitions, making it ideal for quality control, magnet sorting, and educational demonstrations. Powered by two 1.5V AAA batteries, it offers over 10 hours of continuous use. The pen measures approximately 156×24×20mm and weighs only 55g, ensuring excellent portability. It operates reliably from -20°C to +80°C and can be stored between -40°C and +150°C, making it suitable for both laboratory and industrial environments. With simple one-button operation, a portable pocket clip, and energy‑efficient LED indicators, the 862M magnetic pole identification pen is the loyal test partner for engineers, technicians, and educators who need fast, repeatable magnetic polarity testing.

SKU: 862M Categories: , Brand:
Magnetic Pole Identification Pen
Magnetic Pole Identification Pen



Reviews

There are no reviews yet.

Be the first to review “Victor Magnetic Pole Identification Pen – High-Sensitivity N/S Pole Tester with Red/Green LED Indicators, Compact Design, and Wide Temperature Tolerance for Magnet Surface Detection 862M”

Your email address will not be published. Required fields are marked *

magnetic pole identification pen
magnetic pole identification pen
  • Instant N/S Pole Identification with Dual-Color LEDs – This magnetic pole identification pen features a red LED for north pole and a green LED for south pole. No need to interpret ambiguous meter readings—just touch the probe and see the color. The bright signal lamps are visible even in moderate ambient light, speeding up inspection workflows.
  • High Sensitivity of ±5mT (50Gs) – With sensitivity precisely calibrated to ±5mT, the 862M magnetic pole identification pen detects even relatively weak magnetic fields. This makes it suitable for testing ferrite magnets, neodymium magnets, magnetic assemblies, and demagnetized or partially magnetized surfaces where other pens might fail.

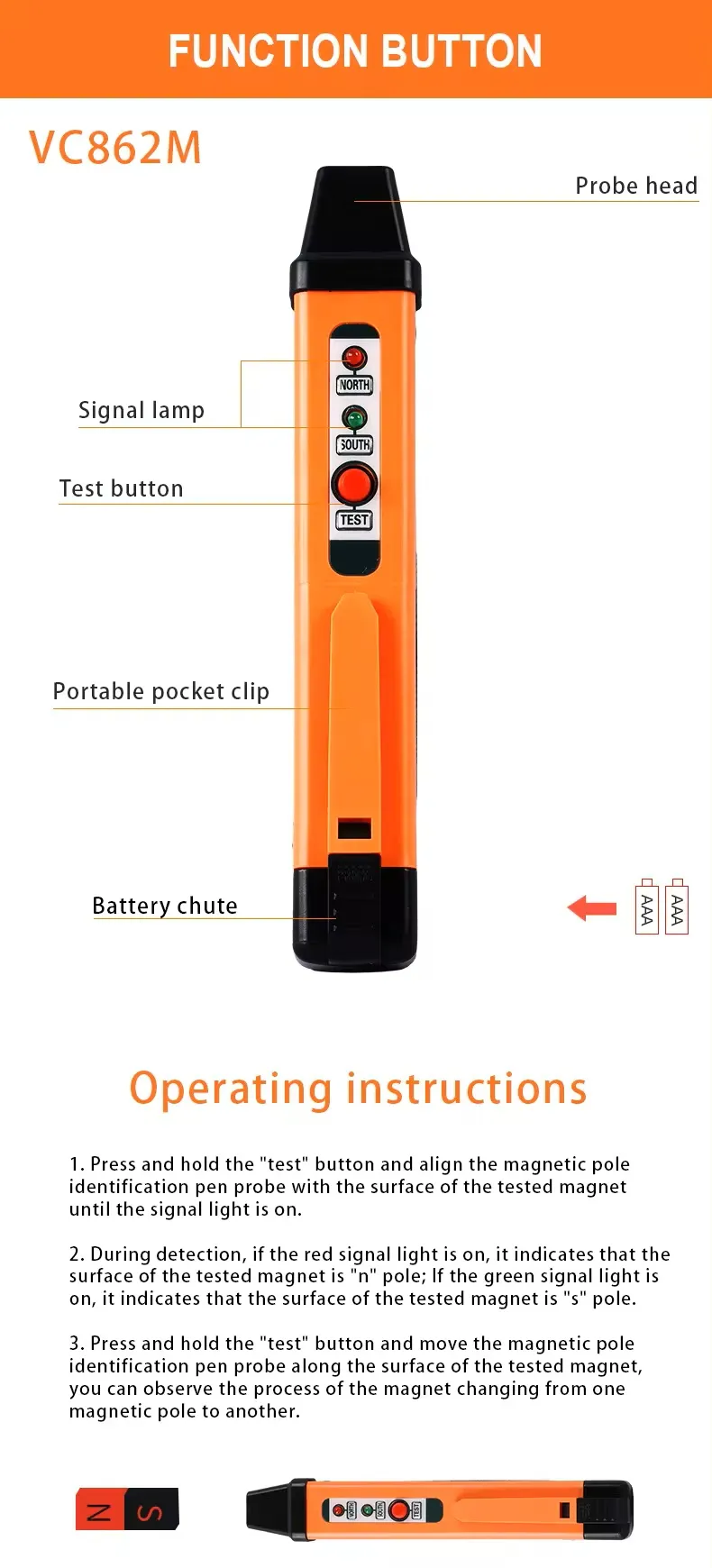

  • Simple One‑Button Operation – Press and hold the “test” button, align the probe with the magnet surface, and the LED tells you the polarity immediately. No complex menus, no calibration steps, and no training required. This straightforward design minimizes operator error and maximizes productivity on sorting lines or incoming inspection stations.
  • Real-Time Pole Transition Observation – Keep the test button pressed and slide the magnetic pole identification pen along the magnet surface. You can visually track the moment the magnetic field flips from N to S or S to N. This unique feature is invaluable for understanding multi‑pole magnet patterns, verifying magnetization fixtures, or teaching magnetic principles in classrooms.

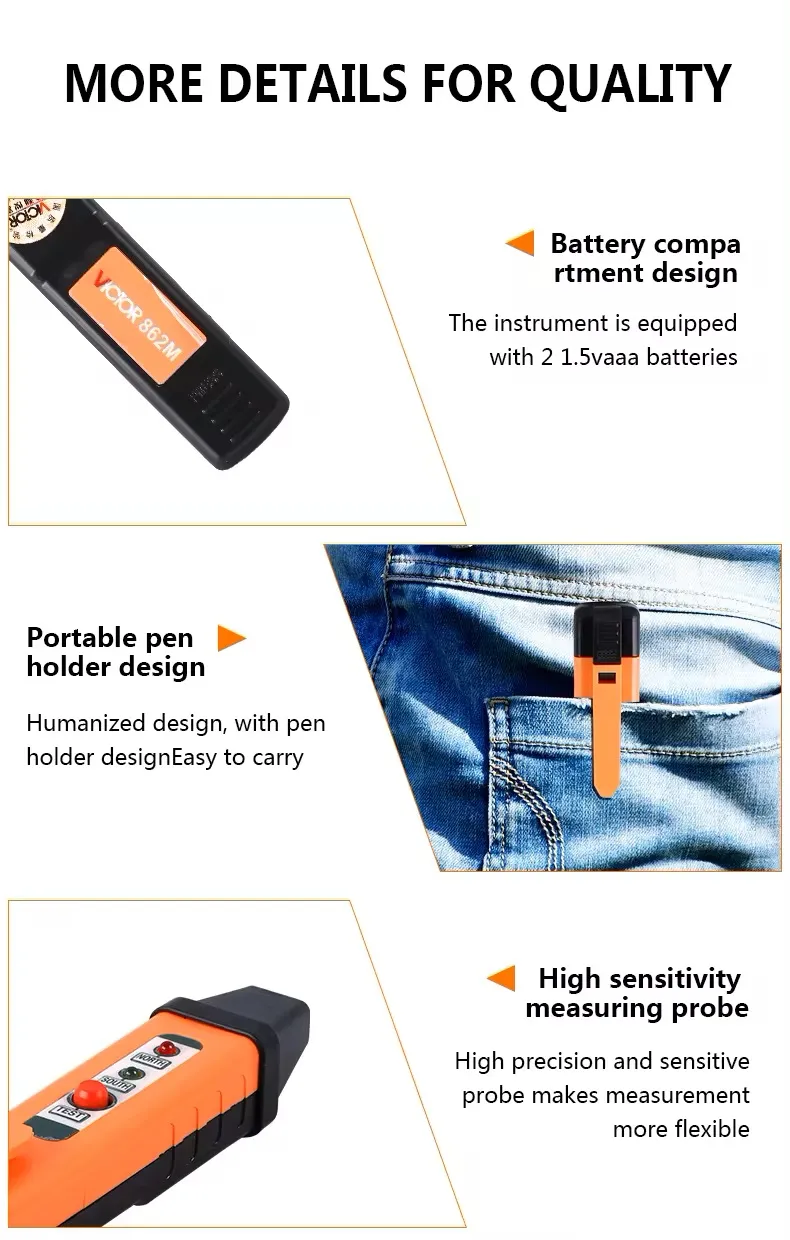

  • Extremely Portable Pocket Design – Measuring just 156×24×20mm and weighing only 55g (about the same as a marker pen), the 862M fits easily into a shirt pocket, tool pouch, or pencil case. A convenient portable pocket clip keeps it secure when not in use. Take this magnetic pole identification pen anywhere—from factory floors to field service sites.
  • Long Battery Life – Over 10 Hours of Use – Powered by two readily available 1.5V AAA batteries, the pen provides more than 10 hours of continuous operation. LED indicators are energy‑efficient, and there is no parasitic drain when the button is not pressed. Keep a spare set in your bag, and the 862M will work through multiple shifts.
  • Exceptional Temperature Tolerance – Operating temperature range: -20°C to +80°C. Storage range: -40°C to +150°C. This magnetic pole identification pen performs reliably in freezing warehouses, hot molding rooms, outdoor winter conditions, and near heat‑treatment equipment. No need to wait for the part to cool down to room temperature.
  • Compact & Lightweight for High-Throughput Testing – When you need to check hundreds of magnets per hour, weight and fatigue matter. At only 55g, the 862M reduces hand strain during repetitive testing. Its slender body fits comfortably between closely packed magnets or inside narrow gaps where bulkier testers cannot reach.
  • Precision Equipment with Excellent Workmanship – Built to meet demanding measurement requirements, the 862M magnetic pole identification pen combines high sensitivity with robust construction. The probe head is durable for repeated contact with magnet surfaces, and the housing resists everyday shop floor wear. This is not a toy—it is a professional tool.
  • No External Power or Cables Required – Fully self‑contained, the pen requires no external power supply, USB connection, or fragile cables. Uncoil it from your pocket, test, and put it away. For field technicians working on magnetic chucks, lifting magnets, or magnetic separators, this magnetic pole identification pen is the ultimate grab‑and‑go solution.
  • Perfect for Quality Control & Magnet Sorting – Use the 862M to verify that incoming magnets are correctly magnetized (N/S orientation according to specifications). Sort mixed batches of magnets by polarity in seconds. Identify defective or weakly magnetized units before they enter assembly. The pen’s consistent ±5mT sensitivity ensures repeatable pass/fail decisions.
  • Great for Educational & Training Environments – In physics labs, vocational schools, or technical training centers, the 862M magnetic pole identification pen makes magnetic polarity tangible. Students can probe different magnet surfaces, see LEDs light up, and slide along to watch poles change. It turns abstract magnetic concepts into hands‑on learning.
  • Ideal for Magnetic Assembly & Installation – When mounting magnetic clamps, holding devices, or sensor targets, correct pole orientation is often critical. The 862M confirms polarity before final assembly, preventing misaligned fields that could reduce holding force or interfere with nearby sensors. A quick test saves rework and material waste.
  • Low Maintenance & High Reliability – With no moving parts, no display glass to crack, and minimal electronics, this magnetic pole identification pen is exceptionally rugged. The battery chute is easy to open for replacement, and the signal lamps are rated for long life. Clean the probe occasionally with a dry cloth, and it will serve for years.
  • Ergonomic Test Button for Continuous Use – The test button is positioned for comfortable one‑handed operation. Press and hold naturally with your index finger while guiding the probe with your thumb and middle finger. Even during extended sorting or scanning tasks, the 862M remains comfortable to hold and operate.
  • Loyal Test Partner for Multiple Industries – From magnet manufacturers and motor repair shops to recycling facilities and university research labs, the 862M magnetic pole identification pen has proven itself as a reliable daily tool. When you need to know north from south—instantly, visually, and without doubt—this pen delivers.
