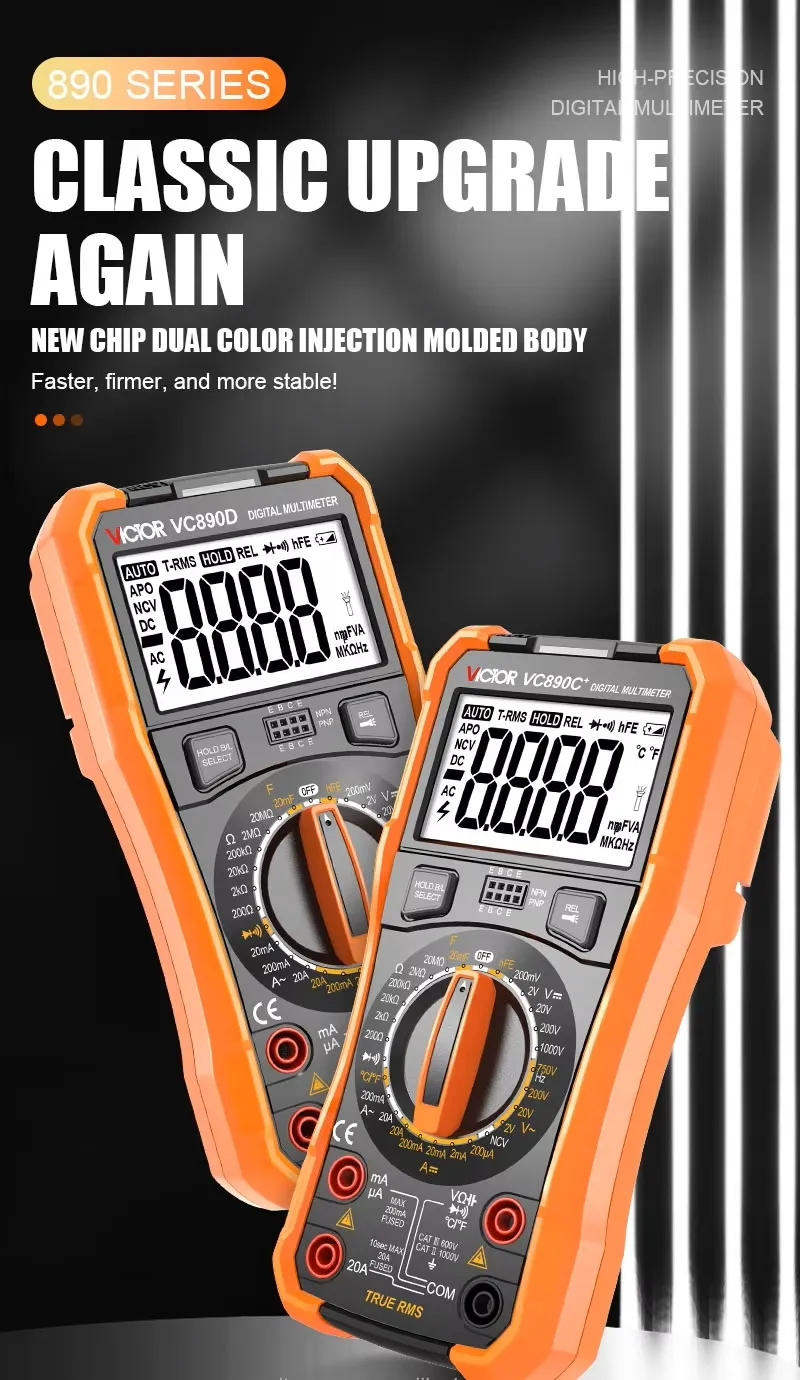

Victor Digital Multimeter VC890C+ – True RMS Professional Multimeter with NCV, Temperature , Capacitance up to 20mF, and Dual Display for AC/DC Voltage, Current, Resistance, Diode & Transistor Testing 890C+ 890D

$11.99

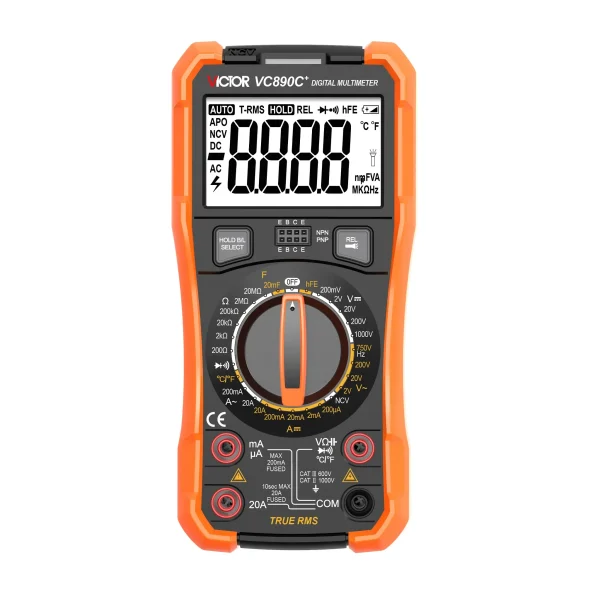

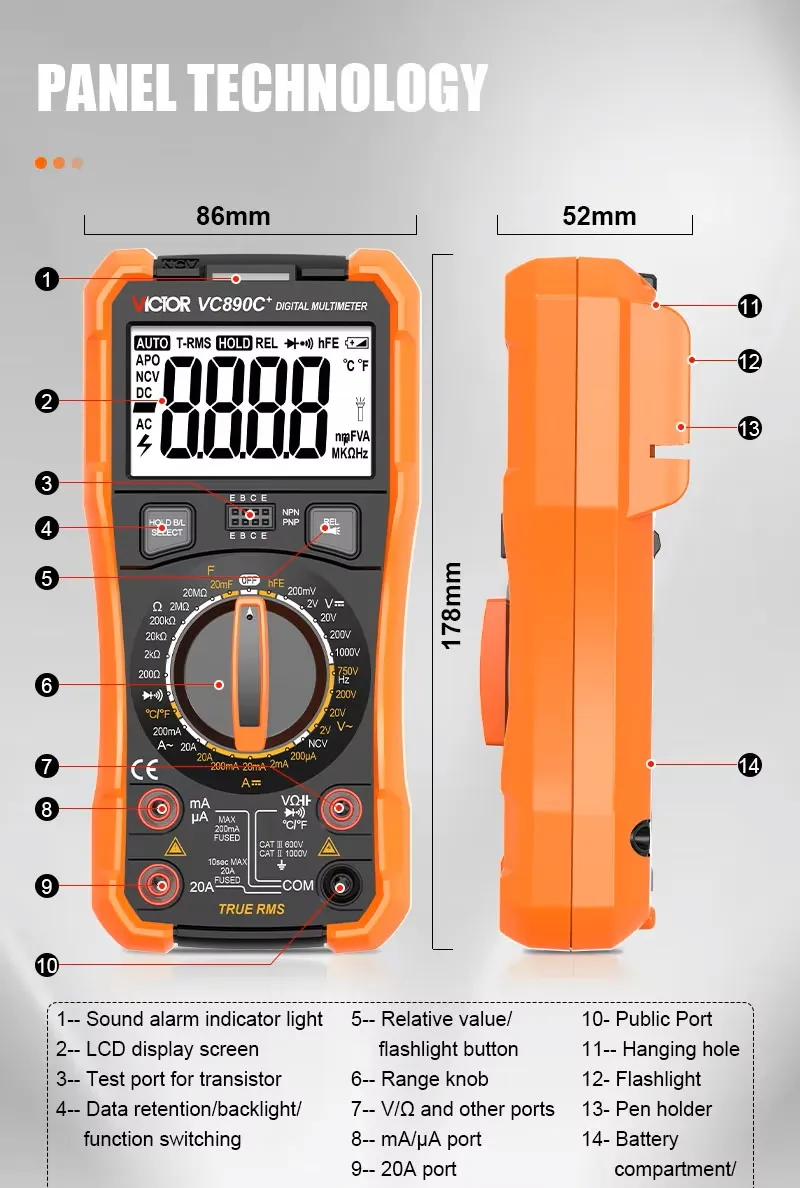

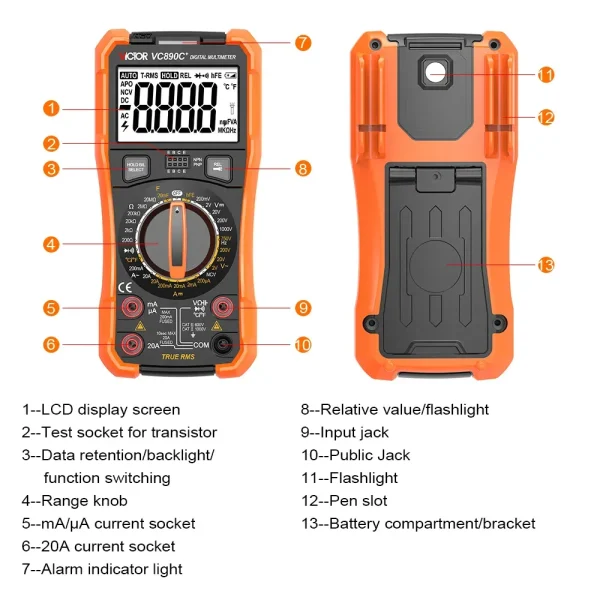

Digital Multimeter VC890C+ is a feature‑rich, true‑effective‑value (True RMS) measuring instrument designed for professional electricians, HVAC technicians, and electronics engineers. It measures DC voltage up to 1000V with ±(0.5%+3) accuracy, AC voltage up to 750V, DC current up to 20A, resistance up to 20MΩ, capacitance from 6nF to 20mF, and temperature from -20°C to 1000°C. The 3½‑digit LCD display (maximum 1999 counts) updates three times per second, with over‑range “OL” indication. Special features include NCV (non‑contact voltage) detection, a flashlight for dark panel work, sound alarm light, data hold, relative value measurement, backlight display, and auto power‑off after 15 minutes. The meter also supports diode and transistor (triode) testing. Powered by two AA batteries, it measures 178×86×52mm and weighs 335g. Operating conditions range from 0°C to 40°C (<75% RH) and storage from -20°C to 60°C (<85% RH). Whether you are troubleshooting industrial control panels, repairing household appliances, or teaching electronics fundamentals, the Digital Multimeter VC890C+ delivers reliable, safe, and versatile performance.

SKU: 890C+/890D Categories: , Brand:



Digital Multimeter VC890C+
Digital Multimeter VC890C+



Reviews

There are no reviews yet.

Be the first to review “Victor Digital Multimeter VC890C+ – True RMS Professional Multimeter with NCV, Temperature , Capacitance up to 20mF, and Dual Display for AC/DC Voltage, Current, Resistance, Diode & Transistor Testing 890C+ 890D”

Your email address will not be published. Required fields are marked *

Digital Multimeter VC890C+
Digital Multimeter VC890C+
  • True RMS (True Effective Value) for Accurate AC Measurement – Unlike average‑responding meters, the Digital Multimeter VC890C+ uses True RMS conversion to accurately measure distorted sine waves, variable frequency drives, and non‑linear loads. This is essential for modern industrial electronics where waveforms are rarely perfect.

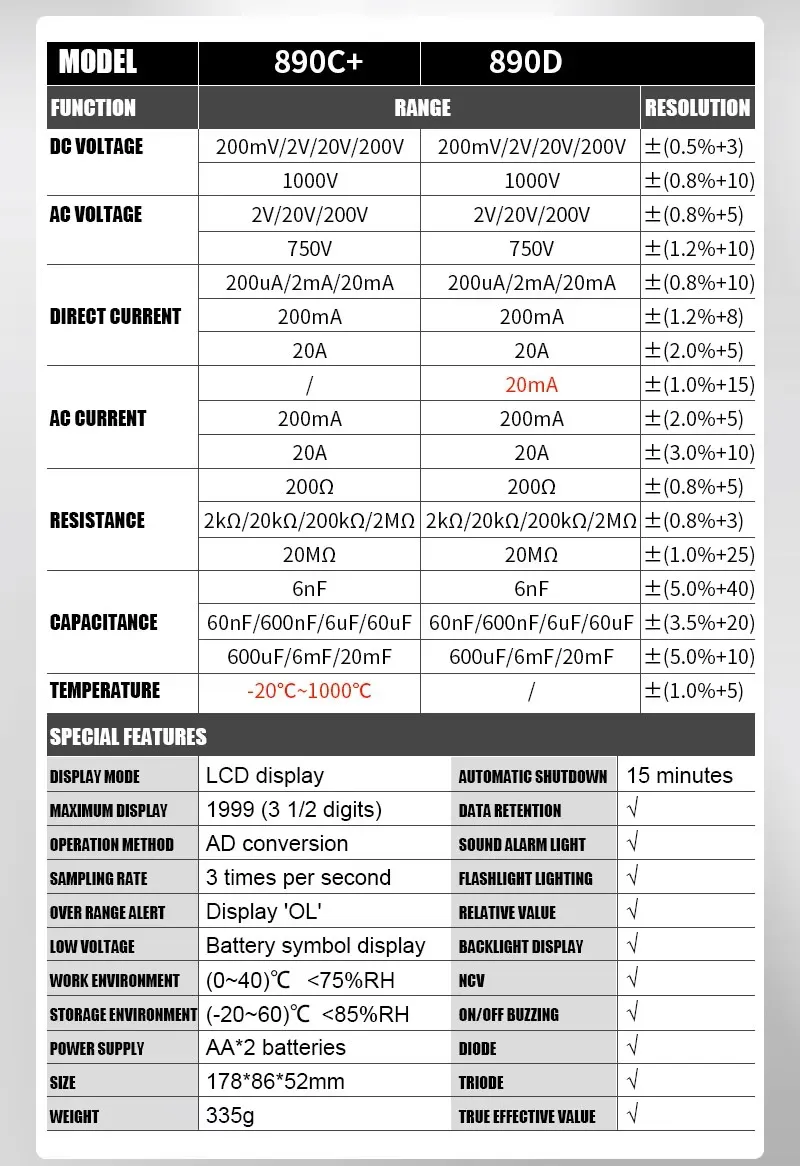

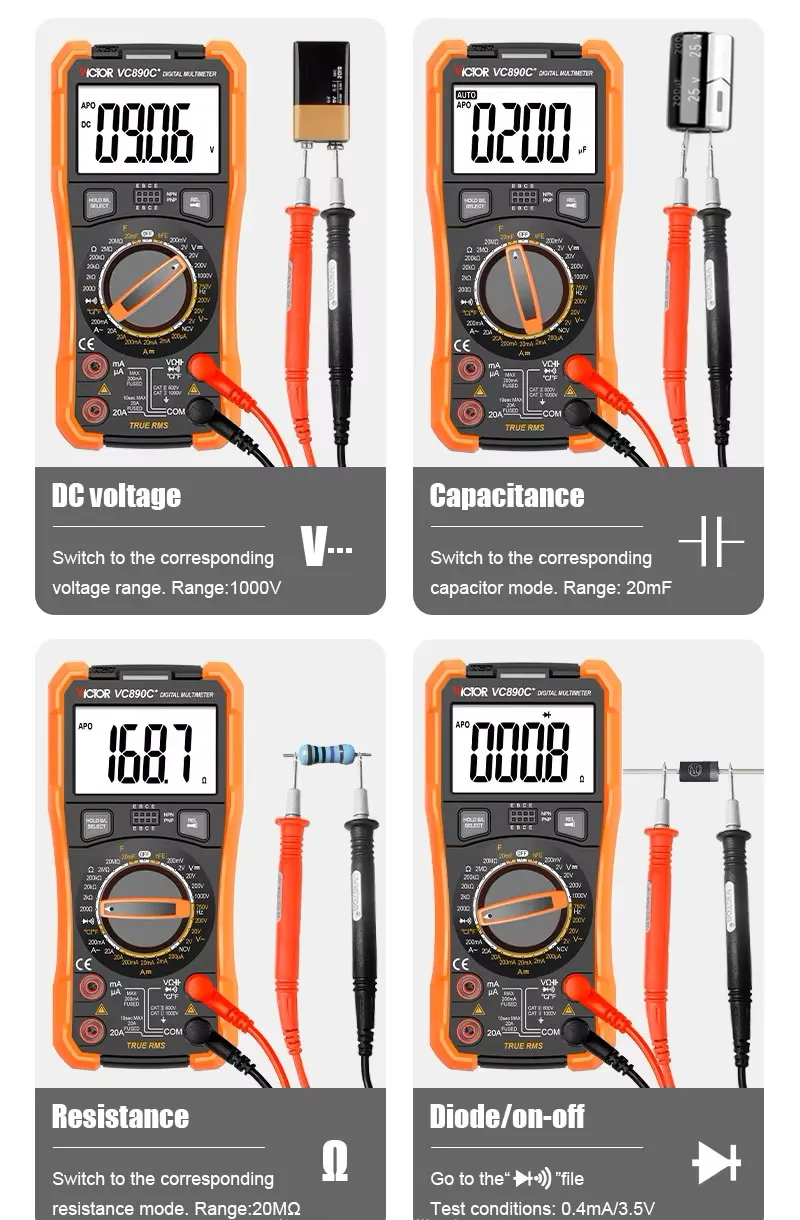

  • Wide Measurement Ranges Across All Functions – DC voltage: 200mV to 1000V; AC voltage: 2V to 750V; DC current: 200µA to 20A; AC current: 20mA to 20A (model‑dependent); resistance: 200Ω to 20MΩ; capacitance: 6nF to 20mF. This Digital Multimeter VC890C+ handles everything from sensitive low‑power circuits to high‑energy industrial systems.
  • High Accuracy with Low Error Specifications – Basic DC voltage accuracy of ±(0.5%+3) and AC voltage accuracy of ±(0.8%+5) ensure confidence in your readings. Resistance accuracy reaches ±(0.8%+5) on most ranges. The Digital Multimeter VC890C+ provides laboratory‑grade performance in a field‑ready package.
  • Built‑In Temperature Measurement (-20°C to 1000°C) – The VC890C+ includes a temperature function (thermocouple probe not shown but supported), making it an all‑in‑one tool for HVAC troubleshooting, engine diagnostics, refrigeration maintenance, and process monitoring. No need to carry a separate thermometer.

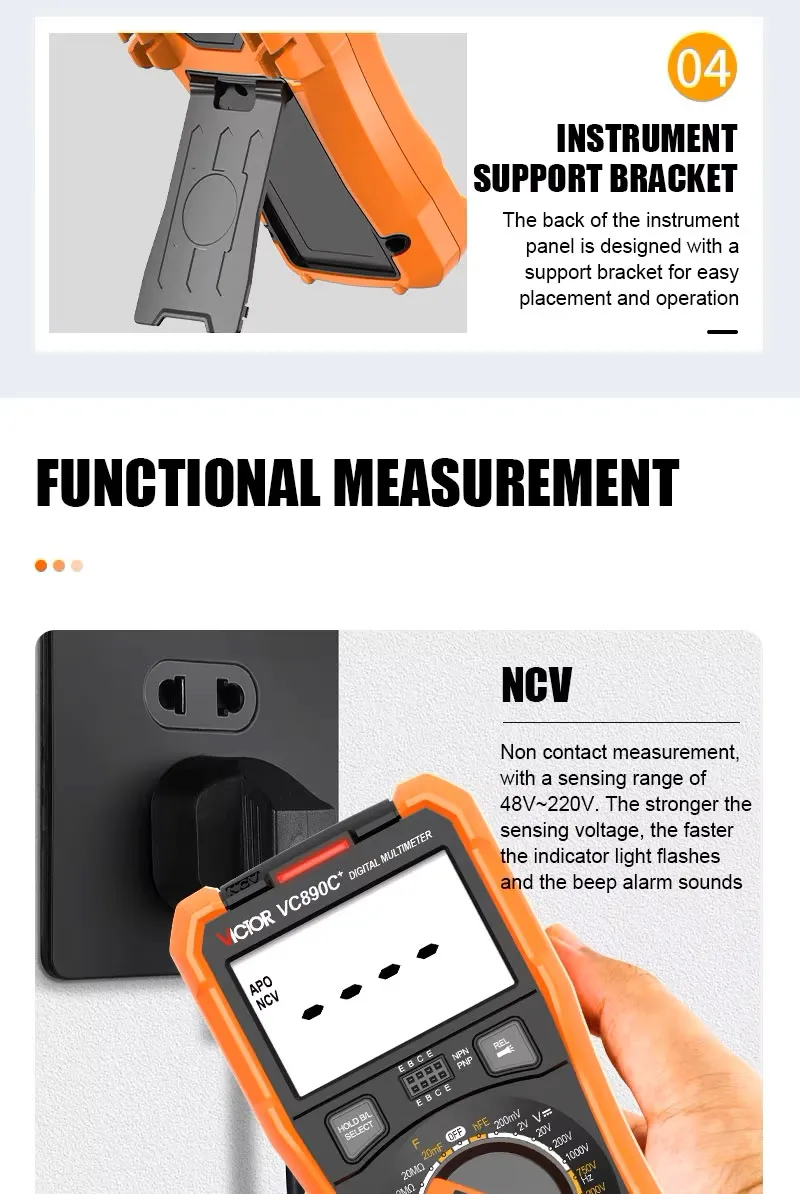

  • Non‑Contact Voltage (NCV) Detection – Safely check for live AC voltage without touching bare conductors. The Digital Multimeter VC890C+ emits an audible and visual alarm when the NCV sensor detects an electric field. This speeds up preliminary checks and enhances safety when working inside crowded junction boxes.

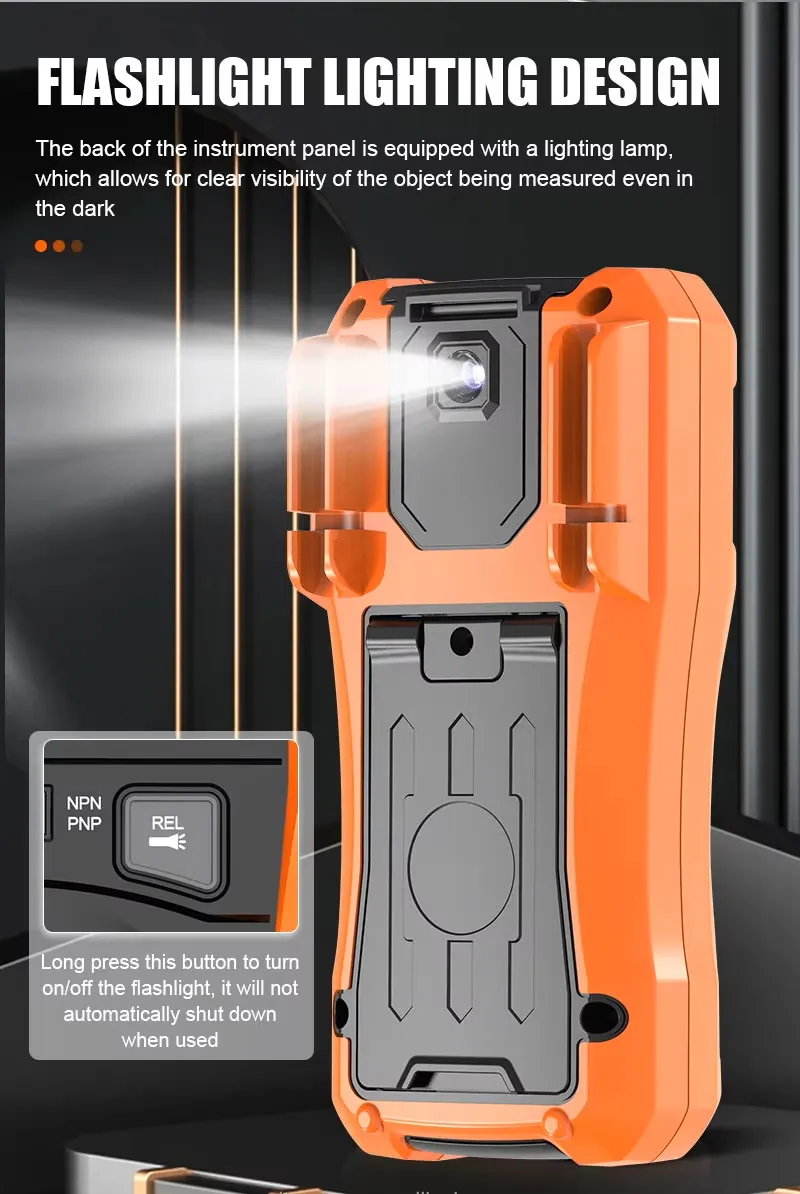

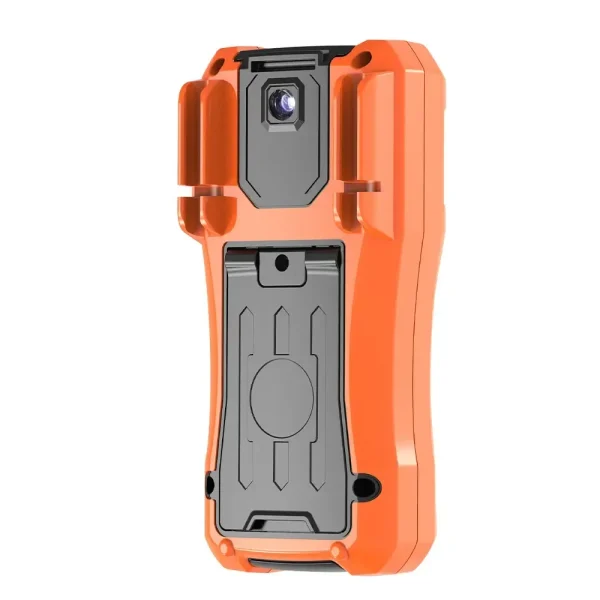

  • Flashlight Lighting for Dark Work Areas – A built‑in LED flashlight illuminates the panel, wire labels, and fuse boxes when working in dimly lit substations, ceiling voids, or equipment cabinets. Combined with the backlit display, the Digital Multimeter VC890C+ ensures you never guess a reading due to poor lighting.

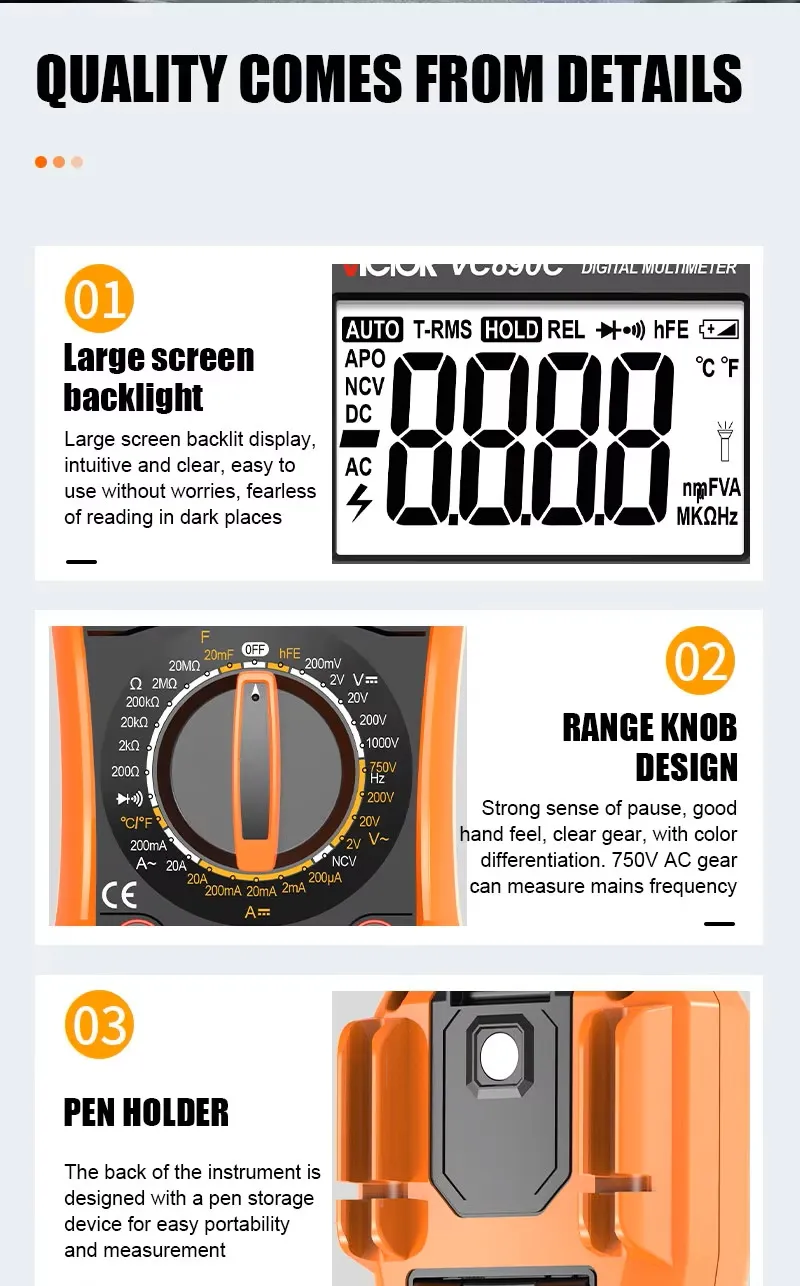

  • Data Hold, Relative Value, and Backlight Display – Freeze a reading with data hold to record it safely away from live parts. Use relative value mode to zero out test lead resistance or offset capacitance. The bright backlight keeps the LCD readable in low‑light conditions. These features make the Digital Multimeter VC890C+ efficient and user‑friendly.

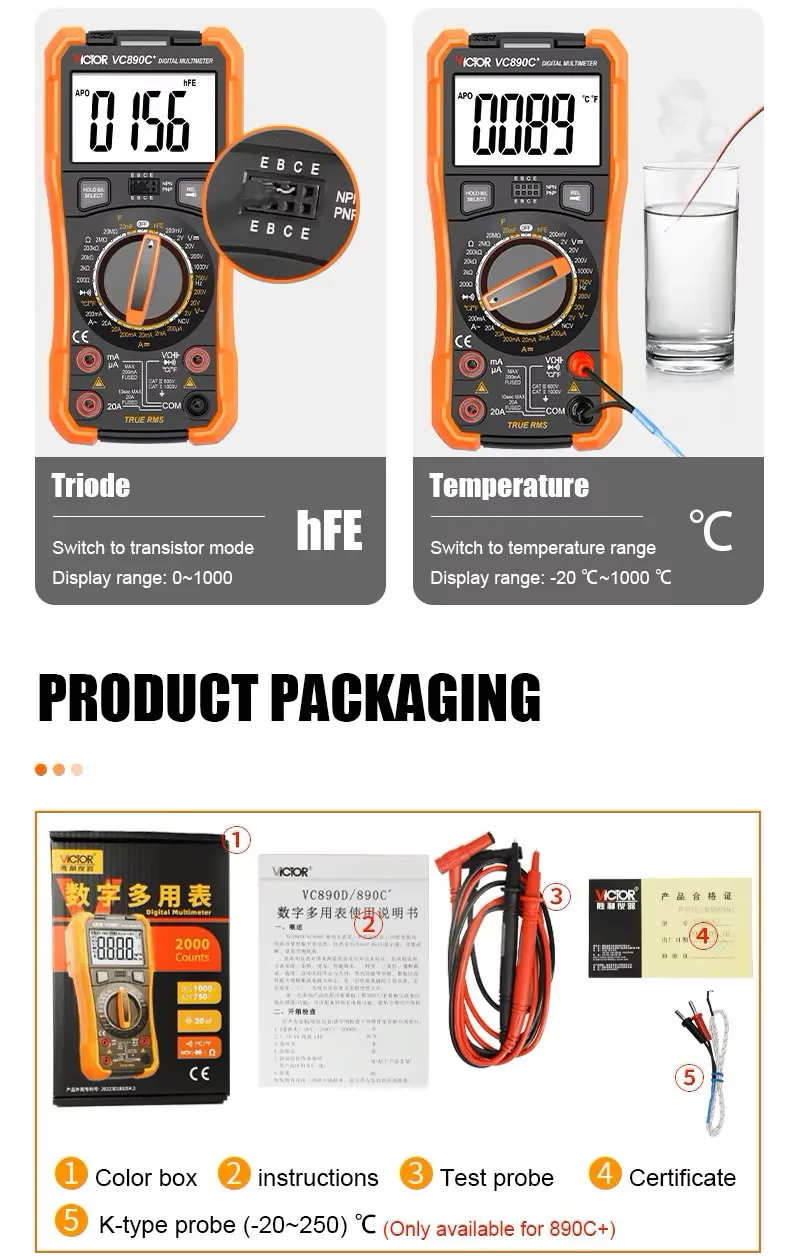

  • Diode & Triode (Transistor) Testing – Quickly check diode forward voltage drop and identify transistor pinouts (NPN/PNP) and gain. This is invaluable for board‑level repair, component sorting, and electronics education. The Digital Multimeter VC890C+ replaces separate component testers in many basic troubleshooting scenarios.
  • Capacitance Measurement from 6nF to 20mF – Test motor start/run capacitors, filter capacitors in power supplies, and timing capacitors in control circuits. With ranges covering 6nF, 60nF, 600nF, 6µF, 60µF, 600µF, 6mF, and 20mF, the Digital Multimeter VC890C+ handles both small ceramic discs and large electrolytic cans.
  • Sound Alarm Light for Continuity & Alerts – The buzzer sounds immediately when continuity is detected, allowing eyes‑free testing of fuses, cables, and switch contacts. An over‑range alert shows “OL” on the display, and a low battery symbol appears when the two AA batteries need replacement.
  • Auto Power‑Off After 15 Minutes – Forgot to turn off the meter? The Digital Multimeter VC890C+ automatically shuts down after 15 minutes of inactivity to preserve battery life. This is especially useful in field service where you may move quickly between tasks without remembering to power down.
  • Sampling Rate of 3 Times per Second – The display updates three times per second, providing a smooth, responsive reading when probing fluctuating signals or adjusting potentiometers. You won’t miss brief events or overshoot your target value.

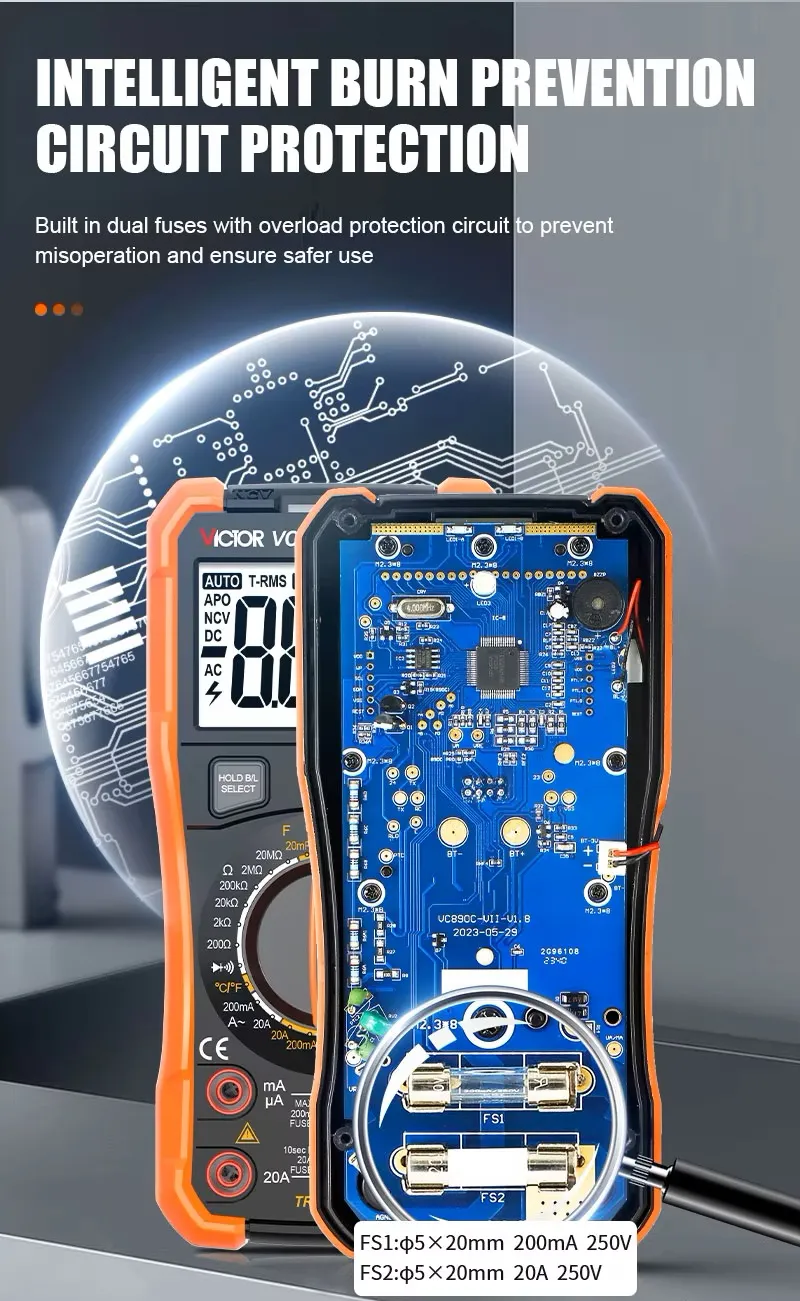

  • Over‑Range and Input Protection – The “OL” (overload) indication prevents misinterpretation when exceeding the selected range. The Digital Multimeter VC890C+ is designed for CAT II/III environments (implied by safety standards common to this class of meter), giving you confidence when measuring higher energy circuits.

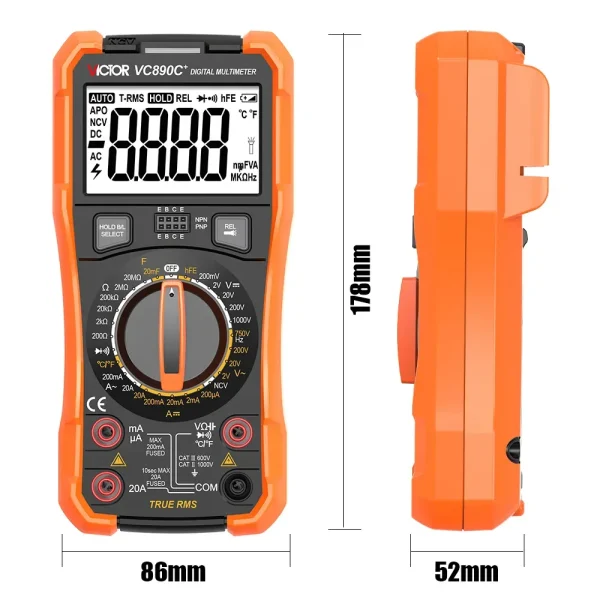

  • Portable, Ergonomic, and Well‑Weighted – At 178×86×52mm and 335g, the Digital Multimeter VC890C+ feels solid but not heavy. The size fits comfortably in one hand, with all controls accessible by thumb. The included holster (implied by standard multimeter design) adds drop protection.
  • Wide Operating and Storage Temperatures – Operates from 0°C to 40°C (<75% RH) and stores from -20°C to 60°C (<85% RH). Leave the Digital Multimeter VC890C+ in a hot vehicle or cold toolbox—it will be ready when you are.

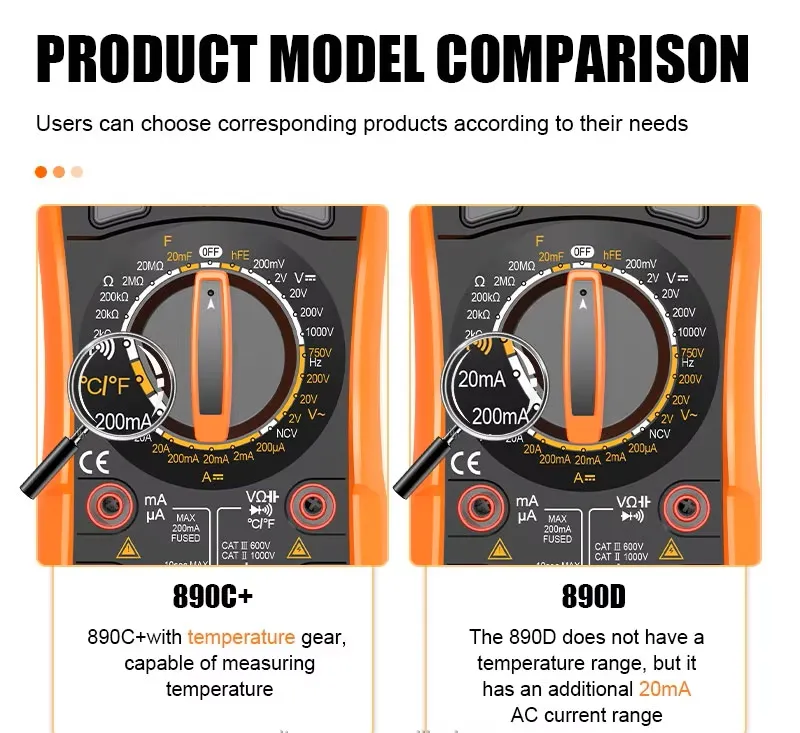

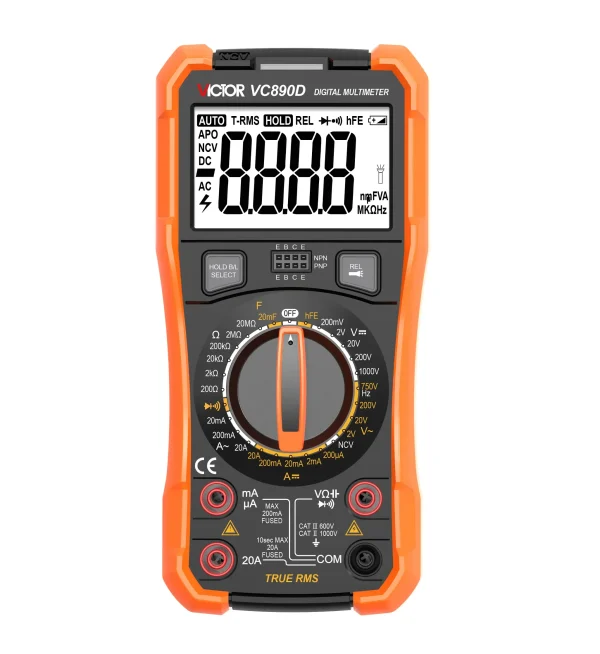

  • Dual Model for Specific Needs – 890C+ vs 890D – The 890C+ includes temperature measurement and AC current ranges, while the 890D offers a slightly different AC current set. Choose the Digital Multimeter VC890C+ if you need thermocouple temperature capability and broader AC current flexibility.
  • Great for Education, Maintenance, and DIY – Whether you are teaching students how to measure voltage, diagnosing a failed water heater, or building a hobby project, the Digital Multimeter VC890C+ provides the functions you need without overwhelming complexity. The clear LCD, rotary switch, and dedicated function keys make operation intuitive.
  • Reliable Power with Standard AA Batteries – Uses two easily available AA batteries (not the less common 9V or button cells). When the low battery symbol appears, replacements are found in any convenience store. The Digital Multimeter VC890C+ keeps you working, not searching for specialty batteries.
